D-Link DWL-2600AP Administrator's Guide

Unied Access Point Administrator’s Guide
Unied Access Point Administrator’s Guide
Page 31
January 2015
Section 3 - Viewing Access Point Status
appear in the Known AP List.
Viewing Managed AP DHCP Information
The UAP can learn about D-Link Unied Wireless Switches on the network through DHCP responses to its initial
DHCP request. The Managed AP DHCP page displays the DNS names or IP addresses of up to four D-Link Unied
Wireless Switches that the AP learned about from a DHCP server on your network.

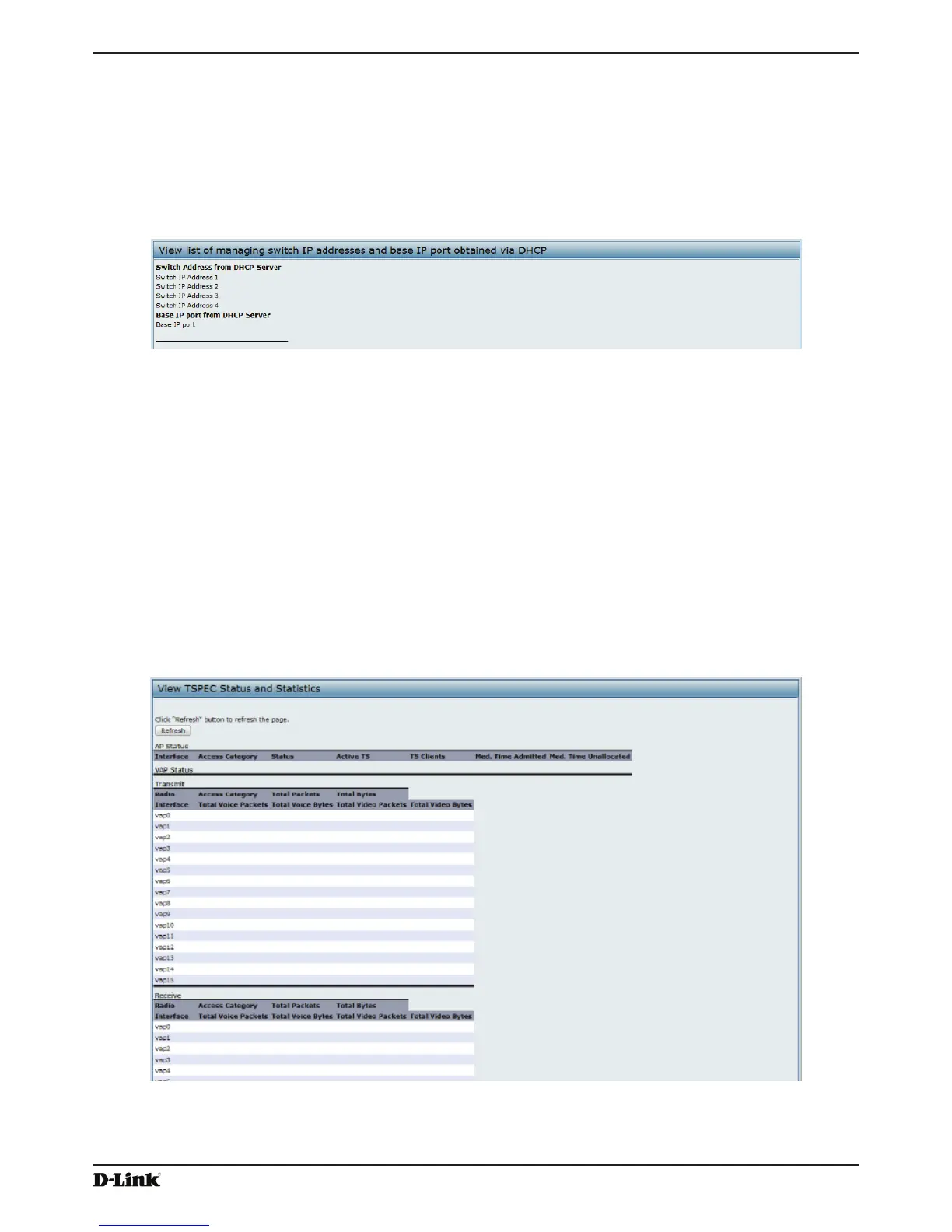

Figure 11 - Managed AP DHCP Information
For information about how to congure a DHCP server to respond to AP DHCP requests with the switch IP address
information, see the User Manual for the switch.
Viewing TSPEC Status and Statistics Information
The TSPEC Status and Statistics page provides:
•) Summary information about TSPEC sessions by radio
•) Summary information about TSPEC sessions by VAP
•) Real-time transmit and receive statistics for the TSPEC VAPs on all radio interfaces.
All of the transmit and receive statistics shown are totals since the AP was last started. If you reboot the AP, these
gures indicate transmit and receive totals since the reboot.
To view TSPEC status and statistics, click the TSPEC Status and Statistics tab.
Figure 12 - Viewing TSPEC Status and Statistics
The following table describes the information provided on TSPEC Status and Statistics page.

D-Link DWL-2600AP Specifications

General

Networking standards	IEEE 802.3af
Ethernet LAN data rates	10, 100 Mbit/s
Maximum data transfer rate	300 Mbit/s
Internal	Yes
LED indicators	Power, Stand-by, Status, WAN, WLAN
WAN connection	Ethernet (RJ-45)
Ethernet LAN (RJ-45) ports	1
Security algorithms	WEP, WPA, WPA2
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Width	160 mm
Height	45 mm
Weight	240 g
Dimensions (WxDxH)	160 x 160 x 45 mm
