D-Link DWL-2600AP Administrator's Guide

Unied Access Point Administrator’s Guide
Unied Access Point Administrator’s Guide
Page 122
January 2015
Appendix B - Conguration Examples
•) Wild Card Mask: 0.0.0.255
•) Source Port: Select the option
•) Select From List (Source Port): www
7.) Click Apply to save the rule.

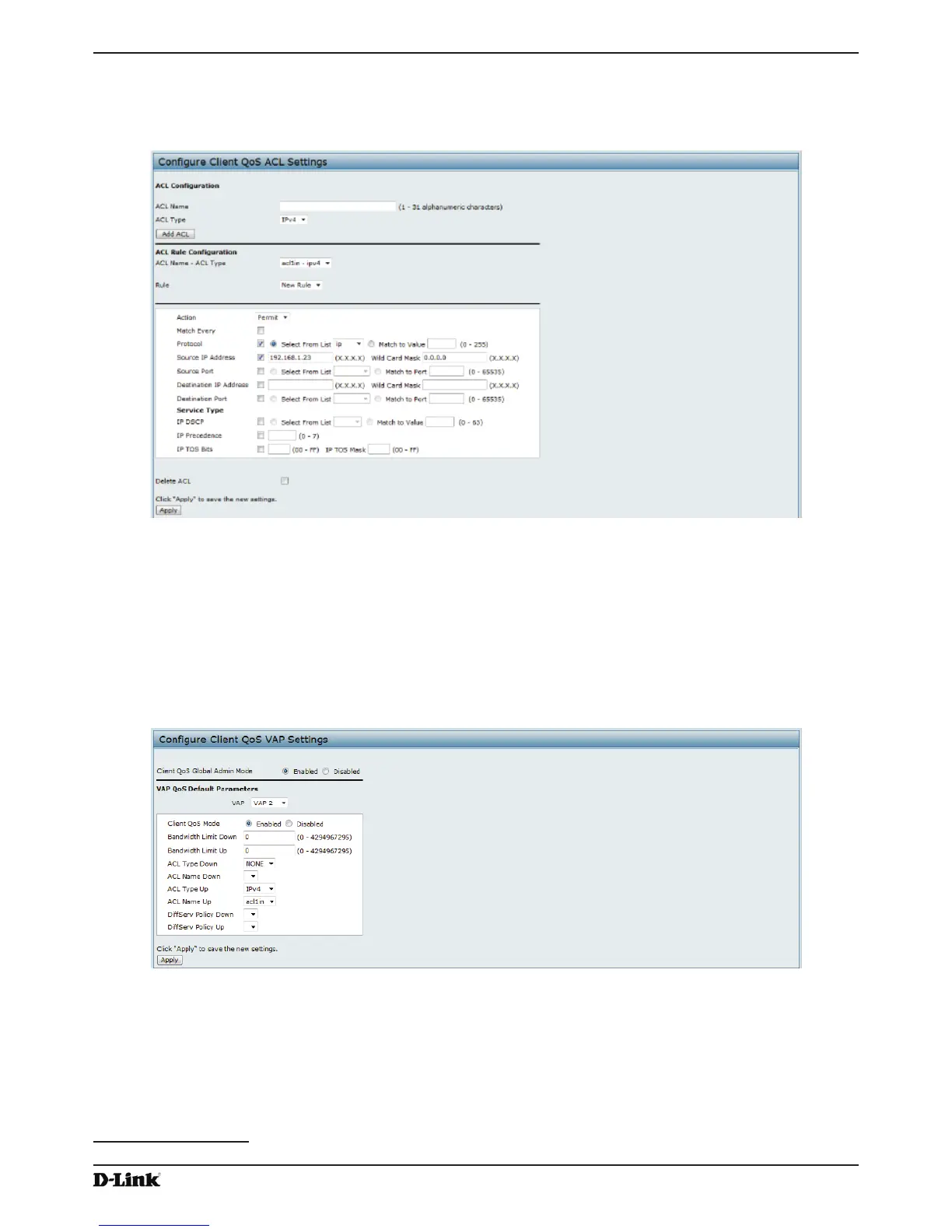

Figure 76 - Conguring QoS by Using the Web Interface (Rule2)
8.) Select New Rule from the Rule menu and create another rule with the following settings:
•) Action: Permit
•) Match Every: Clear the option
•) Protocol: IP
•) Address: 192.168.1.23
•) Wild Card Mask: 0.0.0.0
9.) Click Apply to save the rule.
10.) Navigate to the Client QoS > VAP QoS Parameters page.
Figure 77 - Conguring QoS by Using the Web Interface (VAP QoS Parameters)
11.) For the Client QoS Global Admin Mode option, select Enabled.
12.) From the VAP menu, select VAP 2.
13.) Select the Enabled option for Client QoS Mode.
14.) From the ACL Type Up menu, select IPv4.
15.) From the ACL Name Up menu, select acl1in.
16.) Click Apply to update the AP with the QoS settings.
DiffServ Conguration

D-Link DWL-2600AP Specifications

General

Networking standards	IEEE 802.3af
Ethernet LAN data rates	10, 100 Mbit/s
Maximum data transfer rate	300 Mbit/s
Internal	Yes
LED indicators	Power, Stand-by, Status, WAN, WLAN
WAN connection	Ethernet (RJ-45)
Ethernet LAN (RJ-45) ports	1
Security algorithms	WEP, WPA, WPA2
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Width	160 mm
Height	45 mm
Weight	240 g
Dimensions (WxDxH)	160 x 160 x 45 mm
