SiBE18-821_C RA Indoor Unit
Operation Manual 169
3. RA Indoor Unit
3.1 FTXG-J, CTXG-J Series - ARC466A1

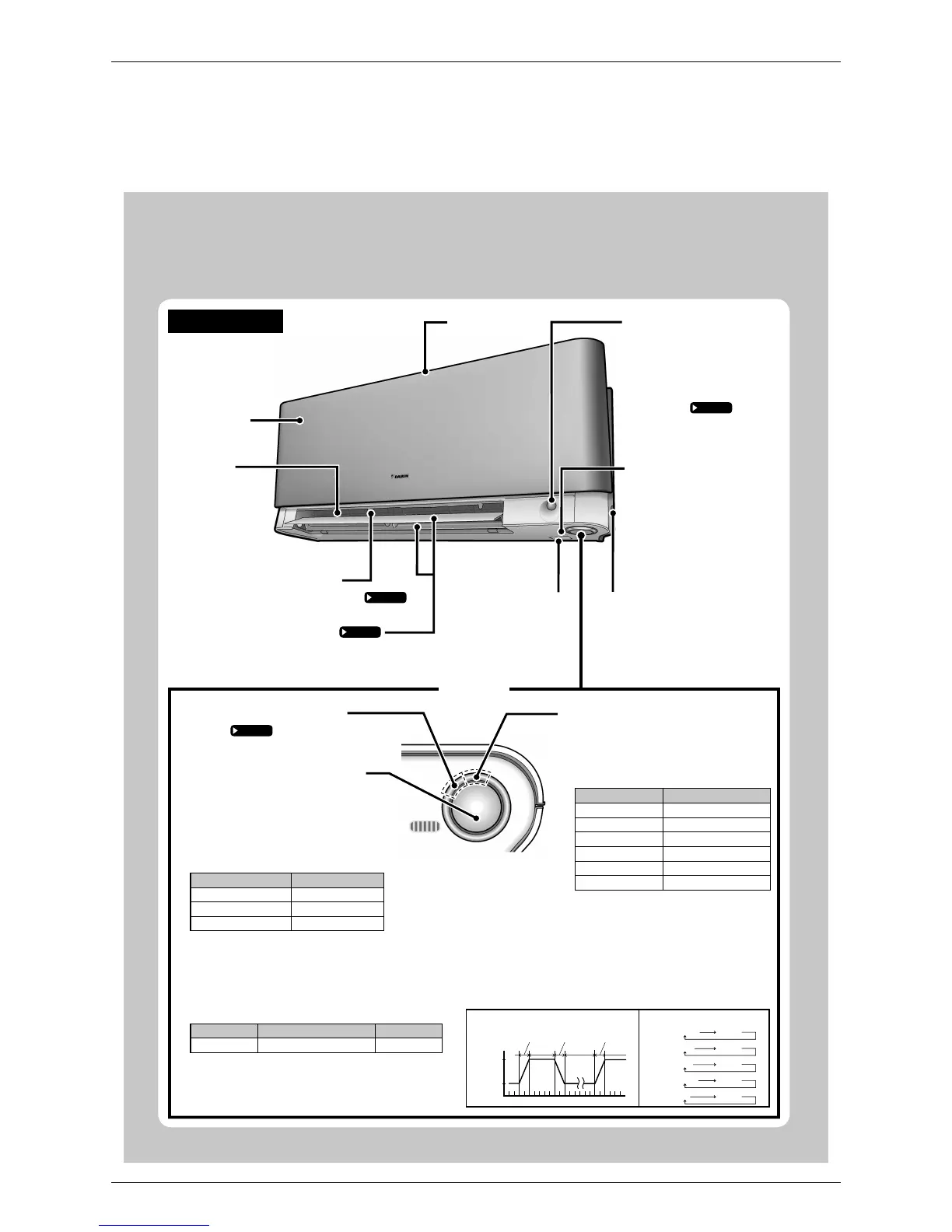

3.1.1 Name of Parts
Display
Name of Parts
Appearance of the indoor unit may differ.
Air inlet
Front panel
Air outlet
Louvers (vertical blades)
The louvers are inside of the air outlet.
Page 13
Page 16
Flaps (horizontal blades)
Page 13
Page 16
Signal receiver
Case Sound type
Operation start beep-beep
Setting changed beep
Operation stop long beep
Indoor unit ON/OFF switch
Mode Temperature setting Airflow rate
AUTO 25 C AUTO
TIMER lamp
TIMER lamp colour
TIMER lamp colour : For COOL
Orange
Blue
3 min.
5 sec. 5 sec.
2 sec.
2 sec. 2 sec.
Green OrangeDRY :
COOL :
Blue Orange
HEAT :
Red Orange
FAN :
White Orange
Stop :
Off Orange
Panel tab
Multi-monitor lamp
Operation Multi-monitor lamp
AUTO Red/Blue
DRY Green
COOL Blue
HEAT Red
FAN White
TIMER Orange
INTELLIGENT EYE
sensor
It detects the movements of
people and automatically
switches between normal
operation and energy saving
operation.
Room temperature
sensor
It detects the air temperature
around the unit.
Model name
plate
INTELLIGENT EYE lamp
(green)
Signal receiver and Indoor
unit ON/OFF switch
It receives signals from the remote
controller.
When the unit receives a signal, you
will hear a beep sound.
This switch is useful when the remote controller is
missing.
Press this switch once to start operation.
Press once again to stop it.
The operation mode refer to the following table.
Multi-monitor lamp and
TIMER lamp
The lamp colour changes according to
the operation.
When operation by timer has been set, the multi-monitor lamp
periodically changes to orange. After lighting orange for about
5 seconds, it returns to the colour of the operation mode.
The multi-monitor lamp will turn orange on and off in cyclic
manner while the air conditioner is not in operation.
Indoor Unit
5
