SiBE18-821_C Outdoor Unit
Removal Procedure 433
1. Outdoor Unit

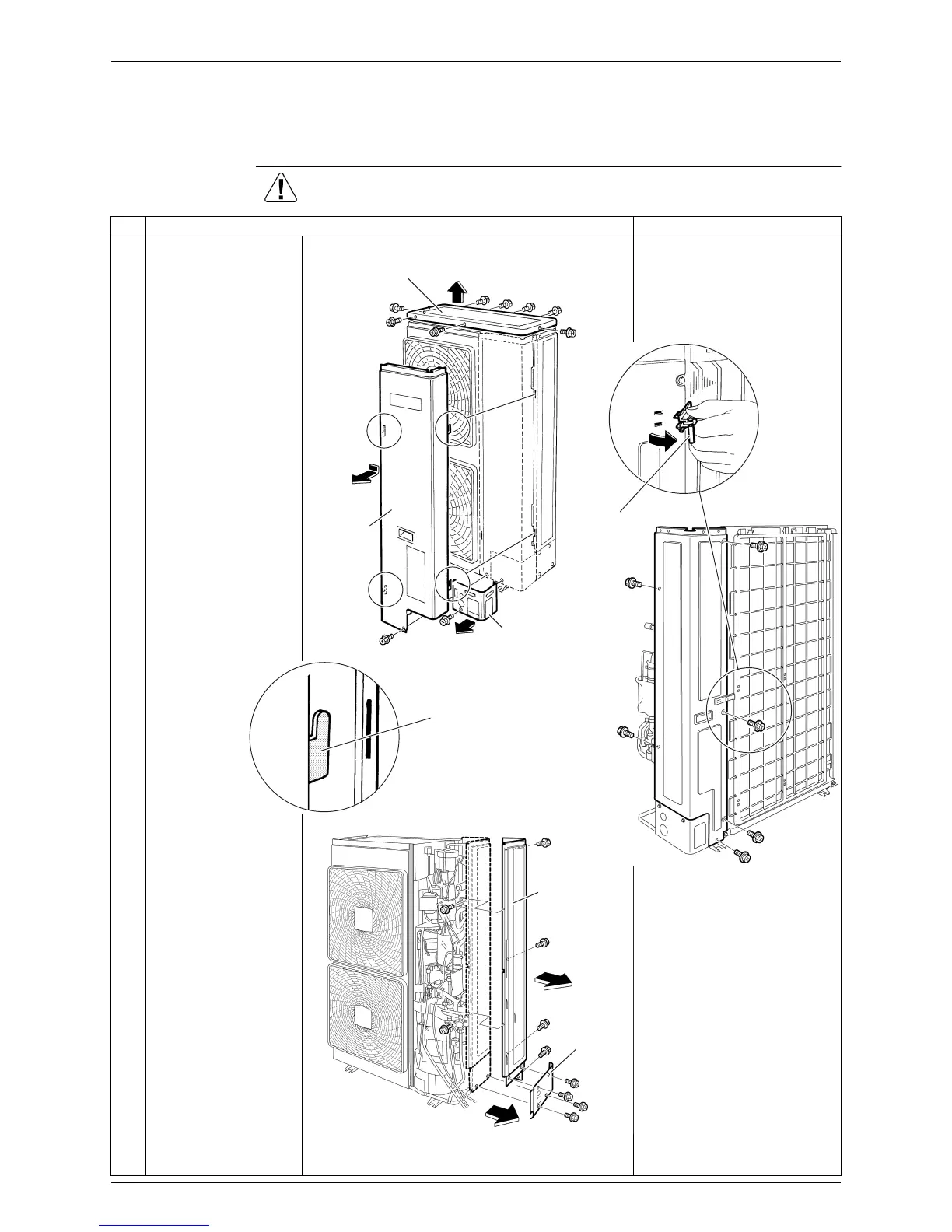

1.1 Removal of Outer Panels
Procedure Warning Be sure to commence the disassembling work after 10 minutes or
more elapsed from all power supplies have been turned off.
Step
Procedure Points
1
2
3
4
5
Remove the 8 screws
and remove the top
panel.
Remove the screw of
the front panel (2).
Push the front panel (2)
downward to release
the hook and remove it.
Remove the screw and
remove the piping cover
(front).
Remove the 4 screws
and remove the piping
cover (rear).
Detach the outdoor
temperature thermistor.
Remove the 6 screws
and remove the right
side panel.

It is possible to remove only
the front panel (2) without
removing the top panel.
Top panel
(R12962)
Front panel
(2)
Piping cover
(front)
Hook
(R12963)
Right side
panel
Piping cover
(rear)
(R9211)
Outdoor temperature
thermistor
