SiBE18-821_C Specifications
Specifications 11

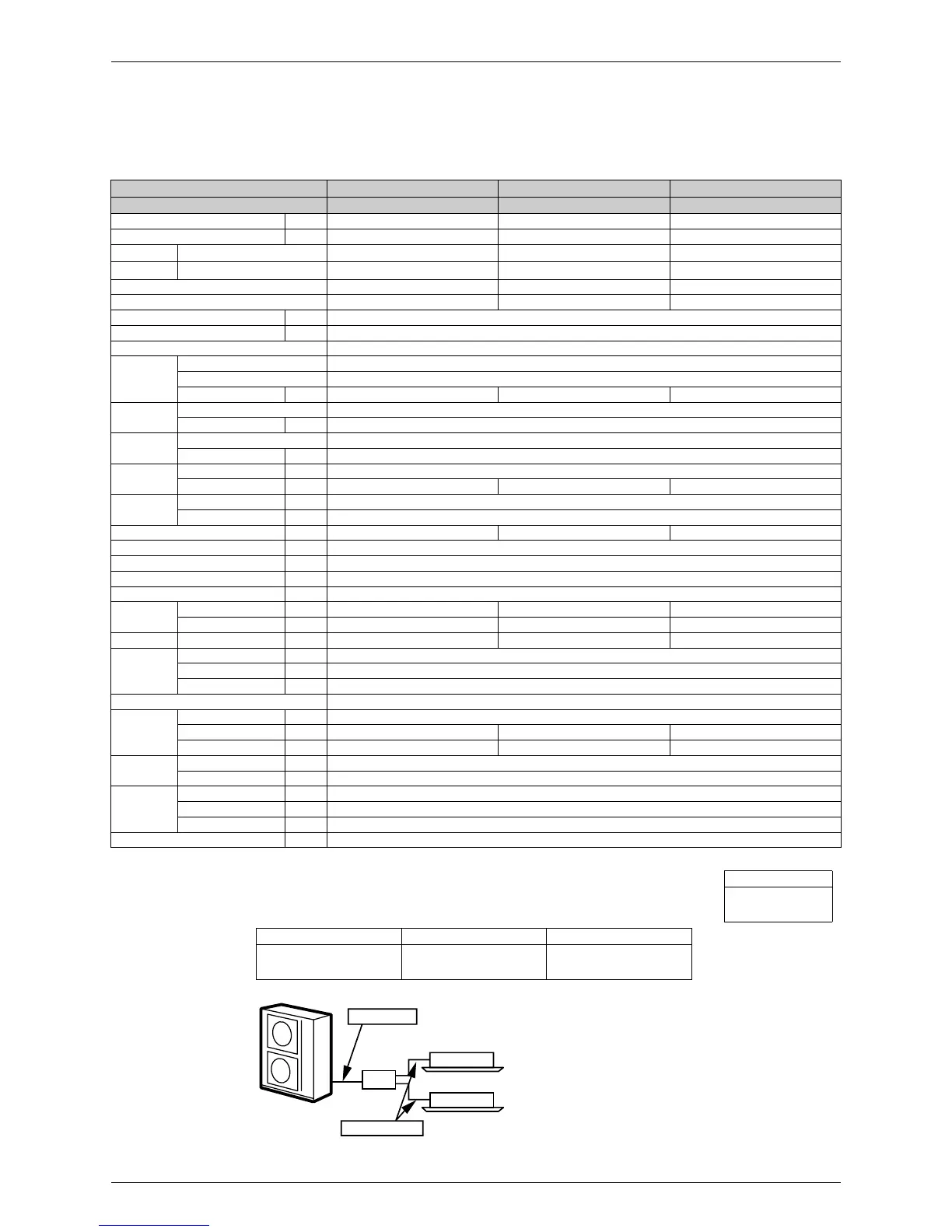

1. Specifications
1.1 Outdoor Unit
50 Hz, 230 V
Note:
1.
★
Refrigerant charge is required. (Chargeless piping length: 0 m)
Formula for calculation charge: R (kg)
R = [Total piping length (m) of
φ
9.5] × 0.054 + [Total piping length (m) of
φ
6.4] × 0.022
2. The data are based on the conditions shown in the table below.
Model RMXS112E8V1B RMXS140E8V1B RMXS160E8V1B
4HP 5HP 6HP
Cooling Capacity kW 11.2 14.0 15.5
Heating Capacity kW 12.5 16.0 17.5
EER
Cooling
3.20 2.75 2.87
COP
Heating
3.18 3.07 3.22
Max. Total Indoor Unit Capacity Index 130 162.5 182
Min. Total Indoor Unit Capacity Index 50 62.5 70
Power Consumption W —
Running Current A —
Casing Color Daikin White
Compressor
Type Hermetically Sealed Scroll Type
Model JT100G-VDL
Motor Output kW 2.5 3.0 3.5
Refrigerant
Oil
Model DAPHNE FVC68D
Charge L 1.5
Refrigerant
Type R-410A
Charge kg 4.0
Airflow Rate
(H)
Cooling m³/min 106
Heating m³/min 102 105 105
Fan
Type Propeller
Motor Output W 70 + 70
Starting Current A 15.9 20.2 22.2
Dimensions (H × W × D) mm 1,345 × 900 × 320
Packaged Dimensions (H × W × D) mm 1,524 × 980 × 420
Weight (Mass) kg 125
Gross Weight (Gross Mass) kg 130
Operation
Sound
Cooling dBA 51 52 54
Heating dBA 53 54 55
Sound Power Cooling dBA 67 68 70
Piping
Connection
Liquid mm
φ
9.52 (Flare Connection)
Gas mm
φ
19.1 (Brazing Connection)
Drain mm O.D.
φ
26
No. of Wiring Connection 3 For Power Supply (Including Earth Wiring), 2 For Interunit Wiring (Outdoor Unit-BP)
Total piping
length
O.U. - BP m 55
BP - I.U. m 60 80 90
System Total m 115 135 145
Max. piping
length
BP - I.U. m 15
1st Branch - I.U. m 40
Max. level
difference
O.U. - BP m 30
O.U. - I.U. m 30
BP - BP, I.U. - I.U. m 15
Necessity of Additional Charge
★
kg/m Necessary
Cooling Heating Piping Length
Indoor: 27°CDB / 19°CWB
Outdoor: 35°CDB
Indoor: 20°CDB
Outdoor: 7°CDB / 6°CWB
Main Piping: 5 m
Branch Piping: 3 m
Level difference: 0 m
Conversion Formulae
kcal/h = kW × 860
Btu/h = kW × 3412
cfm = m³/min × 35.3
BP Unit
Outdoor Unit
Main Piping
Branch Piping
Indoor Unit
(
Q0143
)
