SiBE18-821_C Outdoor Unit
Removal Procedure 443

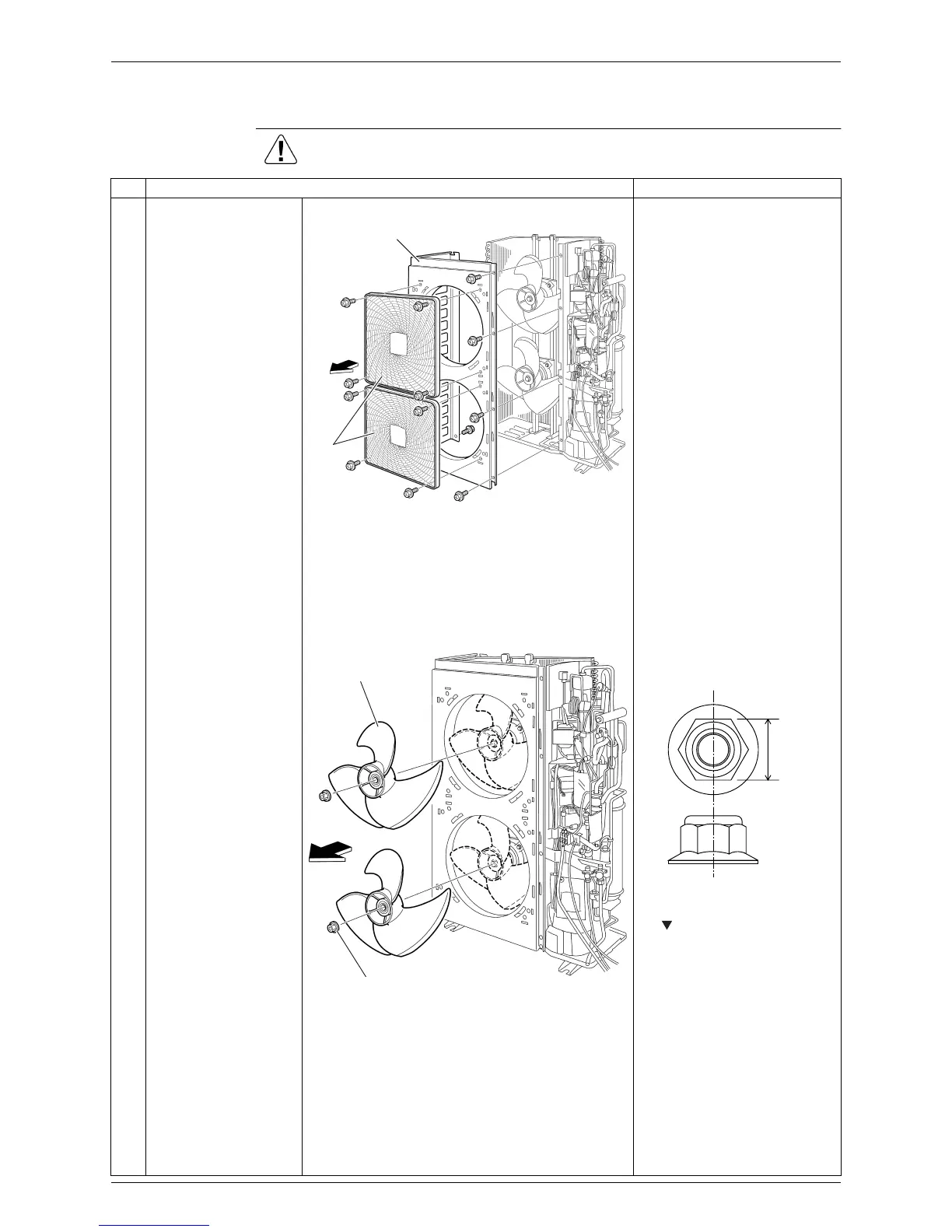

1.3 Removal of Outdoor Fans / Fan Motors
Procedure Warning Be sure to commence the disassembling work after 10 minutes or
more elapsed from all power supplies have been turned off.
Step
Procedure Points
Preparation
îš„
Remove the discharge grille,
front panels (1) and (2), and
piping cover (front),
according to the "Removal of
Outer Panels".
1
Remove the nuts which
fixing the outdoor fan.
îš„
The screw has reverse
winding.
îš„
Nut size : M8
îš„
When reassembling, align
mark of the outdoor fan
with D-cut section of the
motor shaft.
Front panel (1)
(R9241)
Discharge
grille
Outdoor fan
Nut with a washer
(R12974)
13 mm
(R12301)
To Next Page
