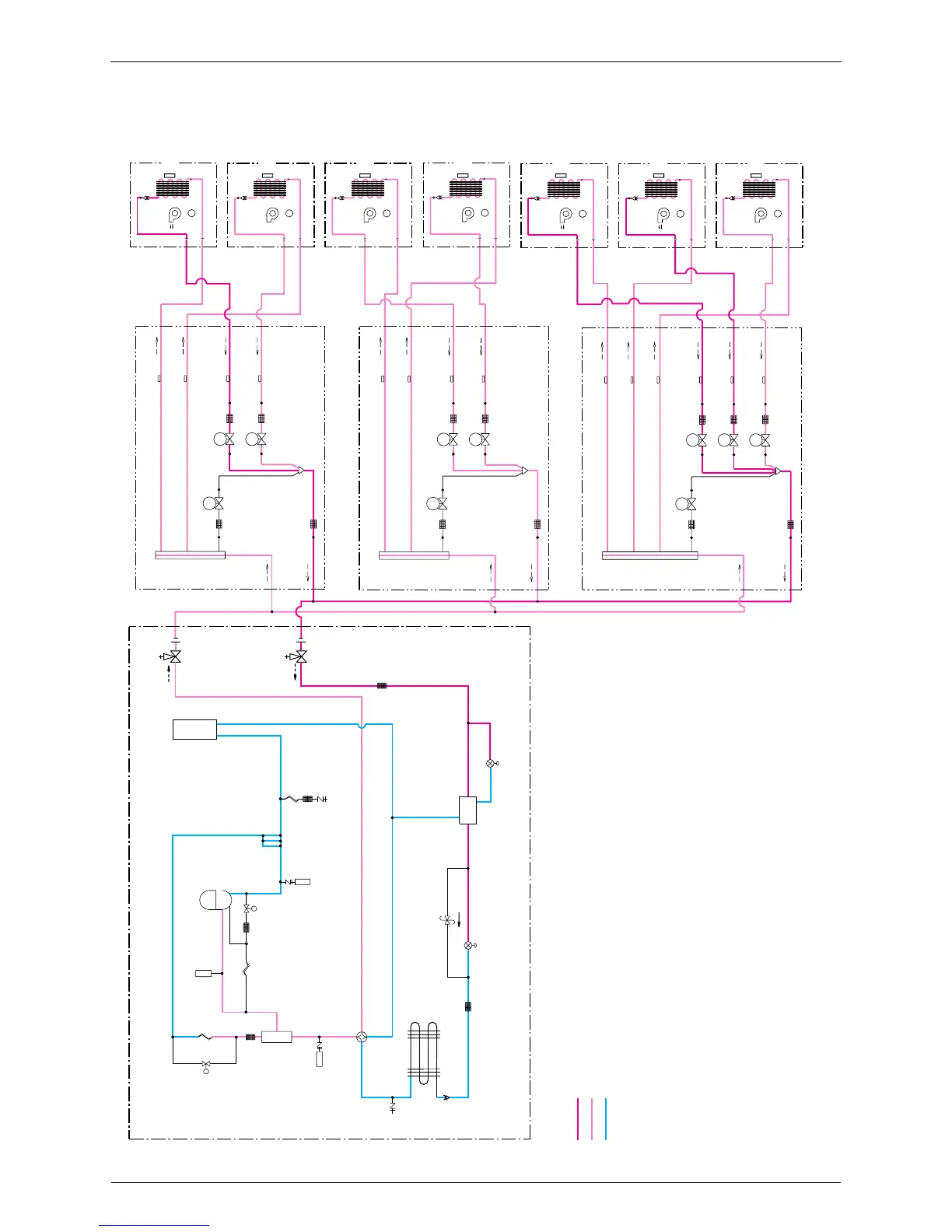

Refrigerant Flow for Each Operation Mode SiBE18-821_C
72 Refrigerant Circuit
3.2 Heating Operation
SOLENOID VALVE)
OUTDOOR UNIT INDOOR UNIT
FIELD PIPING
FIELD PIPING
SIROCCO FAN SIROCCO FAN
SIROCCO FAN
SIROCCO FAN
SIROCCO FAN
SIROCCO FAN
SIROCCO FAN
M
M M
M
M M
M
(R13064)
EV
A
: 80 pulse
EV
H
: Full closeEV
B
: 80 pulse
EV
H
: Full closeEV
B
: 80 pulseEV
A
: SC control
FIELD PIPING
FIELD PIPING
FIELD PIPING
FIELD PIPING
FIELD PIPING
FIELD PIPING
FIELD PIPING
FIELD PIPING
FIELD PIPING
FIELD PIPING
FIELD PIPING
"OFF" "OFF" "OFF" "OFF"
"ON" "ON" "ON"
FIELD PIPING
: High pressure liquid refrigerant : High pressure high temp. gas refrigerant : Low pressure low temp. liquid or gas refrigerant
Y1E PI control Y3E PI control Y2S OFF
EV
A
: SC control EV
B
: SC control EV
C
: 80 pulse EV
H
: Full close
SV
SV
SERVICE PORT
FILTER
FILTER
FILTER
FILTER
FILTER
HEAT EXCHANGER
COMPRESSOR
ACCUMULATOR
CAPILLARY TUBE
HIGH PRESSURE SWITCH
SOLENOID VALVE
CAPILLARY TUBE
CAPILLARY TUBE
LOW PRESSURE SENSOR
HIGH PRESSURE SENSOR
FOUR WAY VALVE
SERVICE PORT
OIL
SEPARATOR
ELECTRONIC EXPANSION VALVE (Y1E)
DOUBLE PIPE HEAT EXCHANGER
ELECTRONIC EXPANSION VALVE (Y3E)
PRESSURE REGULATING VALVE
LIQUID LINE STOP VALVE
GAS LINE STOP VALVE
BP UNIT
ELECTRONIC
EXPANSION VALVE(BYPASS)
FILTER
ELECTRONIC
EXPANSION VALVE(ROOM A)
GAS SIDE
THERMISTOR(DGB)
LIQUID SIDE
THERMISTOR(DLB)
LIQUID SIDE
THERMISTOR(DLA)
GAS SIDE
THERMISTOR(DGA)
FILTER
FILTER
ELECTRONIC
EXPANSION VALVE(ROOM B)
FILTER
FILTER
FILTER
FILTER
FILTER
LIQUID SIDE
THERMISTOR(DLB)
LIQUID SIDE
THERMISTOR(DLA)
GAS SIDE
THERMISTOR(DGA)
GAS SIDE
THERMISTOR(DGB)
ELECTRONIC
EXPANSION VALVE(ROOM B)
ELECTRONIC
EXPANSION VALVE(BYPASS)
ELECTRONIC
EXPANSION VALVE(ROOM A)
FILTER
FILTER
FILTER
FILTER
LIQUID SIDE
THERMISTOR(DLA)
LIQUID SIDE
THERMISTOR(DLB)
LIQUID SIDE
THERMISTOR(DLC)
GAS SIDE
THERMISTOR(DGA)
GAS SIDE
THERMISTOR(DGB)
GAS SIDE
THERMISTOR(DGC)
ELECTRONIC
EXPANSION VALVE(ROOM A)
ELECTRONIC
EXPANSION VALVE(ROOM B)
ELECTRONIC
EXPANSION VALVE(ROOM C)
ELECTRONIC
EXPANSION VALVE(BYPASS)
FILTER
EVH
EVA EVB
EVH
EVA EVB
EVH
EVC
EVB EVA
HEAT EXCHANGER
FAN MOTOR
FAN MOTOR
FAN MOTOR
FAN MOTOR
FAN MOTOR
FAN MOTOR
FAN MOTOR
HEAT EXCHANGER
HEAT EXCHANGER
HEAT EXCHANGER
HEAT EXCHANGER
HEAT EXCHANGER
HEAT EXCHANGER THERMISTOR HEAT EXCHANGER THERMISTOR
HEAT EXCHANGER THERMISTOR HEAT EXCHANGER THERMISTOR HEAT EXCHANGER THERMISTOR HEAT EXCHANGER THERMISTOR HEAT EXCHANGER THERMISTOR
HEAT EXCHANGER
(Y2S)
