3.3 Dimensions and connections

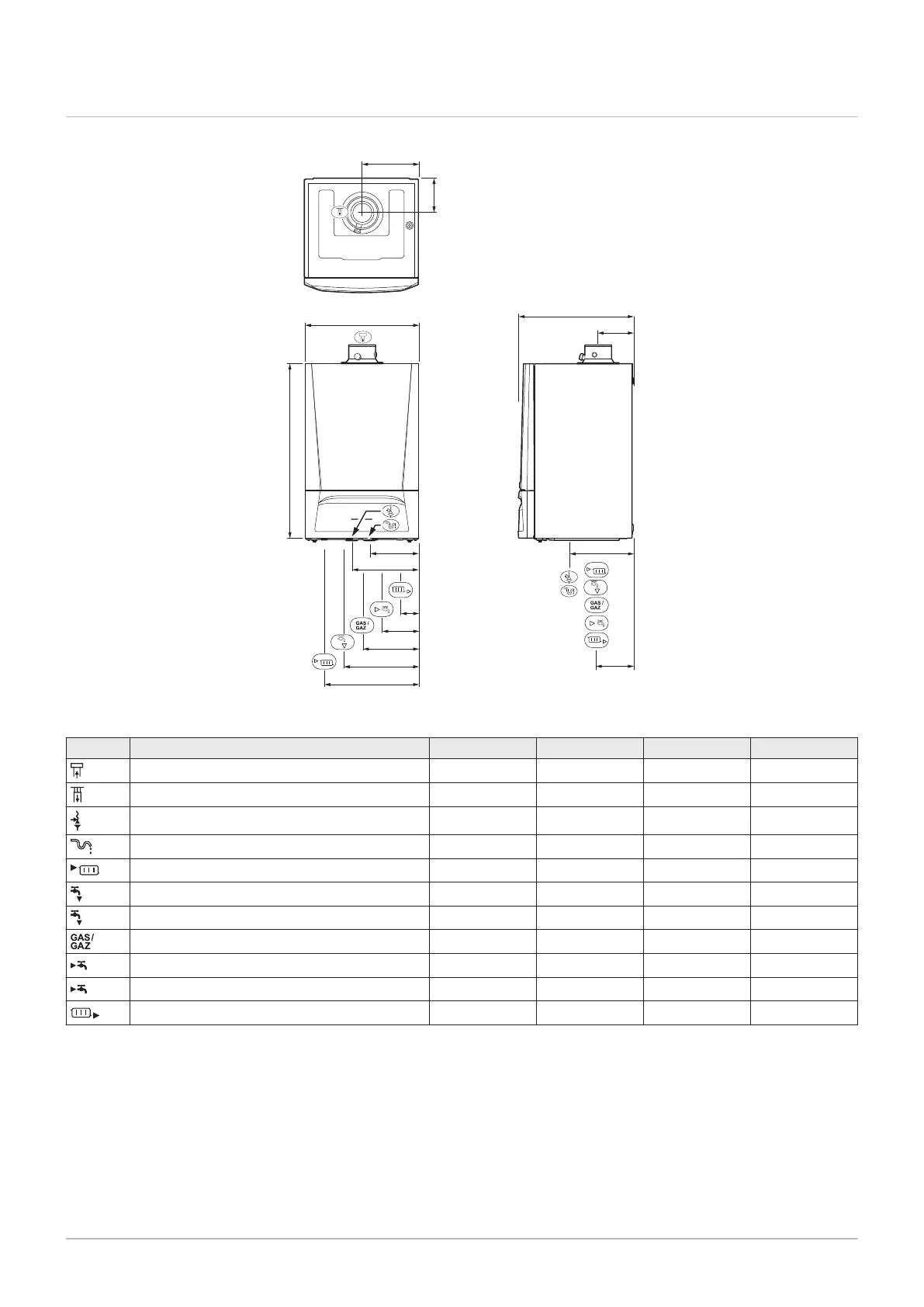

Fig.1 Dimensions
AD-0001436-02
67
195
265
132
199
266
331
690
450
450
225
140
140
150
255
Tab.10 Connections
AMC 15 25 25/28 MI 35
Connecting the flue gas outlet Ø 60 mm Ø 60 mm Ø 60 mm Ø 60 mm
Connecting the air supply Ø 100 mm Ø 100 mm Ø 100 mm Ø 100 mm
Hose of safety valve Ø 25 mm Ø 25 mm Ø 25 mm Ø 25 mm
Condensation outlet Ø 25 mm Ø 25 mm Ø 25 mm Ø 25 mm
Heating circuit flow (primary circuit) G¾" G¾" G¾" G¾"
Domestic hot water outlet - - G½" -
Heating circuit flow (secondary circuit) G½" G½" - G½"
Gas connection G½" G½" G½" G½"
Domestic cold water inlet - - G½" -
Heating circuit return (secondary circuit) G½" G½" - G½"
Heating return (primary circuit) G¾" G¾" G¾" G¾"
3 Technical specifications
7686707 - v.01 - 06092018 AMC 13
