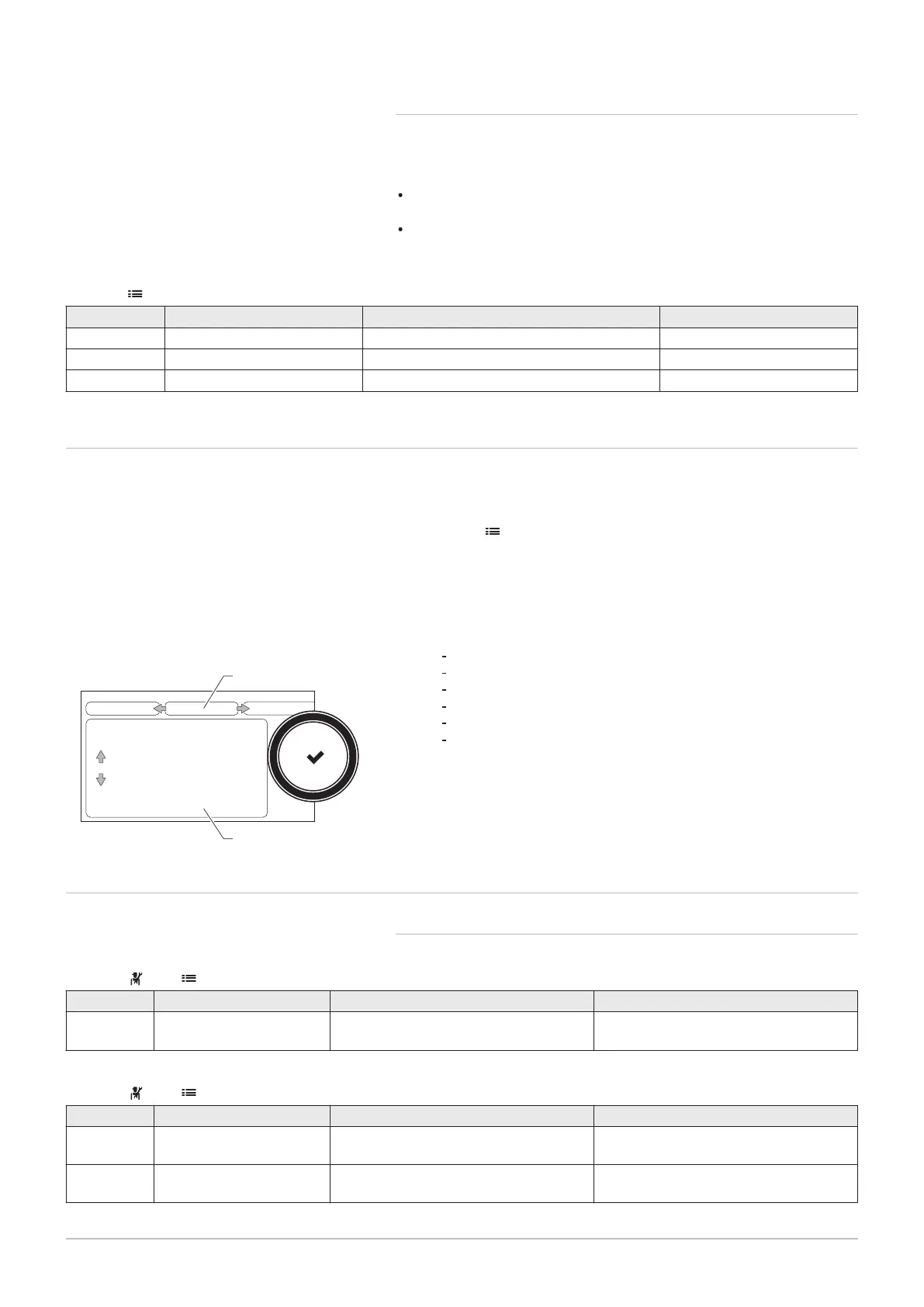

DeDietrich AMC 15 User Manual

9.4.3 Configuring a DHW tank with two sensors
When a domestic hot water tank with two sensors is connected to the
boiler, the loading of the tank depends on the water temperature
measured by the two sensors:
Loading of the tank will start when the top sensor measures a
temperature below (desired setpoint + CP700 – CP420).
Loading of the tank will stop when the bottom sensor measures a
temperature above (desired setpoint + CP700).
Tab.69
button > Installation Setup > SCB-10 > DHW tank > Parameters, counters, signals > Parameters
Code Display text Description Range
CP000 MaxZoneTFlowSetpoint Maximum Flow Temperature setpoint zone 7 °C – 100 °C
CP420 ZoneDhwHysterisis Trip differential for DHW production 1 °C – 60 °C
CP700 DHW Cal Offset zone Offset for calorifier sensor per zone 0 °C – 30 °C
9.5
Reading out measured values
The control unit continually registers various values from the boiler and the
connected sensors. These values can be read on the control panel of the
boiler.
1. Press the button.
2. Select > Installation Setup.
3. Select the zone or device you want to read out.
4. Select Parameters, counters, signals > Counters or Signals to read
out a counter or signal.
5. If available, select Adv. Counters or Adv. Signals to read out counters
or signals at the advanced installer level.
A
Parameters
Counters
Signals
Adv. Parameters
Adv. Counters
Adv. Signals
B List of settings or values
9.6
List of measured values
9.6.1 CU-GH08 control unit counters
Tab.70
On > > Installation Setup > CU-GH08 > Auto filling CH > Parameters, counters, signals > Counters
Code Text display Description Range
AC016 Amount Autofillings Filling counter, count the amount of
automatic filling loops
0 - 65534
Tab.71
On > > Installation Setup > CU-GH08 > Gas fired appliance > Parameters, counters, signals > Counters
Code Text display Description Range
AC002 Service Burning hrs Number of hours that the appliance has
been producing energy since last service
0 Hours - 131068 Hours
AC003 Hours Op. Service Number of hours since the previous
servicing of the appliance
0 Hours - 131068 Hours
Fig.91 Parameters, counters, signals
AD-3000936-01
A
B
9 Settings
92 AMC 7686707 - v.01 - 06092018
