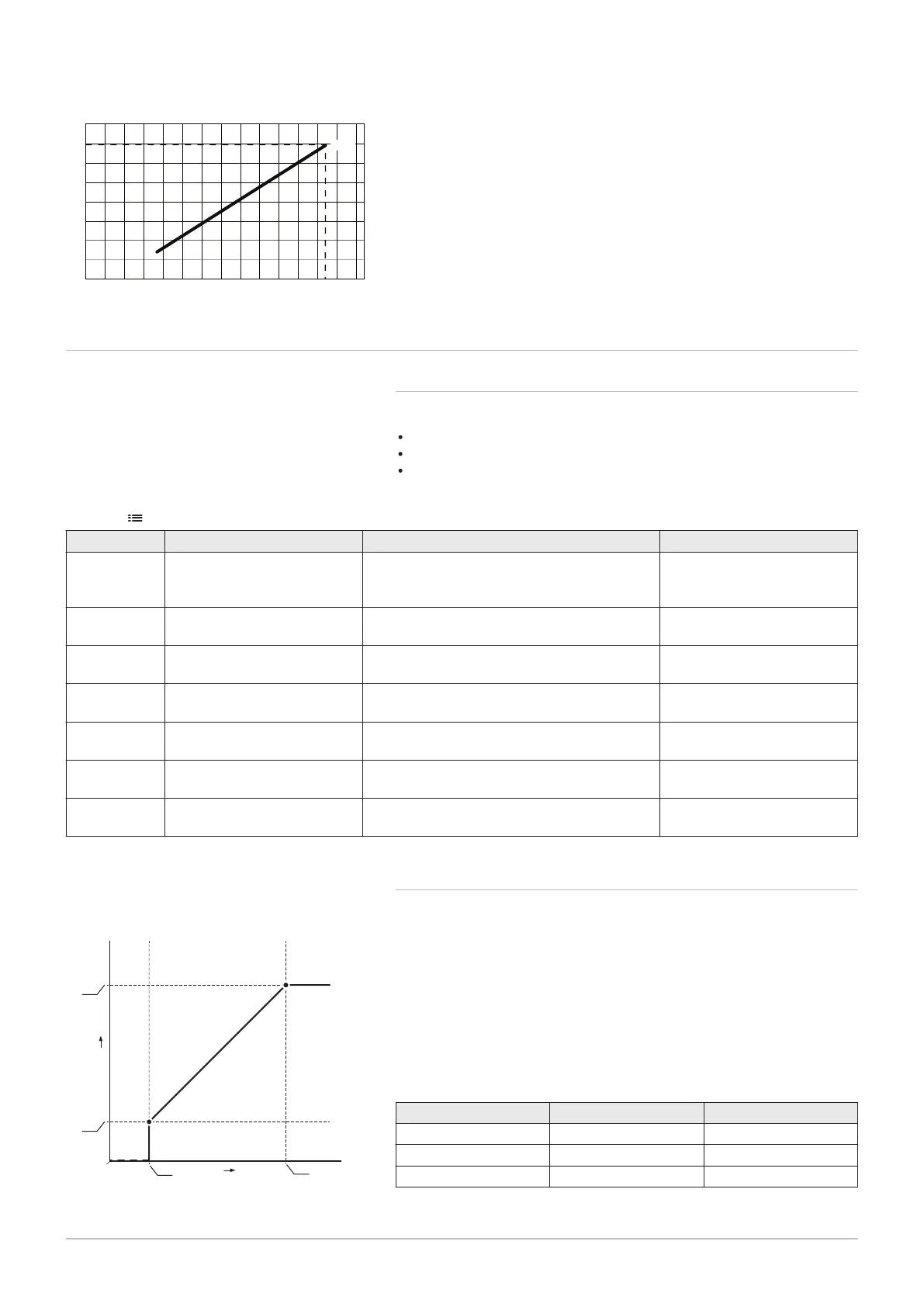

DeDietrich AMC 15 User Manual

M Maximum heat input
F Factory setting
Q Input (Hi) (kW)
R Fan speed (rpm)
9.4
Settings SCB-10 print
9.4.1 Setting the 0-10 Volt input function of SCB-10
There are three options for the 0-10 Volt input control of the SCB-10 print:
disable the input function.
the input is temperature based.
the input is heat output based
Tab.67
button > Installation Setup > SCB-10 > 0-10 volt input > Parameters
Code Display text Description Range
EP014 SCB func. 10V PWMin Smart Control Board function 10 Volt PWM
input
0 = Off
1 = Temperature control
2 = Power control
EP030 Min Setp Temp 0-10V Sets the minimum set point temperature for 0
- 10 volts for the Smart Control Board
0 °C - 100 °C
EP031 Max Setp Temp 0-10V Sets the maximum set point temperature for 0
- 10 volts for the Smart Control Board
0.5 °C - 100 °C
EP032 Min Setp Power 0-10V Sets the minimum set point power for 0 - 10
volts for the Smart Control Board
0 % - 100 %
EP033 Max Setp Power 0-10V Sets the maximum set point power for 0 - 10
volts
5 % - 100 %
EP034 Min Setp Volt 0-10V Sets the minimum set point voltage for 0 - 10
volts for the Smart Control Board
0 V - 10 V
EP035 Max Setp Volt 0-10V Sets the maximum set point voltage for 0 - 10
volts
0 V - 10 V
9.4.2
Analogue temperature regulation (°C)
1
EP030
2
EP031
3
EP034
4
EP035
The 0–10 V signal controls the boiler supply temperature. This control
modulates on the basis of flow temperature. The output varies between
the minimum and maximum value on the basis of the flow temperature set
point calculated by the controller.
Tab.68 Temperature regulation
Input signal (V) Temperature °C Description
0–1.5 0–15 Boiler off
1.5–1.8 15–18 Hysteresis
1.8–10 18–100 Desired temperature
Fig.89 AMC 35
AD-3001173-01
7000
Q
R
0
5
10
15
20
25
30
35
40
0 1000 2000 3000 4000 5000
6000
F=M
Fig.90 Temperature regulation
AD-3001121-01
0
V
°C
3
4
1
2
9 Settings
7686707 - v.01 - 06092018 AMC 91
