6 Installation
6.1 General
Warning
The boiler must be installed by a qualified installer in accordance
with local and national regulations.
6.2
Preparation
6.2.1 Installing the mounting frame
The boiler is supplied with a mounting template.
Proceed as follows to hang the mounting frame:
1. Attach the mounting template of the boiler to the wall using adhesive
tape.
Warning
Use a level on the mounting frame to check whether the
mounting template is perfectly horizontal.
Protect the boiler against building dust and cover the flue gas
outlet and air supply connection points. Only remove this cover
to assemble the relevant connections.
2. Drill 3 holes of Ø 10 mm.
Important
The extra holes are intended for use in the event that one of the
two fastening holes is not suitable for correct fastening of the plug.
3. Fit the Ø 10 mm plugs.
4. Attach the mounting frame to the wall with the Ø 8 mm screws
supplied
5. Remove the level from the mounting frame.

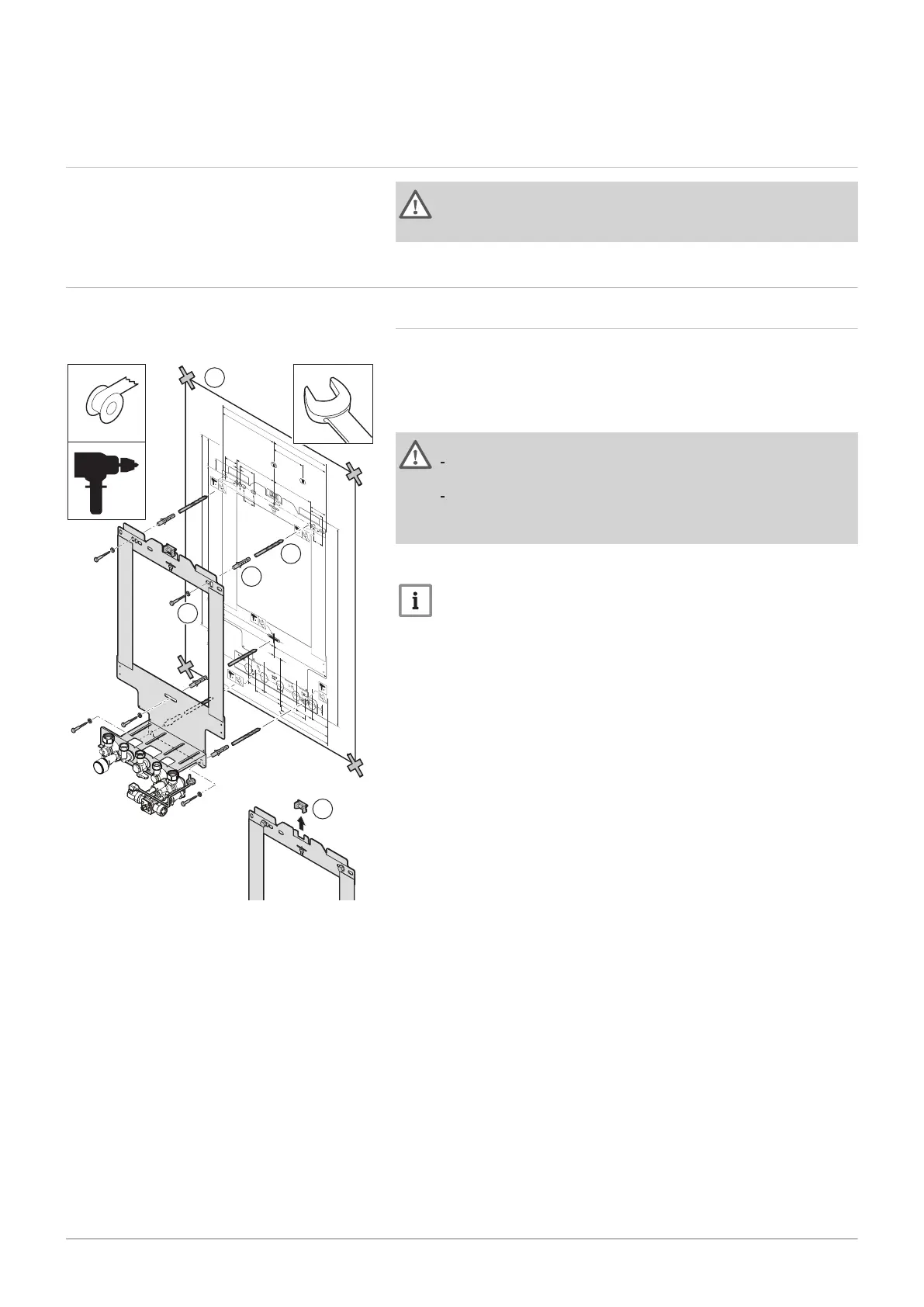

Fig.14 Installing the mounting frame
AD-0001379-02
76499
0
2
-01
50
57
41
13
152,5
154,5
216
216
2
20
220
2
6,5
120
432
450
6
76
7
6
7
6565
63
50
1
95
690
42
487
715
3
6
100
59
10
(1x)
10
(1x)
1
0
(1x)
104,5
1
04,5
5
1
0
(1
x
)
1
0
(1x)
1
2
3
4
5
6 Installation
24 AMC 7686707 - v.01 - 06092018
