Connecting the domestic hot water (DHW) sensor
Connecting the domestic hot water (DHW) sensor (NTC 10k Ohm/25°C).
Connecting contact temperature sensors
Connecting contact temperature sensors for system flow, DHW
temperatures or zones (groups).
S.DEP.A = temperature sensor (NTC 10k Ohm/25°C)
S.DEP.B = temperature sensor (NTC 10k Ohm/25°C)
S.DEP.C = temperature sensor (NTC 10k Ohm/25°C)
Connecting the calorifier tank anode
Connecting a TAS anode (Titan Active System) for a calorifier tank.
Connect the anode as follows:
- = connection on the calorifier tank
+ = connection on the anode
Caution
If the calorifier tank does not have a TAS anode, connect the
simulation anode (= accessory)
6.7
Connection diagrams PCB SCB-10
6.7.1 Symbols used
Tab.25 Explanation of symbols in the hydraulics flow diagram
Symbol Explanation
Return pipe
Flow pipe
Motorised three-way valve
Pump

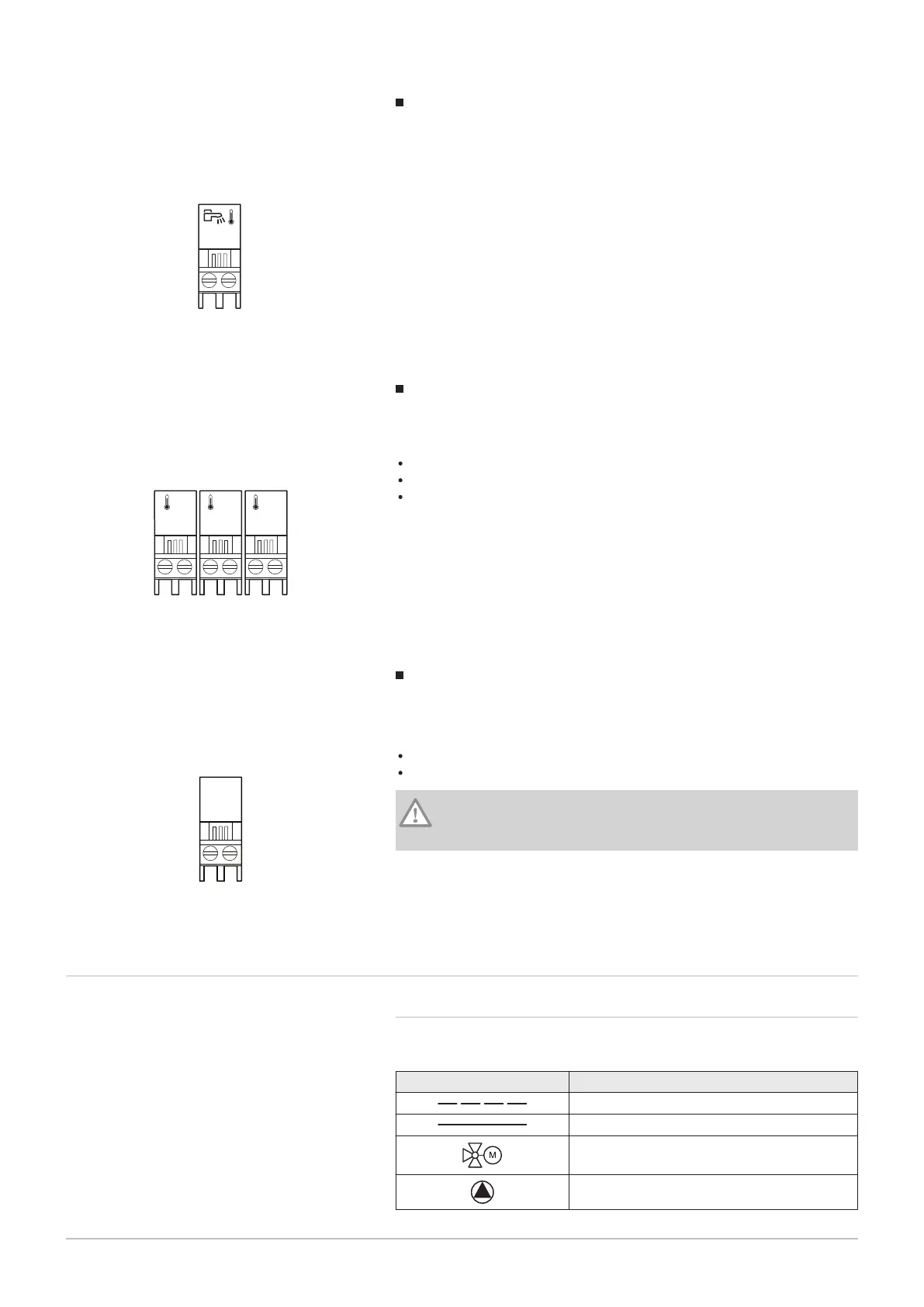

Fig.49 DHW sensor
AD-4000009-02
Tdhw
Fig.50 Contact temperature sensors
AD-4000007-02
Tflow
C
Tflow
B
Tflow
A
Fig.51 Anode connection for calorifier tank
AD-4000005-02
+ TA -
TA
6 Installation
7686707 - v.01 - 06092018 AMC 45
