DeDietrich AMC 15 User Manual

1
Flue gas outlet
2
Casing/air box
3
Flue gas measuring point
4
Mixing tube
5
Hydraulic flow pipe
6
Air intake silencer
7
Combined gas valve unit
8
Automatic air vent hose
9
Hydroblock, flow side
10
Housing for PCBs
11
Safety valve hose
12
Siphon
13
Instrument box
14
Circulation pump
15
Hydroblock, return side
16
Return pipe
17
Three-way valve
18
Condensate collector
19
Fan
20
Heat exchanger (CH)
21
Ionisation/ignition electrode
22
Air supply
1
Flue gas outlet
2
Casing/air box
3
Flue gas measuring point
4
Mixing tube
5
Hydraulic flow pipe
6
Air intake silencer
7
Combined gas valve unit
8
Automatic air vent hose
9
Hydroblock, flow side
10
Housing for PCBs
11
Safety valve hose
12
Siphon
13
Instrument box
14
Circulation pump
15
Hydroblock, return side
16
Return pipe
17
Plate heat exchanger (DHW)
18
Three-way valve
19
Condensate collector
20
Fan
21
Heat exchanger (CH)
22
Expansion vessel
23
Ionisation/ignition electrode
24
Air supply
4.4
Control panel
The AMC boiler is supplied with a Diematic Evolution control panel.
For more information, see
Control panel description, page 77
4.5
Standard delivery
The delivery includes:
The boiler, fitted with a three-core cable
Mounting frame with automatic refill device
Connection kit including cable glands and clamping rings

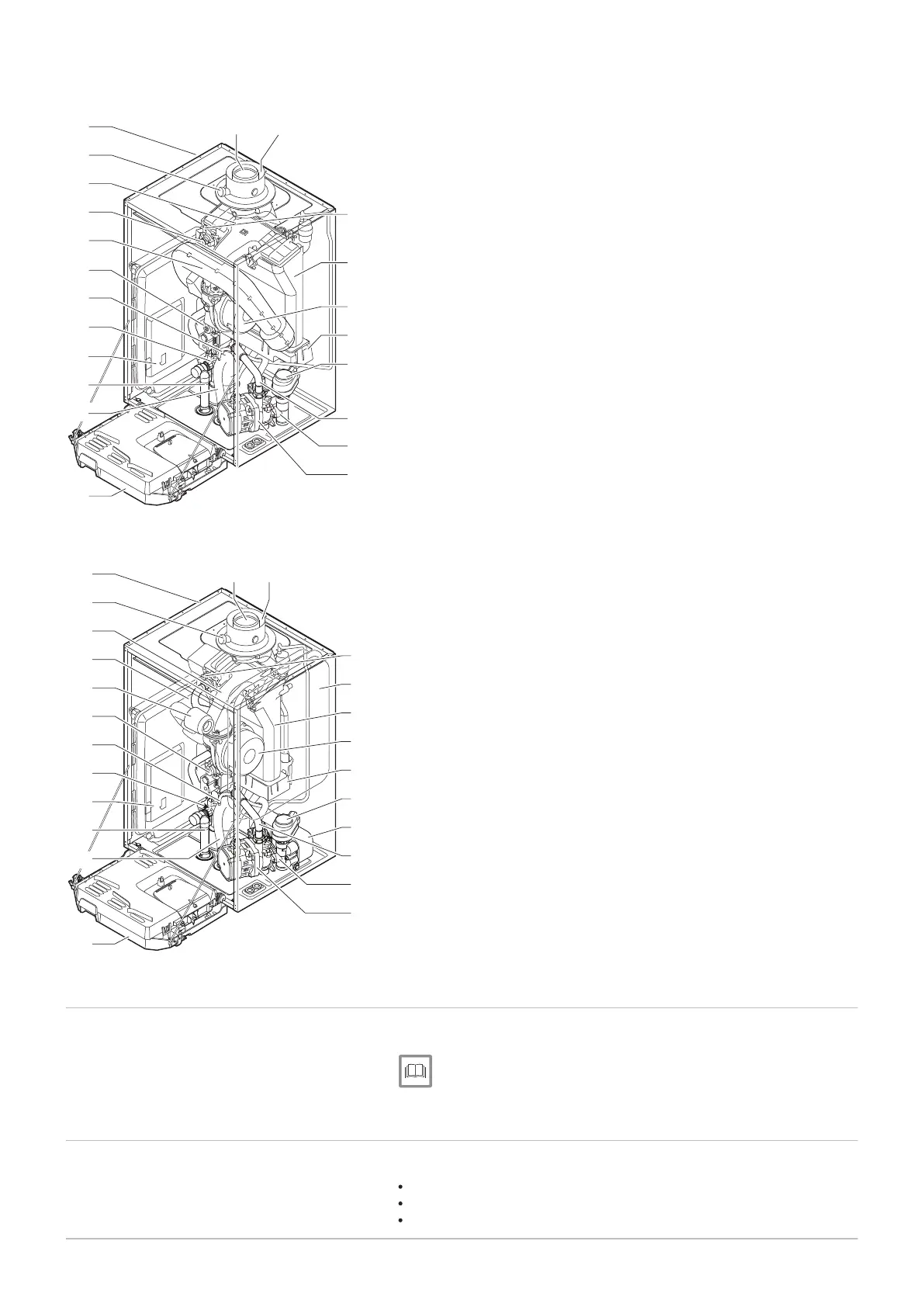

Fig.9
AMC 35
AD-0001372-02
2
15
16
17
14
18
19
20
21
3
4
5
6
7
8
9
13
1
22
10
11
12
Fig.10 AMC 25/28 MI
AD-0001373-03
2
17
16
15
14
18
19
20
21
22
23
3
4
5
6
8
7
9
10
11
12
13
1 24
4 Description of the product
20 AMC 7686707 - v.01 - 06092018
