8 Operation
8.1 Control panel description
8.1.1 Description of the components
1 Rotary knob to select a tile, menu or setting
2
Button to confirm the selection
3
Back button to return to the previous level or previous menu
4
Menu button to return to the main menu
5 Display
6 LED for status indication:
continuous green = normal operation
flashing green = warning
continuous red = shutdown
flashing red = lockout
8.1.2 Description of the home screen
This screen is shown automatically after start-up of the appliance. The
control panel goes automatically in standby mode (black screen) if the
screen is not touched for 5 minutes. Press one of the buttons on the
control panel to activate the screen again.
You can navigate from any menu to the home screen by pressing the back
button for several seconds.
The tiles on the home screen provide quick access to the corresponding
menus. Use the rotary knob to navigate to the menu of your choice and
press the button to confirm the selection.
1 Tiles: the selected tile is highlighted
2 Date and time | Name of the screen (actual position in the menu)
3 Information about the selected tile
4 Error indicator (only visible if an error has been found)
5 Icon showing the navigation level:
: Chimney sweeper level
: User level
: Installer level
The installer level is protected by an access code. When this
level is active, the status of the tile [
] changes from Off into
On.
8.1.3 Description of the main menu
You can navigate from any menu directly to the main menu by pressing
the menu button
. The number of accessible menus depends on the
access level (user or installer).

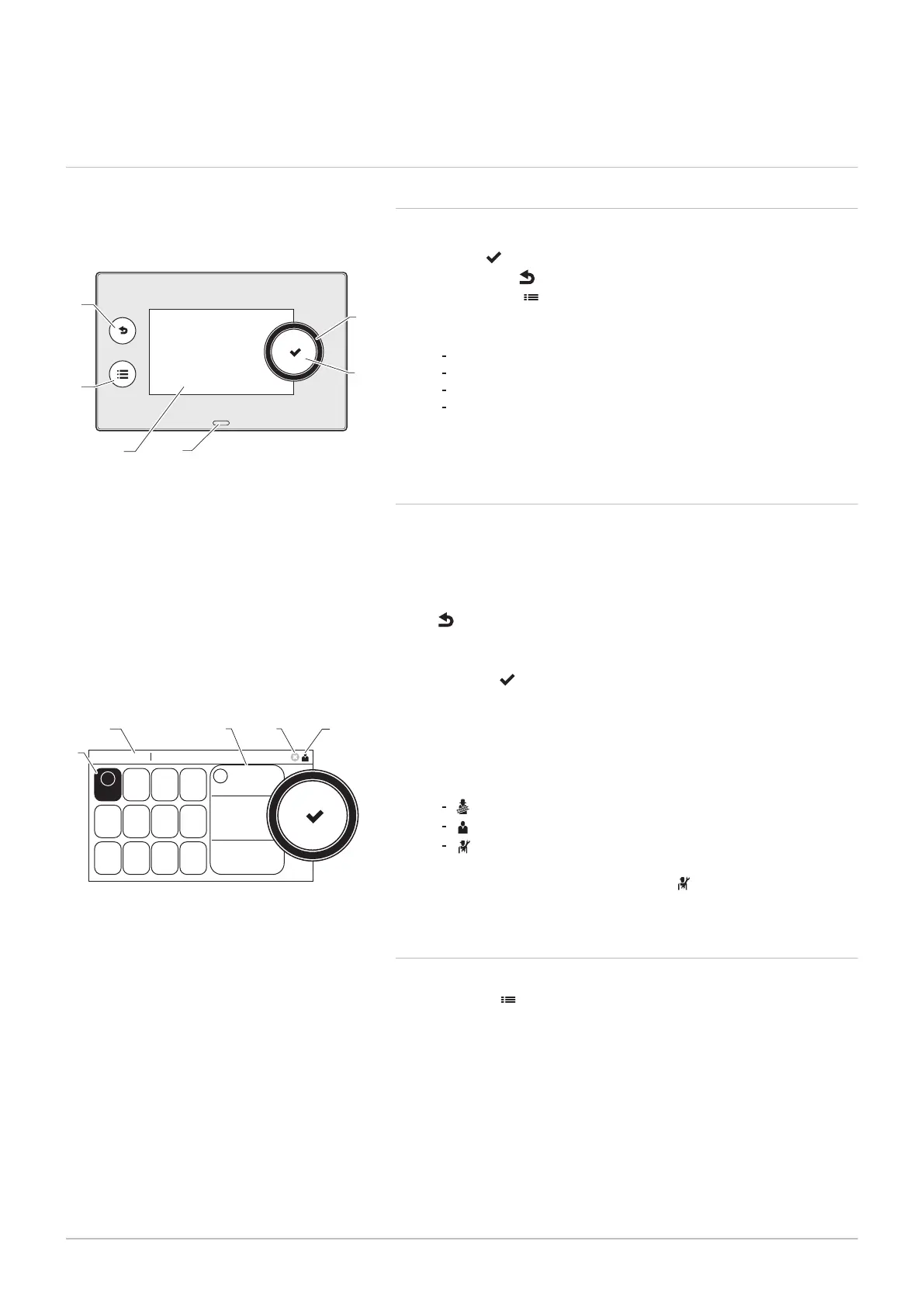

Fig.78 Components of the control panel
Fig.79 Icons on home screen
AD-3001157-01
All OK
Error Status
22/02/2018 11:20 Home Screen
i
i
All OK
2
5
43
1
8 Operation
7686707 - v.01 - 06092018 AMC 77
