408 Removing Options
FILE LOCATION: C:\Users\fxstdpc-
admin\Desktop\0630_UG??\Mioga_SFP_UG_FM\Mioga_SFP_UG_FM\section26.fm
DELL CONFIDENTIAL – PRELIMINARY 9/13/10 - FOR PROOF ONLY

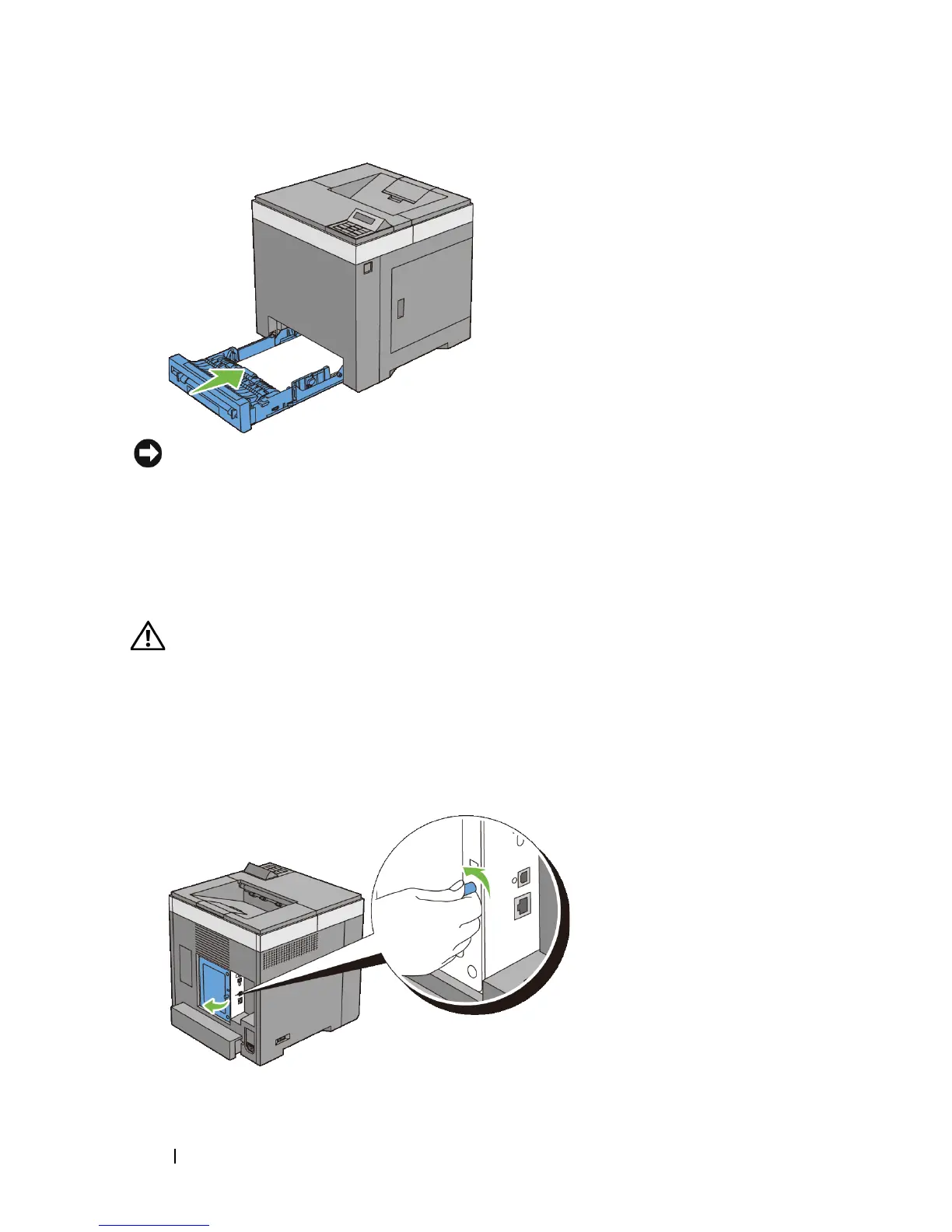

NOTICE: Do not use excessive force on the tray. Doing so could damage the tray
or the inside of the printer.
6 Reconnect all cables including the power cable into the back of the printer
and turn on the printer.
Removing the Optional Wireless Adapter
CAUTION: When you remove the optional wireless adapter, be sure to turn off
the printer, unplug the power cable, and disconnect all cables from the back of the
printer before starting these tasks.
1 Ensure that the printer is turned off.
2 Turn the screw on the control board cover counterclockwise and open the
cover.
3 Remove the control board cover.

Dell 2150cn Specifications

General

Color	Yes
Duplex printing	No
Print technology	Laser
Maximum resolution	600 x 600 DPI
Print speed (black, normal quality, A4/US Letter)	23 ppm
Internal memory	256 MB
Processor frequency	400 MHz
Maximum internal memory	750 MB
Total input capacity	250 sheets
Total output capacity	150 sheets
Maximum input capacity	501 sheets
Multi-Purpose tray input capacity	1 sheets
Maximum duty cycle	40000 pages per month
Maximum print size	216 x 297 mm
Paper tray media types	Envelopes, Labels, Plain paper, Recycled paper
Non-ISO print media sizes	Letter
ISO A-series sizes (A0...A9)	A4
Network ready	-
Networking features	Gigabit Ethernet
Supported media weight(s)	60 - 216 g/m²
Compatible operating systems	Microsoft Windows 7/Vista/2008/XP/2003 Mac OS: 10.3.9+/10.4.11+/10.5/10.6 Linux: SUSE Linux 10/Red Hat Linux 5
Compliance industry standards	IEEE 802.3/802.3u/802.3ab
Power consumption (printing)	- W
Display	LCD

Weight and Dimensions

Dimensions (WxDxH)	400 x 406 x 412.8 mm
