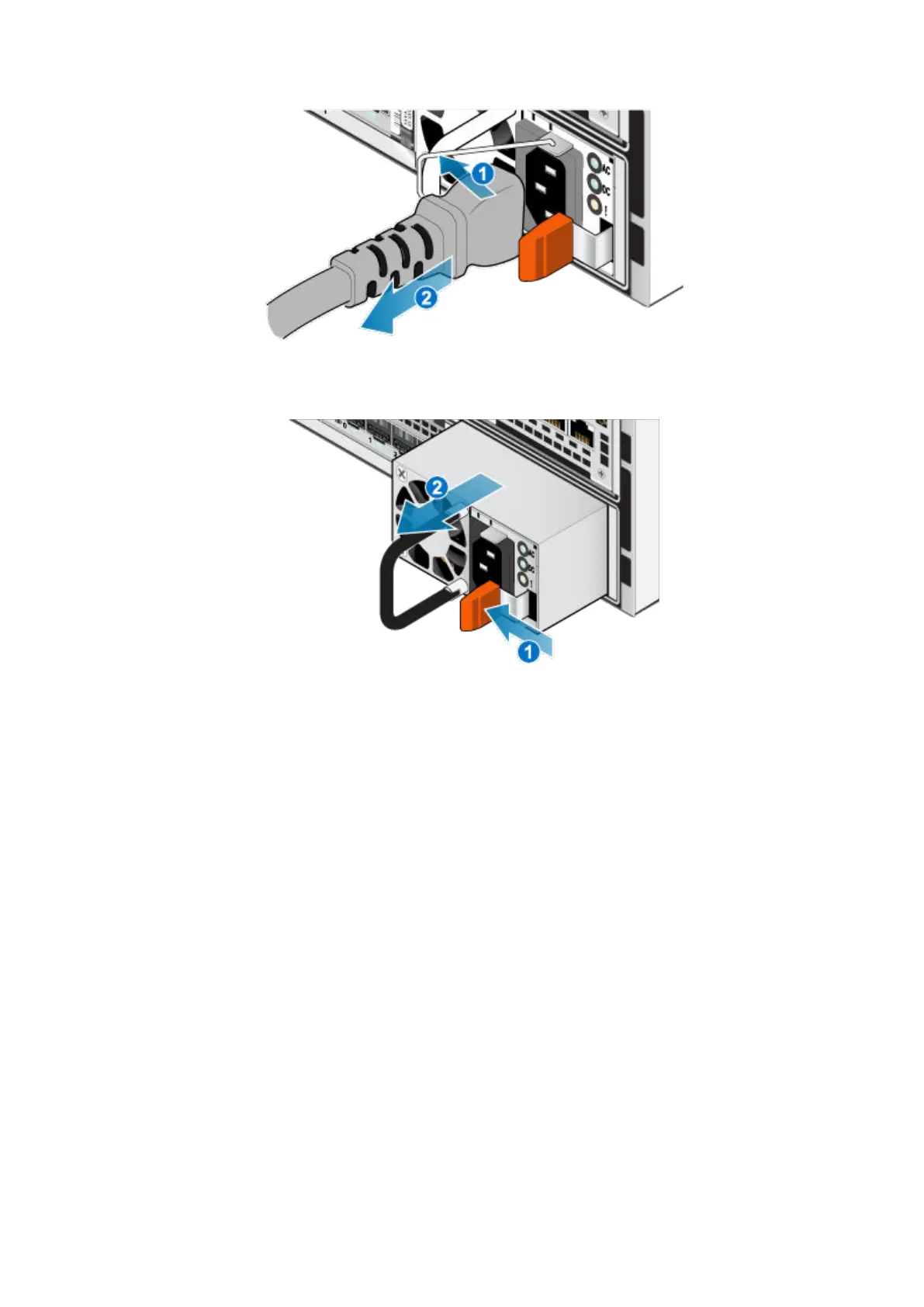

Figure 26. Removing the power cable
2. Push and hold the orange release tab to the left (to the right for the bottom power supply) and grasp the power supply by its handle.
Remove the power supply by pulling it from the node.
Figure 27. Removing a power supply
Install a power supply
About this task
The power supplies are installed in the top and bottom nodes, meaning that the top power supply is installed upside-down. This procedure
works for installing either power supply.
Steps
1. Align the power supply with the slot in the node. The power cable retention bail will be on the right for the bottom power supply and
on the left for the top power supply.
2. Push the power supply into the node until it clicks into place.
Base enclosure service procedures
33
