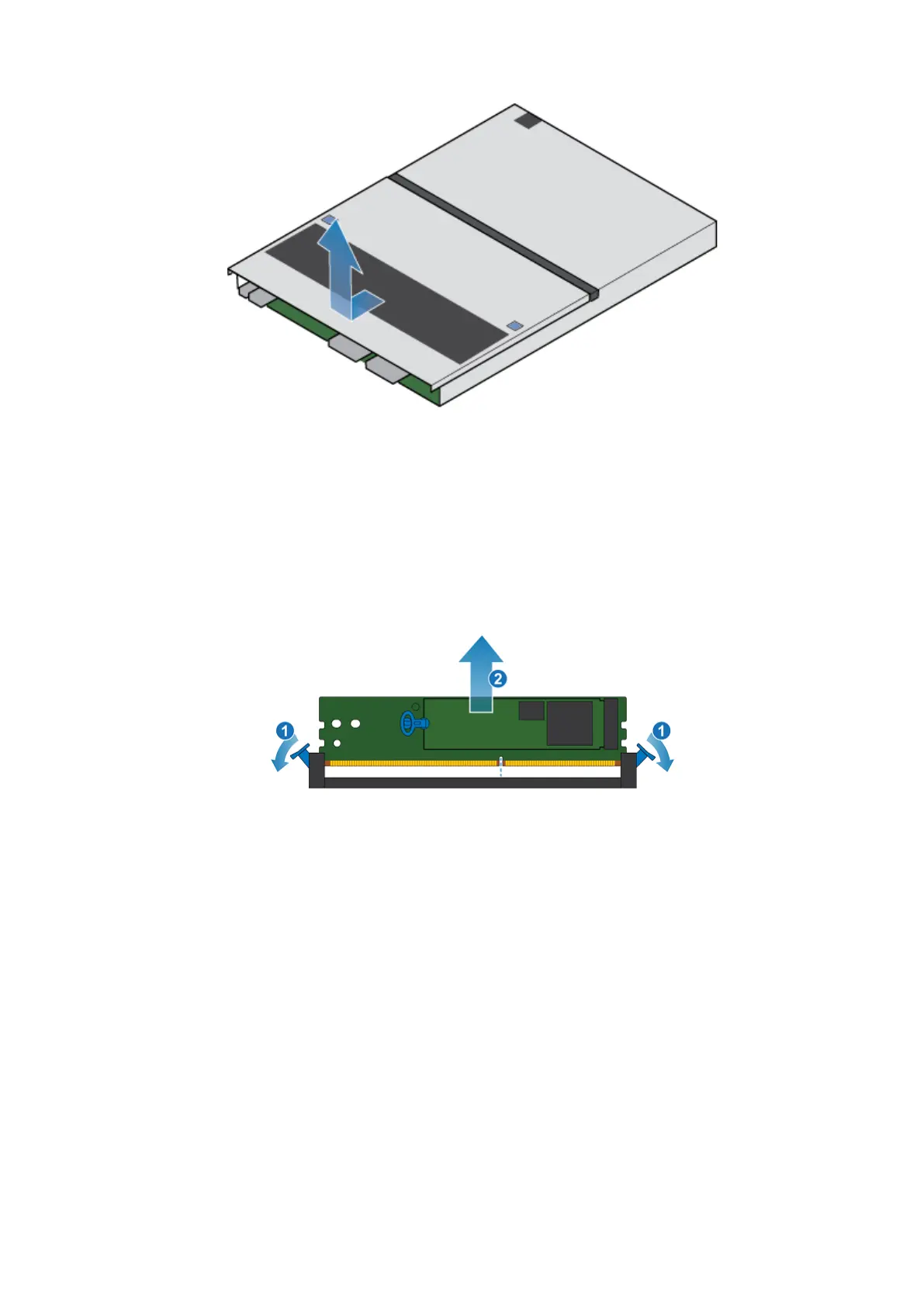

Figure 95. Removing the top cover
Remove the faulted M.2 boot module adaptor
Steps
1. Locate the M.2 boot module adaptor in the node.
You can identify the M.2 boot module adaptor by the blue retaining tabs.
2. Press the blue retaining tabs downward to free the M.2 boot module adaptor from its slot.
3. Touching only the outside edges of the M.2 boot module adaptor, remove the M.2 boot module adaptor.
Figure 96. Removing the M.2 boot module adaptor
4. Remove the internal M.2 boot modules:
a) Gently pull the handle on the release tab to separate it from the tab holding it in place.
b) Gently pull straight up on the pull tab to free it from the M.2 boot module adaptor.
c) Remove the internal M.2 boot module from the M.2 boot module adaptor.
Base enclosure service procedures
71
