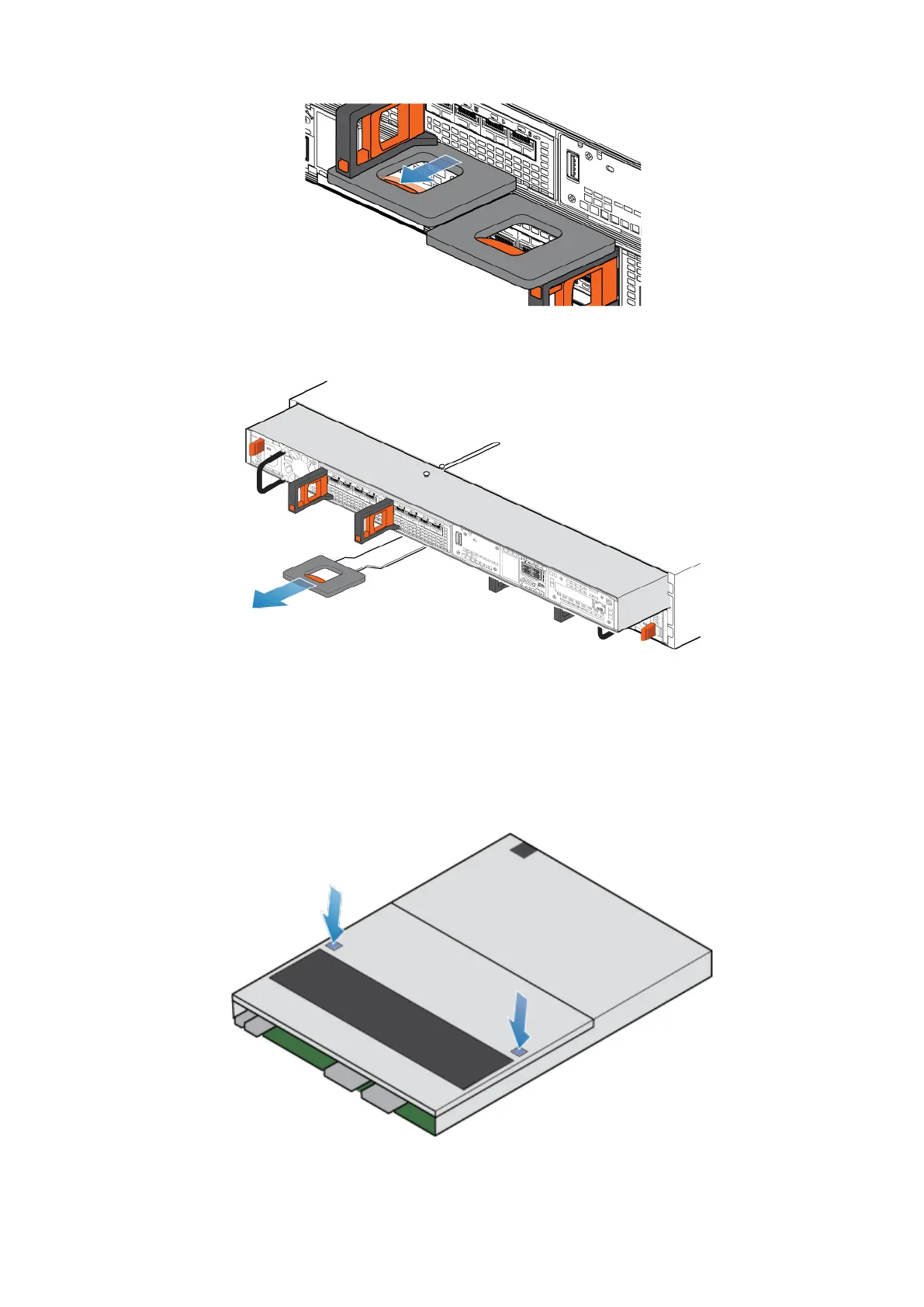

Figure 92. Disengaging the locking mechanism
4. Use the release handle to pull the node outward enough to grasp the sides with both hands. Then, with both hands supporting the
node, pull the node fully out of the enclosure.
Figure 93. Removing the node
5. Place the node on a clean, flat, static-free work surface.
Remove the top cover from the node
Steps
1. While pushing down the two blue release buttons, slide the top cover towards the rear of the system, until it stops.
Figure 94. Releasing the top cover
2. Lift the top cover upward, and remove it from the node.
70
Base enclosure service procedures
