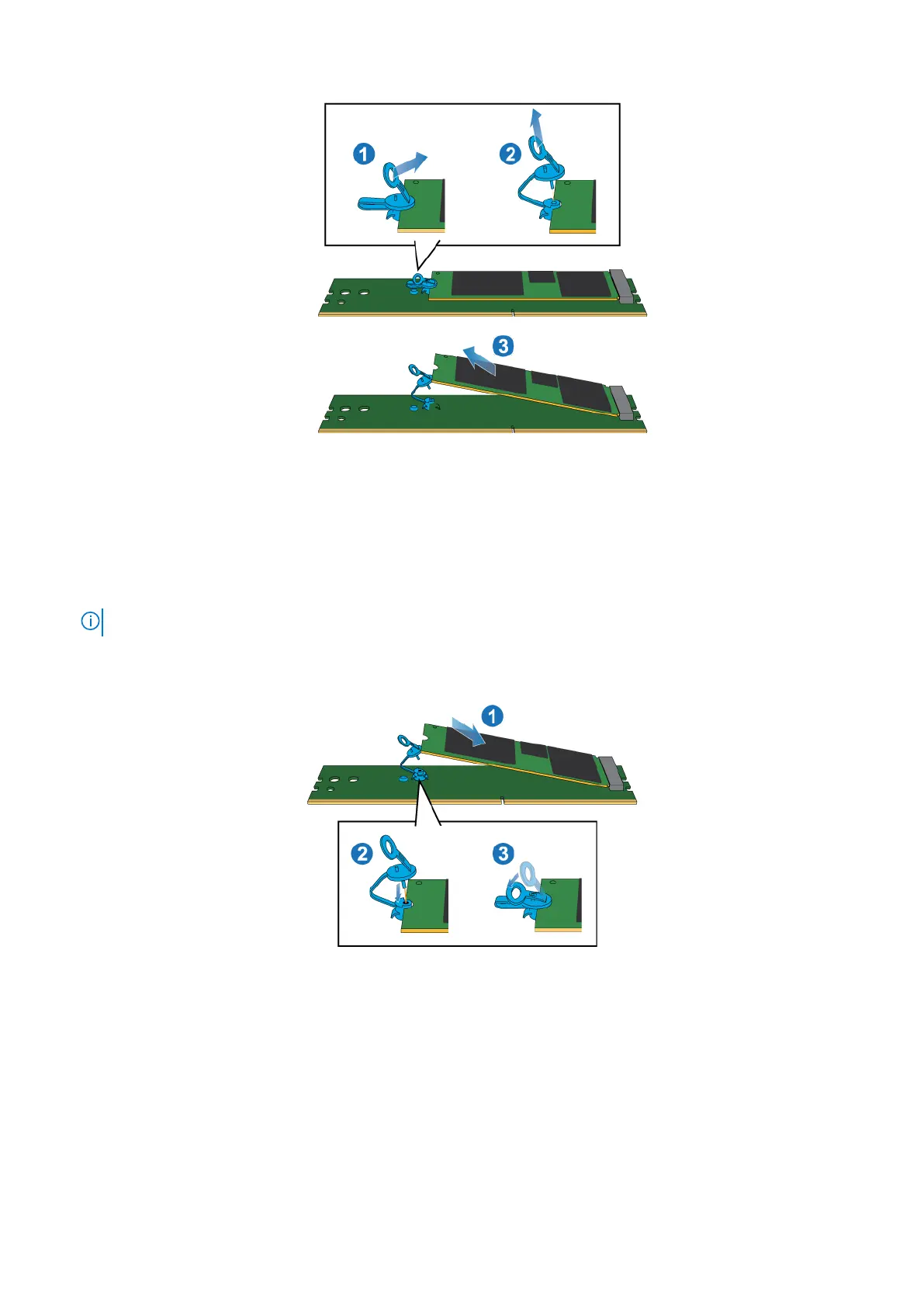

Figure 97. Removing the internal M.2 boot modules from the M.2 boot module adaptor
Install the M.2 boot module adaptor
Steps
1. Place the internal M.2 boot modules that you removed from the faulted M.2 boot module adaptor into the new M.2 boot module
adaptor.
NOTE: The side of the internal M.2 boot module with the barcodes should be facing up.
2. Align the blue tab on the replacement internal M.2 boot module with the slot on the M.2 boot module adaptor and gently push it into
place.
3. Connect the pull tab to the blue adapter.
Figure 98. Installing the internal M.2 boot modules into the M.2 boot module adaptor
4. Touching only the outside edges of the M.2 boot module adaptor, align the M.2 boot module adaptor with the connector.
5. Firmly push the M.2 boot module adaptor straight down into the connector.
When the M.2 boot module adaptor is fully seated, you will hear a snap, and feel the connector latches click into place.
72
Base enclosure service procedures
