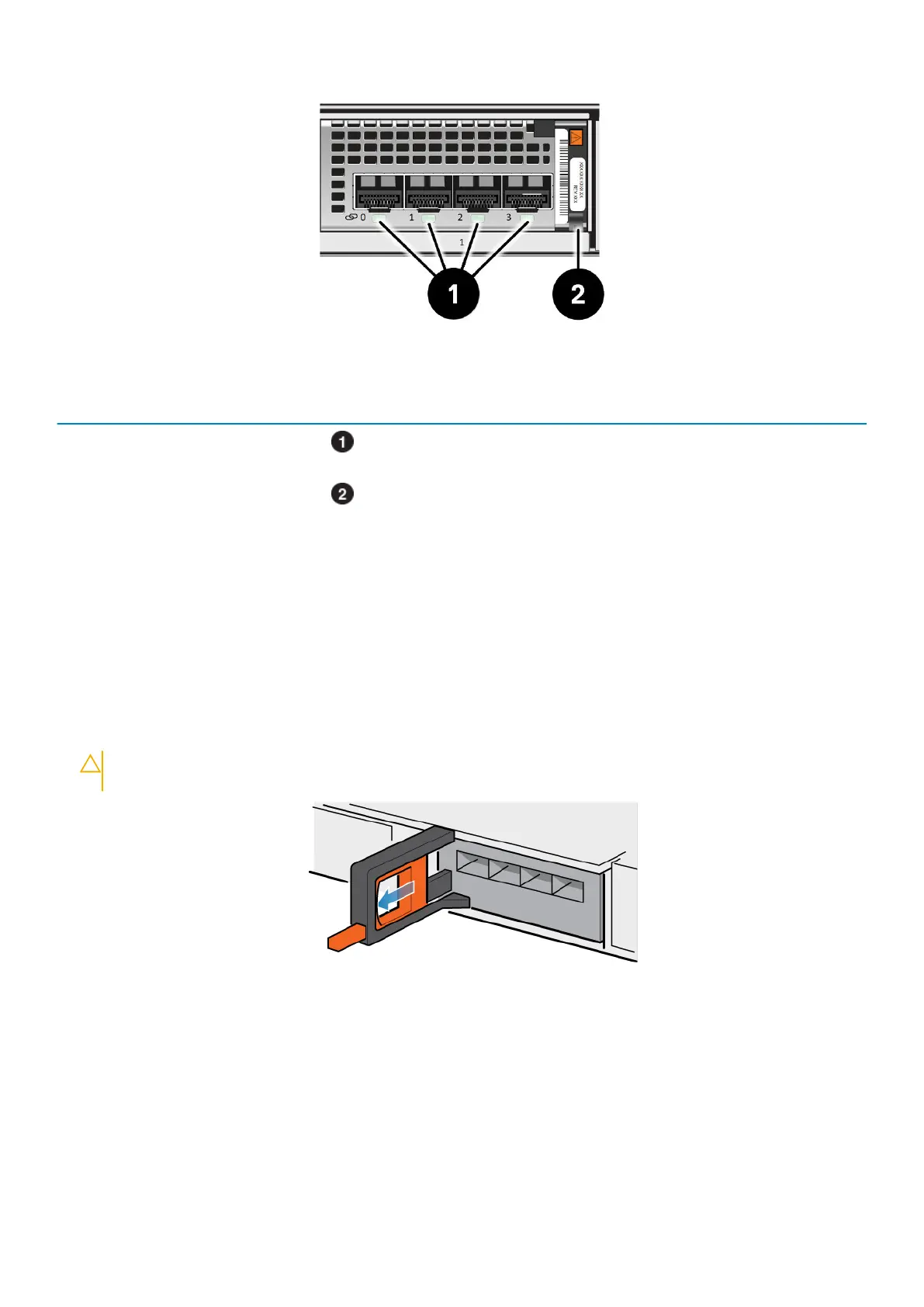

Figure 50. Base enclosure I/O module LEDs
Table 4. Base enclosure I/O module LEDs
LED Location State Description
Port link Green or blue Link up
Off Link down
Power fault Green Power on
Amber Power fault
Power down the node
Power down the node as described in Power control procedures.
Remove a faulted I/O module
Steps
1. Pull the trigger mechanism on the I/O module handle to release it.
CAUTION:
Do not pull the node from the base enclosure. Pulling the node from the base enclosure disrupts the
system cache.
Figure 51. Releasing the I/O module
2. Gently pull the I/O module from the slot.
