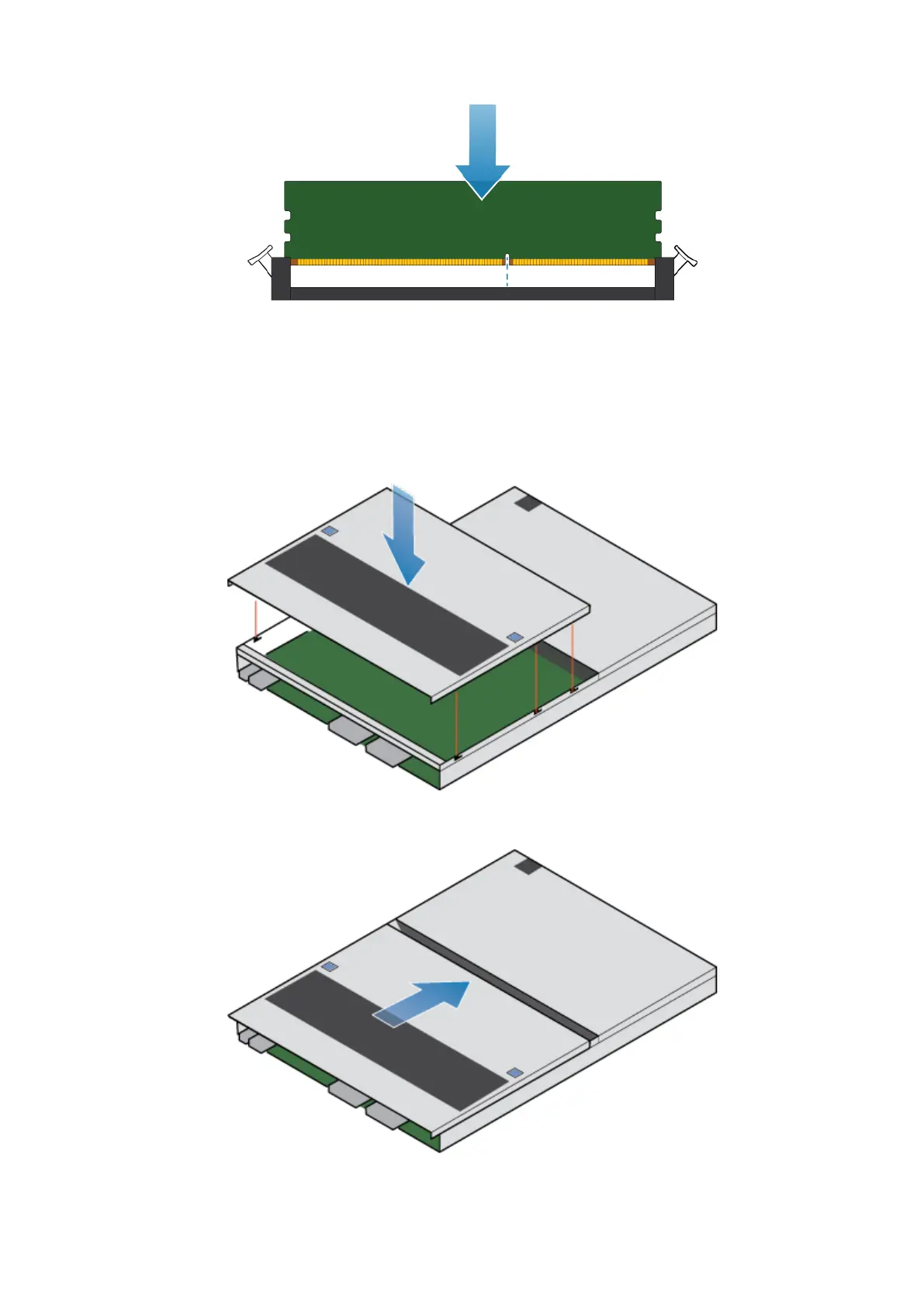

Figure 73. Installing the DIMM
3. Ensure that the tabs have locked into place and the DIMM is secure.
Install the top cover on the node
Steps
1. Position the top cover over the node and align it with the slots in the sides at the rear of the node.
Figure 74. Aligning the top cover
2. Pull the top cover forward to secure it in place.
Figure 75. Securing the top cover
60
Base enclosure service procedures
To Next Page
