Eaton CF1200 User Manual

32 INSTALLATION AND OPERATION MANUAL 25-16327-B November 2020 www.eaton.com

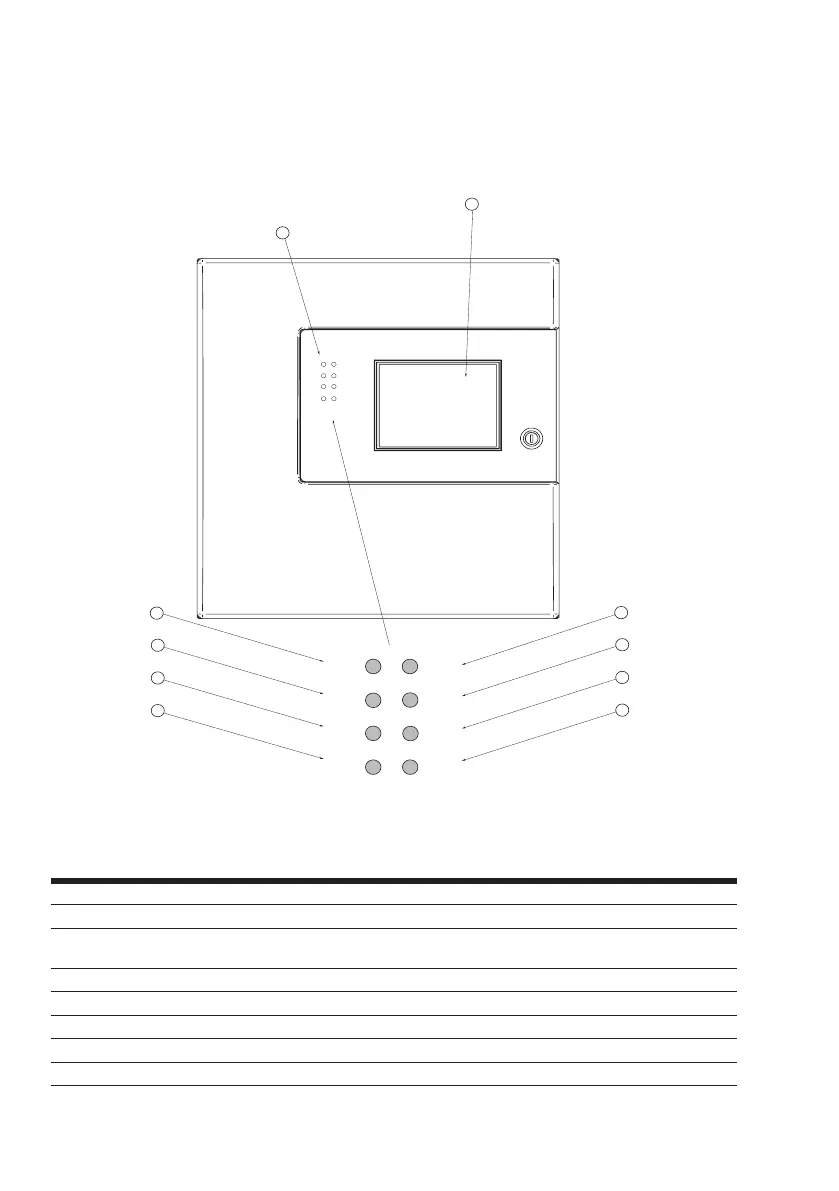

Section 3: Panel controls & indicators
Section 3: Panel controls & indicators
1. System LED’s
2. Touch Screen Display
LED Name Function Action
1 Power on Shows panel is on Check indicator is illuminated
2 Fire Indicators panel has detected a fire Impliment fire action procedure
3 General fault Monitors devices for faults e.g. Smoke
detectors/sounders
Report to system supervisor
4 General disable Monitors fire panel for faults Report fault to service dept
5 Power fault Monitor internal battery charger Report fault to service dept
6 System fault Monitors fire panel for faults Report fault to service dept
7 Test Supervisor/engineer is testing the systems Report to system supervisor
8 Sounder Indicates the sounder status Check with system supervisor
General
Fault
FIRE
TEST
General
Disable
Sounder
Disable
Fault
Power
ON
General
Fault
FIRE
General
Disable
Power
ON
System
Fault
Power
Fault
TEST
Sounder
Disable
Fault
System
Fault
Power
Fault
1
1
2
2
3
4
5
6
7
8
