85INSTALLATION AND OPERATION MANUAL 25-16327-B November 2020 www.eaton.com
Section 4: Appendix

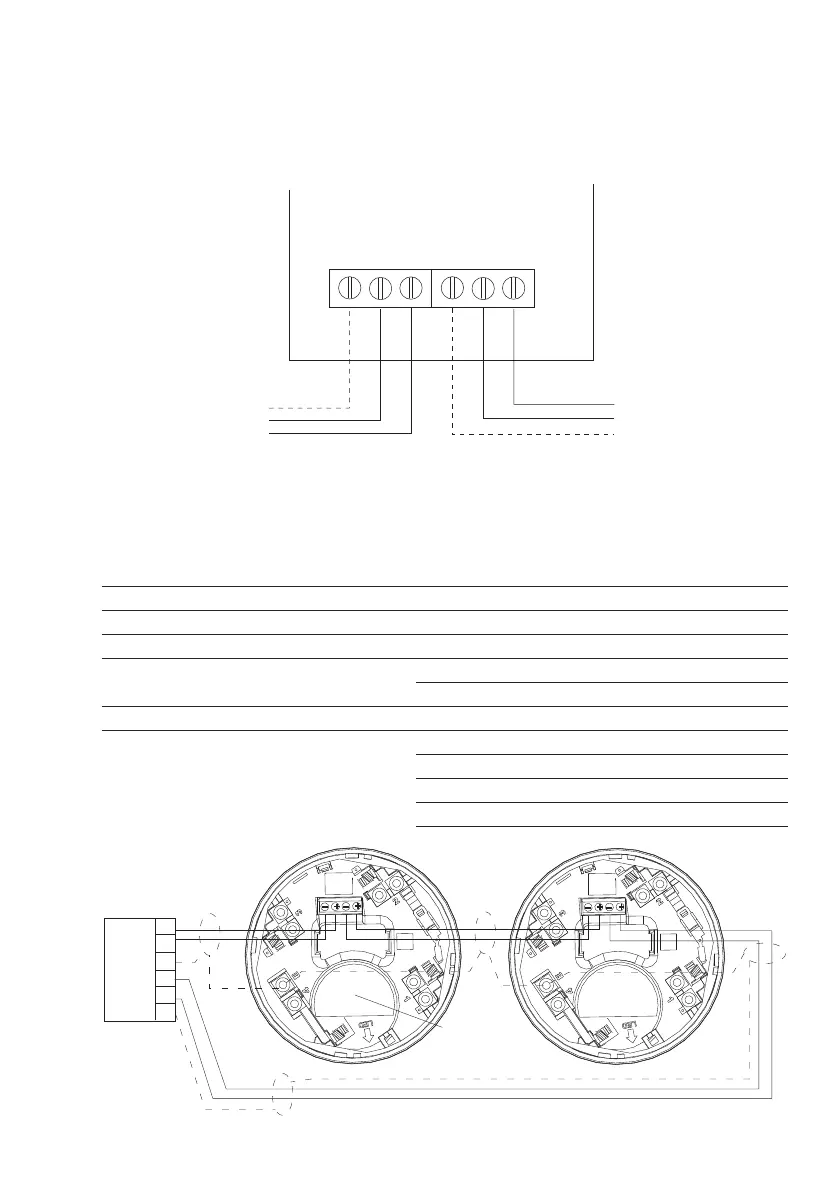

Call point wiring (CBG370S/CBG370WP)
Base sounder wiring (CAS380, CASBB384)
Supply voltage
17 ~ 32 Vdc
Cable size / type
1.0 ~ 1.5mm
2
/ FIRETUF, FP200 or MICC
Standby current
< 320 uA
Operating temperature
-10 to +55 degrees C (95%RH)
Sound output @ +/-3dB (set by panel)
Low volume : 84dB @ <4mA
Medium volume : 92dB @ <8mA
High volume : 95dB @ <12mA
Tones (set by panel)
Continuous 910Hz
Pulsed 910Hz / 0Hz pulse 1Hz
Two tone 610 / 910Hz @ 1Hz cycle
Slow whoop 500-1200Hz in 3.5 seconds / 0.5secs gap
EE
EE
IINN
OO UU TT
--
--
++
++
AA nn aa lloogguu ee AAdd dd rree ssssaa bb llee LL oooopp
LL OO OO PP IINN
LL OO OO PP OO UU TT
+
+
-
-
+
+
-
-
SS ++
FF
FF ++
SS
__
__
__
__
__
__
__
__
__
__
CCFF 33000000
AAnnaalloogguuee AAddddrreessssaabbllee
FFiirree AAllaarrmm PPaanneell
LLoooopp SSttaarrtt
LLoooopp FFiinniisshh
Due to restricted
access space, do
not use excessive
cable in this area.

Eaton CF1200 Specifications

General

Brand	Eaton
Model	CF1200
Category	Fire Alarms
Language	English
