86 INSTALLATION AND OPERATION MANUAL 25-16327-B November 2020 www.eaton.com
Section 4: Appendix

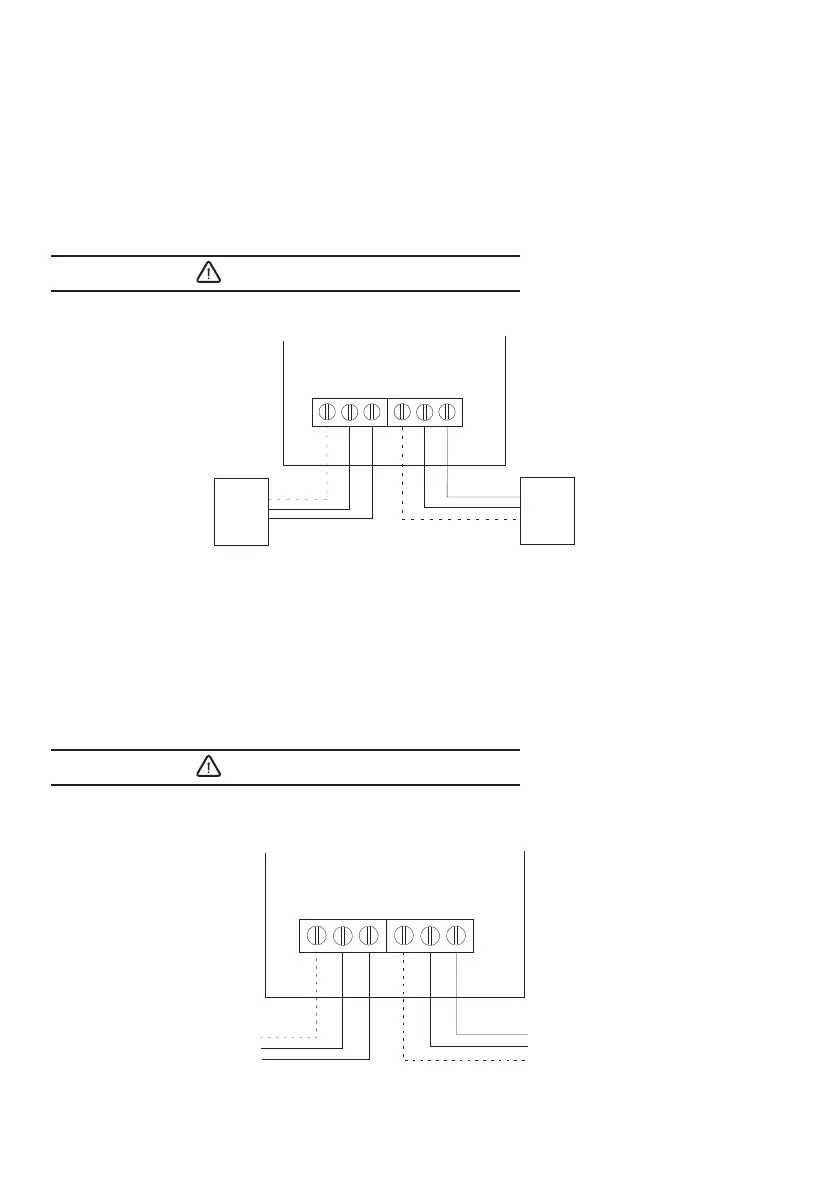

Loop powered beacon wiring (CAB382)
Connection details
Earth screen of cable to be continuous between beacons
WARNING
Do NOT use high voltage testers if any equipment is
connected to the system.
Wall sounder wiring (CAS381, CASB383)
Installation
Fix to mounting surface using two suitable screws - the rear gasket fits
underneath the base and the sounder gasket fits inside the base
Connection
WARNING
Do NOT use high voltage testers if ANY equipment
is connected to the system. Earth screen must be
continuous along entire length of loop.
ote: N Care should be taken to ensure the cable does not put stress
on the circuit board
EE
EE
IINN
OO UU TT
--
--
++
++
AA nnaalloogg uu ee AAdd dd rree ss ss aa bb llee LL oo oo pp
LL OO OO PP IINN
LL OO OO PP OO UU TT
E
E
IN
OUT
-
-
+
+
Analogue Addressable Loop
