84 INSTALLATION AND OPERATION MANUAL 25-16327-B November 2020 www.eaton.com
Section 4: Appendix

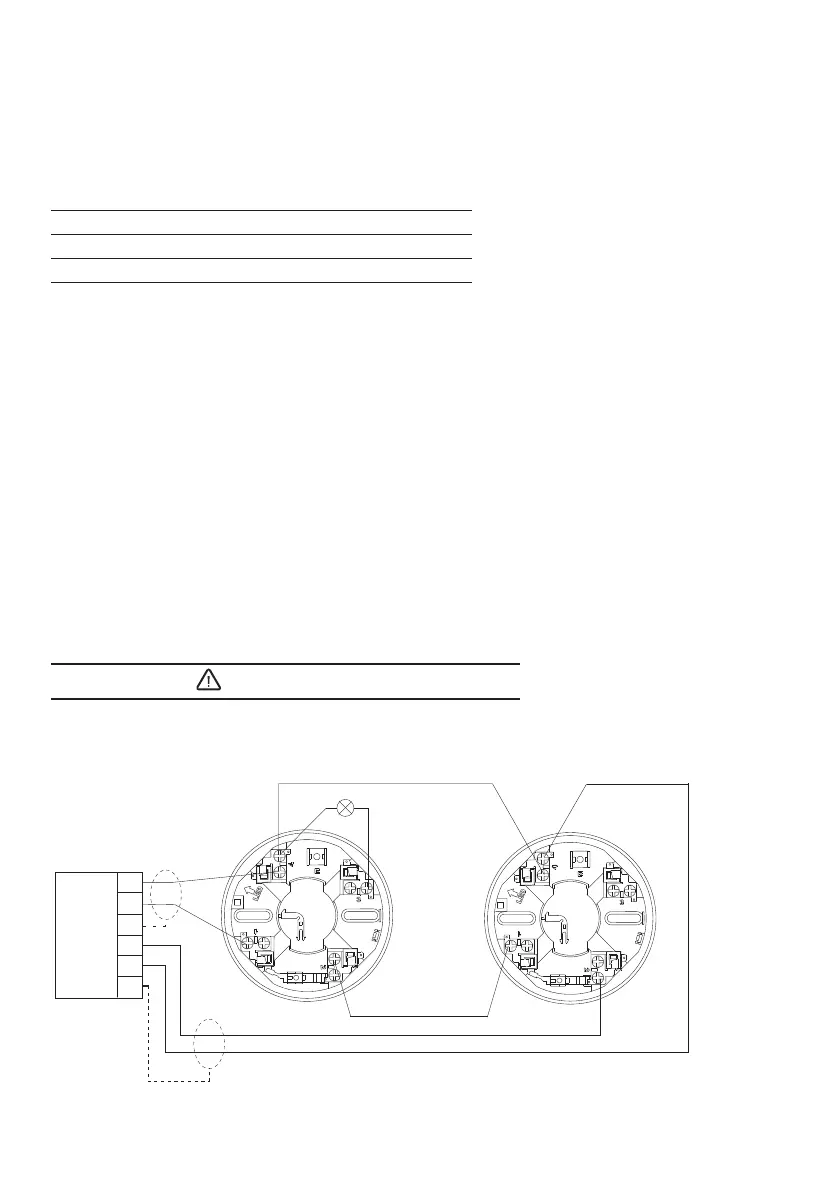

Detector base wiring (CAB300)
Supply voltage
18 - 30 V DC
Cable size
1.0 - 1.5mm²
Recommended cable types
FIRETUF, FP200 or MICC
Mounting hole centres
50 - 80mm
Wiring hints
•
Each terminal is suitable for clamping up to 2 wires
•
Clamping of 2 wires of very different diameters under one screw
is not recommended
•
Suitable for mounting to mounting boxes with 50-80mm fixing centres
General
If difficulty is experienced when mounting the sensor, this may be due
to the following:
•
Wiring causing an obstruction - move or shorten wires
•
Although the base is tolerant to uneven mounting surfaces, a very uneven surface
may cause the base to deform when the mounting screws are tightened down -
loosen screws to reduce this or slide base to a flat position
WARNING
DO NOT USE HIGH VOLTAGE TESTERS WHEN
SENSORS OR CONTROL PANEL ARE CONNECTED TO
THE SYSTEM.
++
SS ++
FF
FF ++
SS
__
__
__
__
__
__
__
__
__
__
RReemmoottee
IInnddiiccaattoorr
LLEEDD
((ooppttiioonnaall))
++VVIINN
-- VVEE CC OO MM OO UUTT
CC FF 33000000
AAnnaalloogguuee AAddddrreessssaabbllee
FF iirree AAllaarrmm PP aanneell
EE aarrtthh ssccrreeeenn oo ff ccaabbllee ttoo bbee ccoonnttiinnuuoouuss bbeettwwee eenn sseennssoorrss
LLoooopp SSttaarrtt
LLoooopp FFiinniisshh
-- VVEE CC OO MM IINN
