Section 3: Panel controls & indicators
Check auto config
To activate the touch screen, touch the top left corner of the screen until the screen
illuminates. To enter the supervisor mode touch the supervisor button and
enter the passcode.

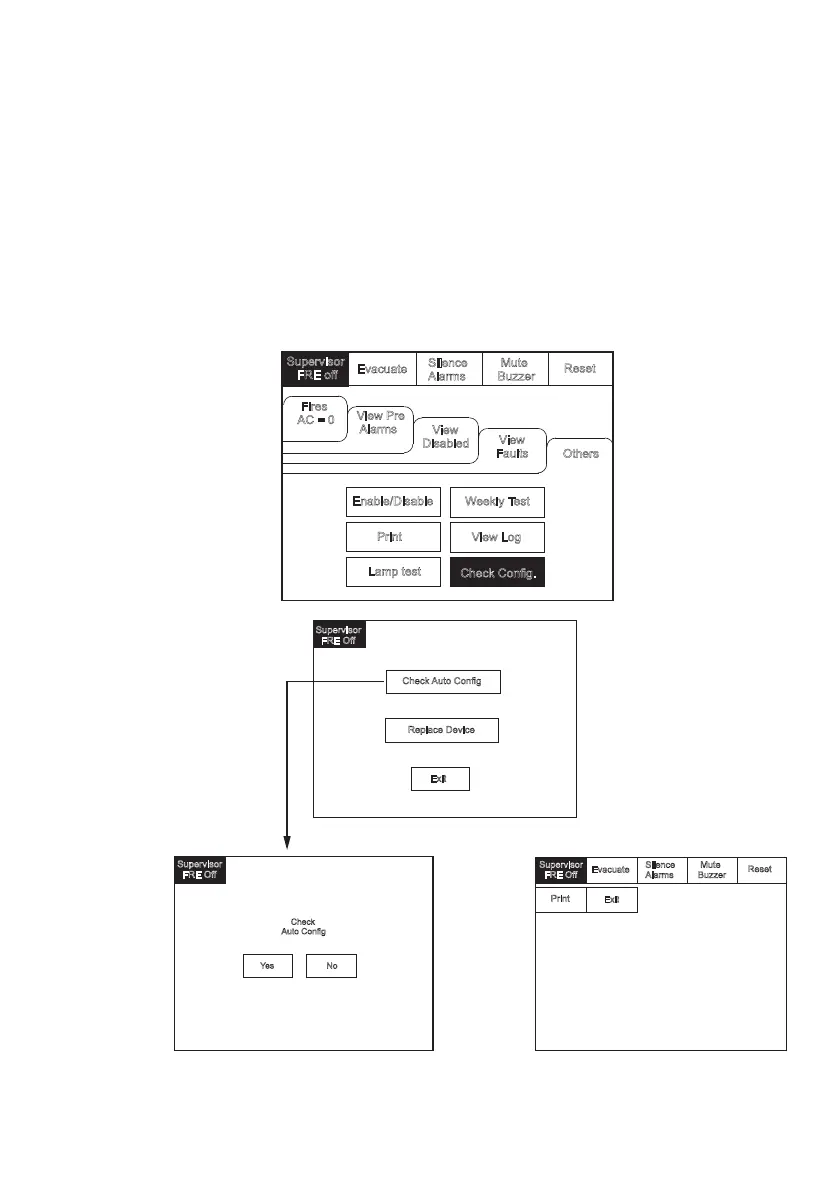

Enter the Supervisor Mode and Select the “Others” Tab. Press Check Auto Config.
This feature will scan the loop and pinpoint the exact location of any break in the loop
wiring and will also identify any changes in the loop configuration (e.g. New devices
added or changed device types).
Evacuate
Silence
Alarms
Mute
Buzzer
Reset
Supervisor
FRE off
Others
Print
Lamp test
Fires
AC = 0
View Pre
Alarms
View
Disabled
View
Faults
Weekly Test
Enable/Disable
View Log
Check Config.
Exit
Check Auto Config
Replace Device
Supervisor
FRE Off
Supervisor
FRE Off
Check
Auto Config
Yes
No
Exit
Print
Supervisor
FRE Off
Evacuate
Silence
Alarms
Mute
Buzzer
Reset
Press the
supervisor
mode button at
the top left of
the screen.
