Section 3: Panel controls & indicators
Test device (access level 3)
To activate the touch screen, touch the top left corner of the screen until the screen
illuminates. To enter the service mode touch the supervisor button and enter
supervisor passcode.
Service
FRE Off
Exit
Exit
Mute
B
uzzer
Mute
B
uzzer
Reset
Reset
Commission
Configure
Test
Enable/Disable Address
001 Lobby, Build 1, 1st floor
Loop: 1, Zone: 2, Type: Optical
002 Main Reception, Building 1, 1st floor
Loop: 1, Zone: 2, Type: Optical
003 Storage/archive, Building 1, 1st floor
Loop: 1, Zone: 2, Type: Optical
004 Meeting Room 1, Building 1, 1st floor
Loop: 1, Zone: 2, Type: Optical
Show
D
etectors
Show
R
elay
Reset
Show
All
Show
A
larms
Test Devise
Loop1 , Address 1
Yes
Service
FRE Off
Global Flashing LED on/off
Test Zone
Sounder Level Test Mode
One Man Walk Test
Test Device
Touch row to test
Exit
Service
FRE Off
No

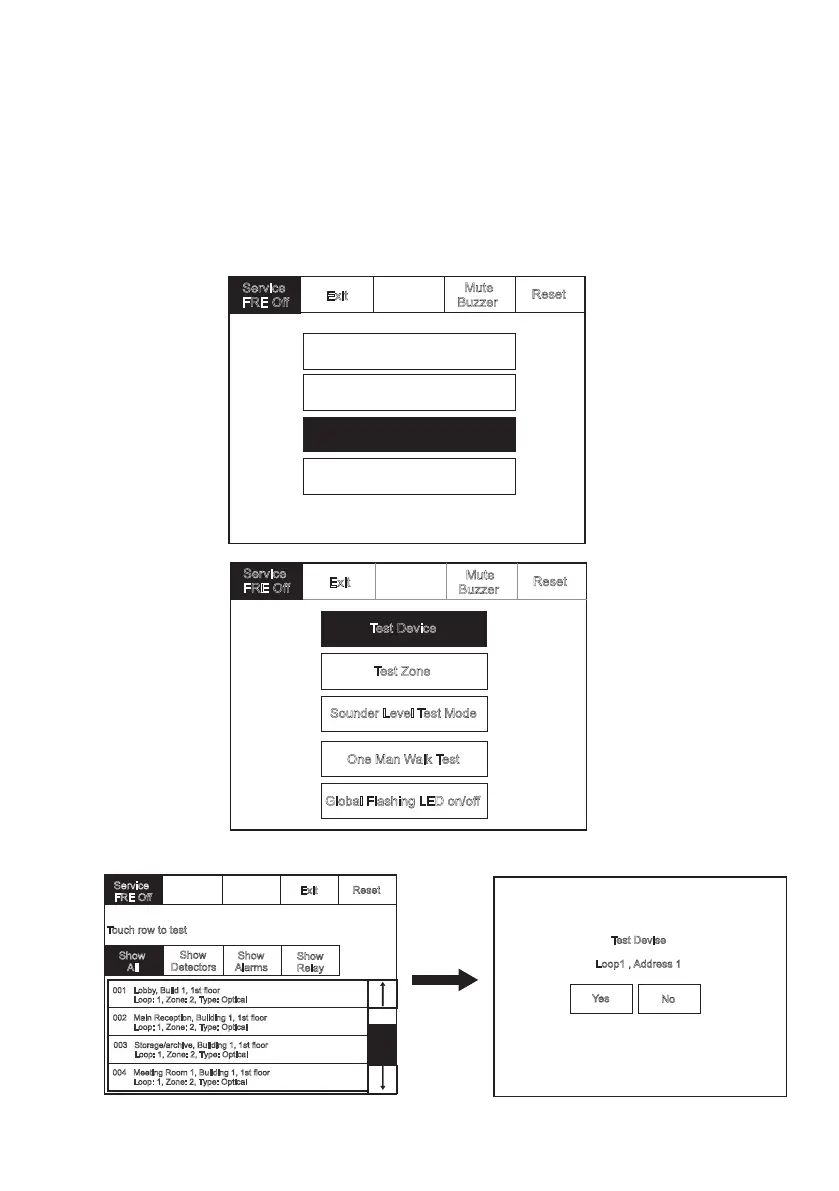

Enter the service mode.
Select “Test”.
Select the “Test device”
button.
Touch row to select device to test.
