89INSTALLATION AND OPERATION MANUAL 25-16327-B November 2020 www.eaton.com
Section 4: Appendix
Wall Sounder VAD (CASB393)
Installation
1. Installation is simple using first fix base.
2. First fix base is mounted to surface via 2 fixings holes.
3. Cable entry can be rear or side
4. Main body is then clipped into place on base, main body locks into place when
pressed into position.
5. Cables pass through aperture in sounder body and terminate at the front.
6. Connections are to connector block on main sounder body.
System functionality
1. Volume and tone are set by control panel, no need to access sounder to
alter setting.
2. Soft addressed.

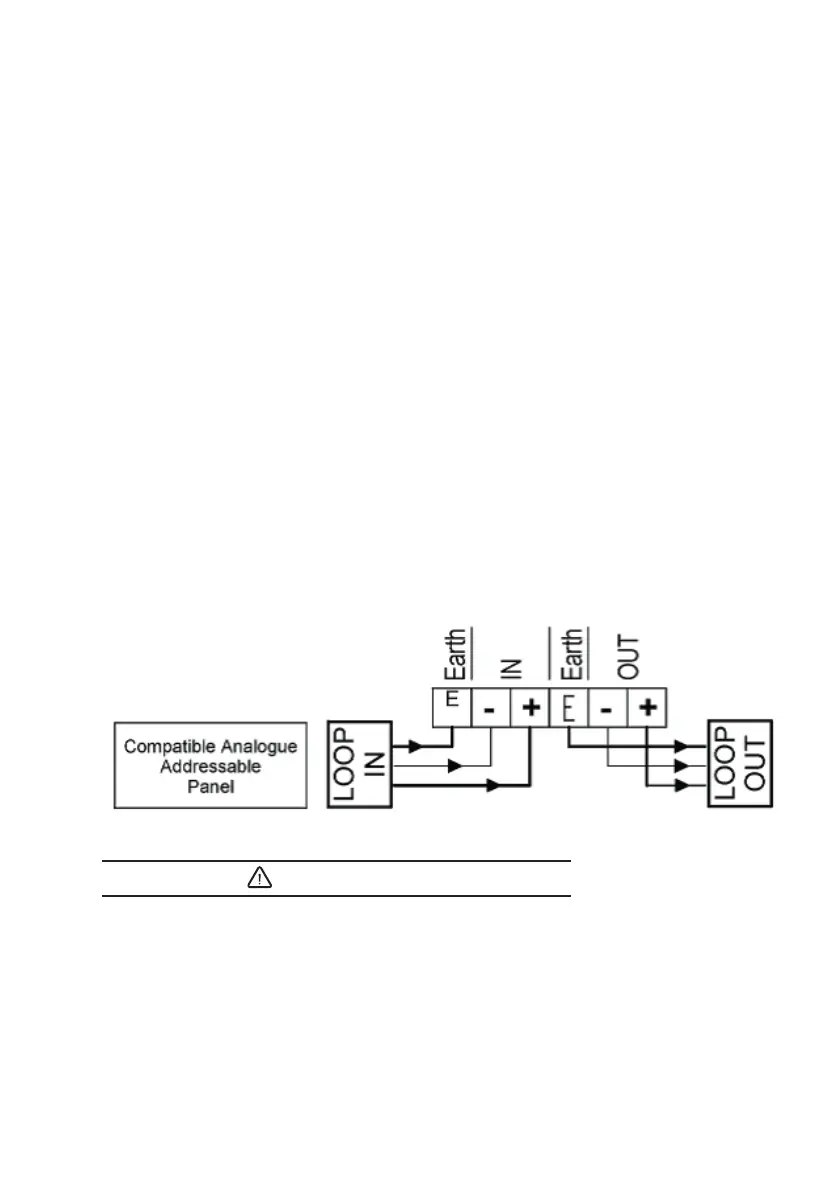

Standard connections
WARNING
Do NOT use high voltage testers if ANY equipment
is connected to the system. Earth screen must be
continuous along entire length of loop.
