ADJUSTMENT OF THE COMPARISON THRESHOLDS IN RESISTANCE OR VOLTAGE DROP
The device includes two comparison thresholds to verify if the measured item is PASS or FAIL.
These thresholds can be a resistance or a voltage (according to the recommendations of the
EN60204-1 standard)
The High Threshold defines the maximum limit of validity of the measurement.
The Low threshold defines the minimum value that the element measured must reach.
An element tested is PASS if its value is lower than the High Threshold and higher than the Low
Threshold; if not the element is declared FAIL.
The High Threshold must always be greater than the Low Threshold.

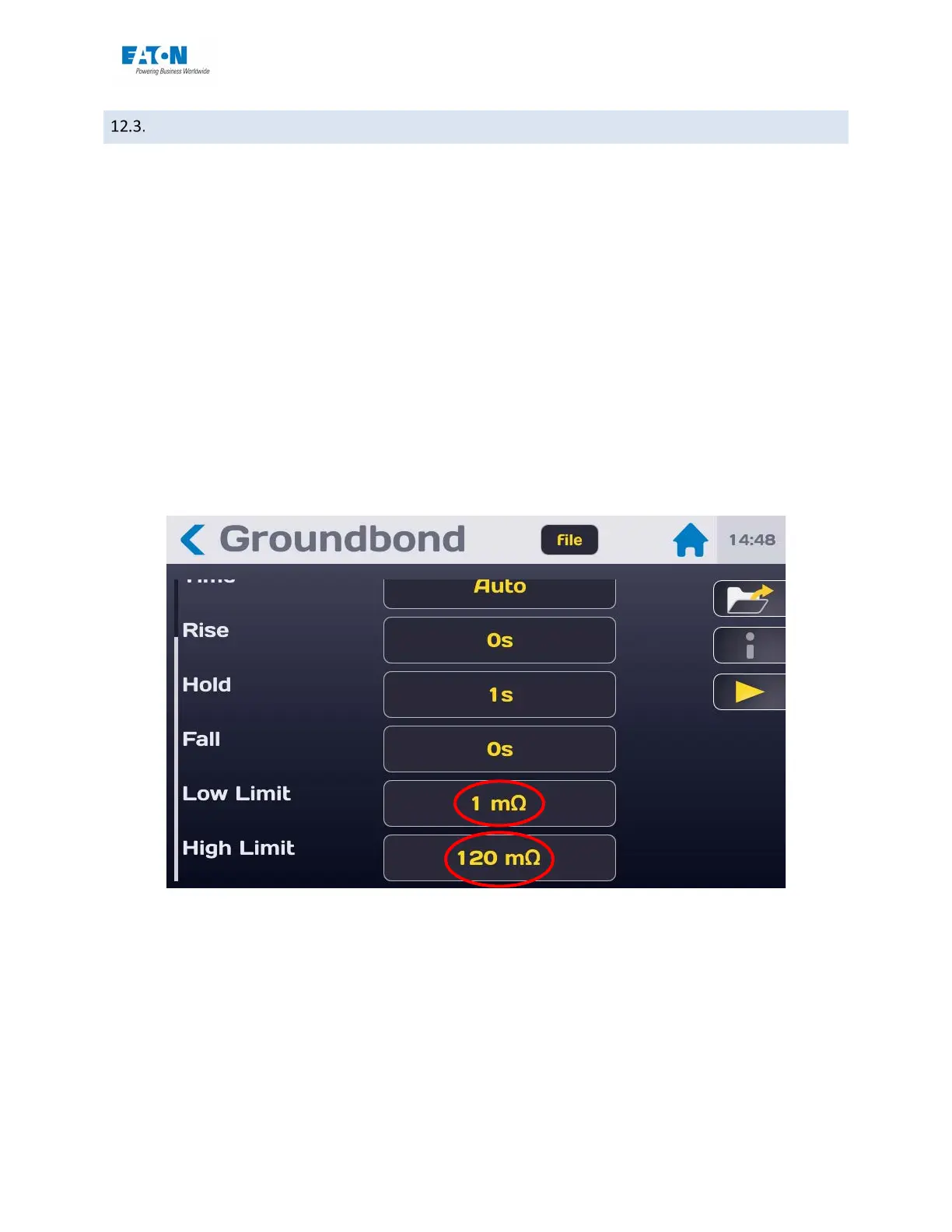

To access the High and Low threshold settings scroll the ground continuity settings screen to
display:
