User manual SEFELEC 5x Series 196 v1.06

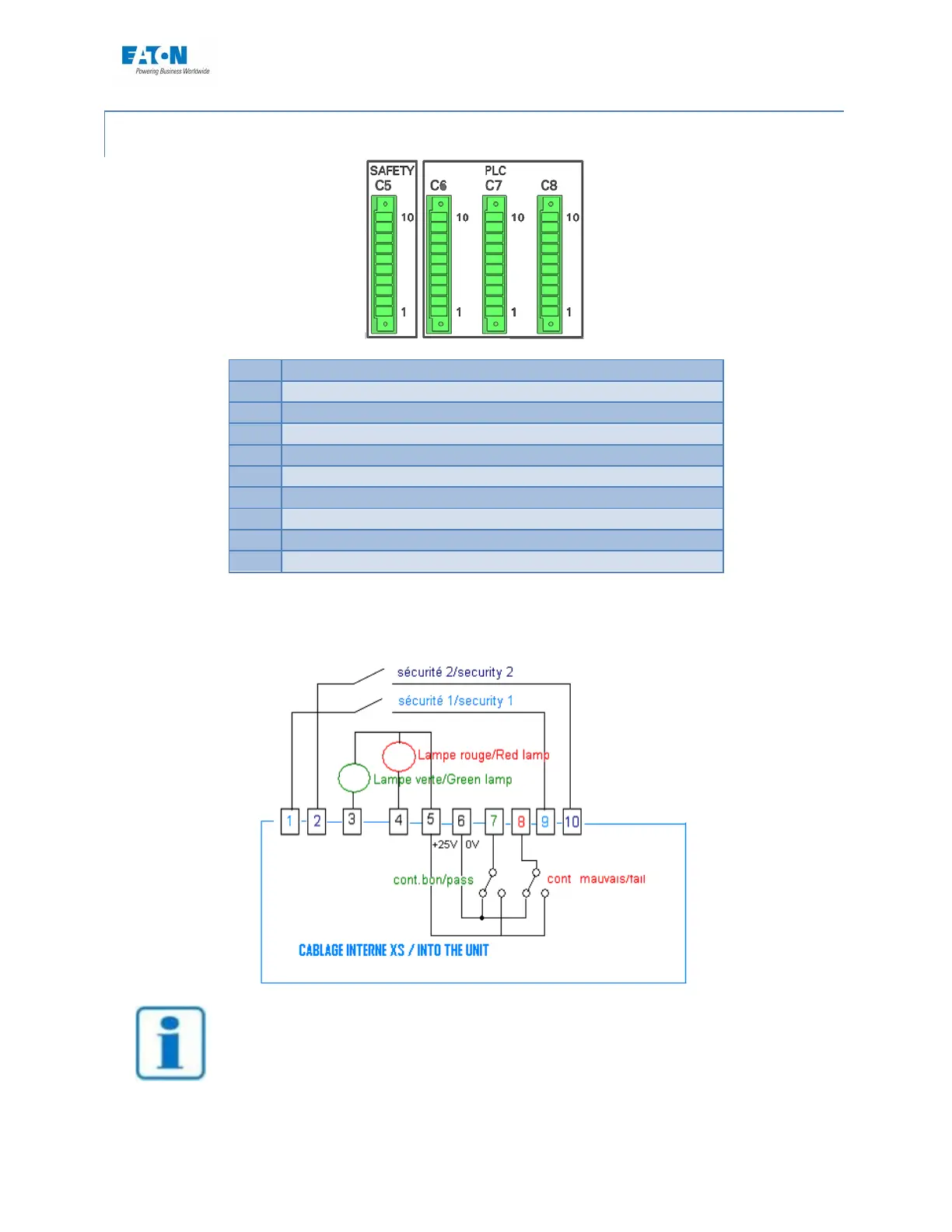

20.1.1. C5 SAFETY CONNECTOR
1
Safety loop contact: to be linked to 9
2
Safety loop contact: to be linked to 10
3
Green light
4
Red light
5
25V common line, red-green light
6
0VG
7
PASS contact (= +25 V)
8
FAIL contact (= +25 V)
9
Safety loop contact: to be linked to 1
10
Safety loop contact: to be linked to 2
Connection example of the red/green lights, of the contacts of the safety loop and con-
tacts PASS/FAIL:
NOTE
The contacts of the safety loop must be free of any potential (24
VDC, 230 VAC,
ground, etc.) they are protected by thermal fuses, in the
event of an over-current
wait 15 seconds to try again.
