User manual SEFELEC 5x Series 144 v1.06

14.1.8. PAUSE STEP:

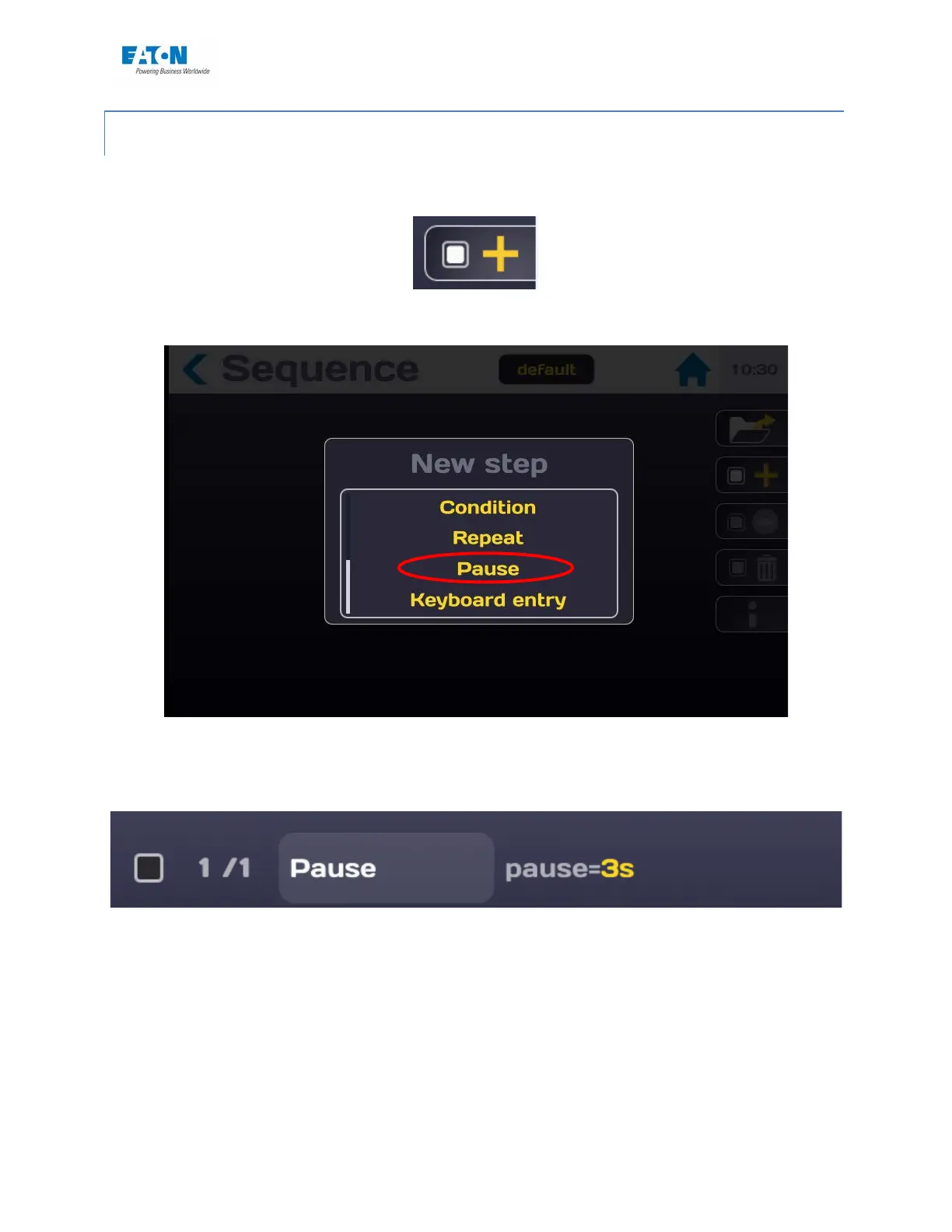

The Pause step allows us to insert a timed pause in the sequence of steps of a sequence. To

view the drop-down list of the steps press the icon:

Choose the Pause function in the list of steps:

The step is displayed as follows:

See the general rules of the sequence mode in paragraph 11-1.

Pause requires the following information:

• The Pause timer

o Enter the time in seconds with a resolution of 0.1 second
