14.1.4. IMAGE MESSAGE STEP:

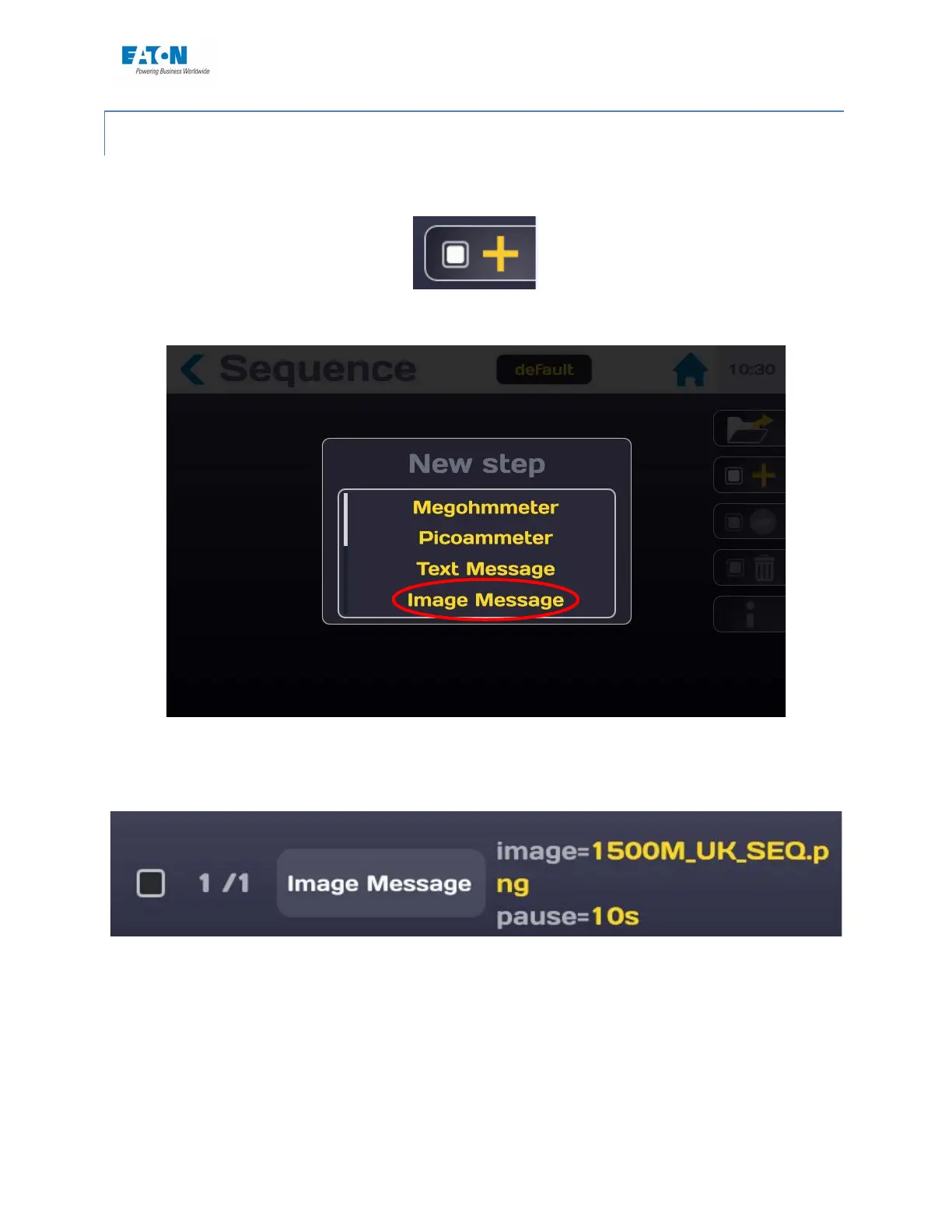

The Image Message step allows us to insert an image to inform or guide the operator. To view
the drop-down list of the steps press the icon:
Choose the Image Message function from the list of steps:
The step is displayed as follows:
See the general rules of the sequence mode in paragraph 11-1.
Press the Message area in yellow, it is possible to enter a text for the title of the photo. Press
Edit the Title to access an input keyboard to give a title to the photo. In the mode without timer
(OFF) the photo must be acknowledged by the operator pressing OK, in the case of the mode
with timer (ON), the photo disappears after the specified period of time.
On the Image Line Press Modify to display the list of images. Scroll through the list of available
images and select by pressing on the name of the image.
