INSTALLATION OF THE SOCKETS IN THE REAR PANEL

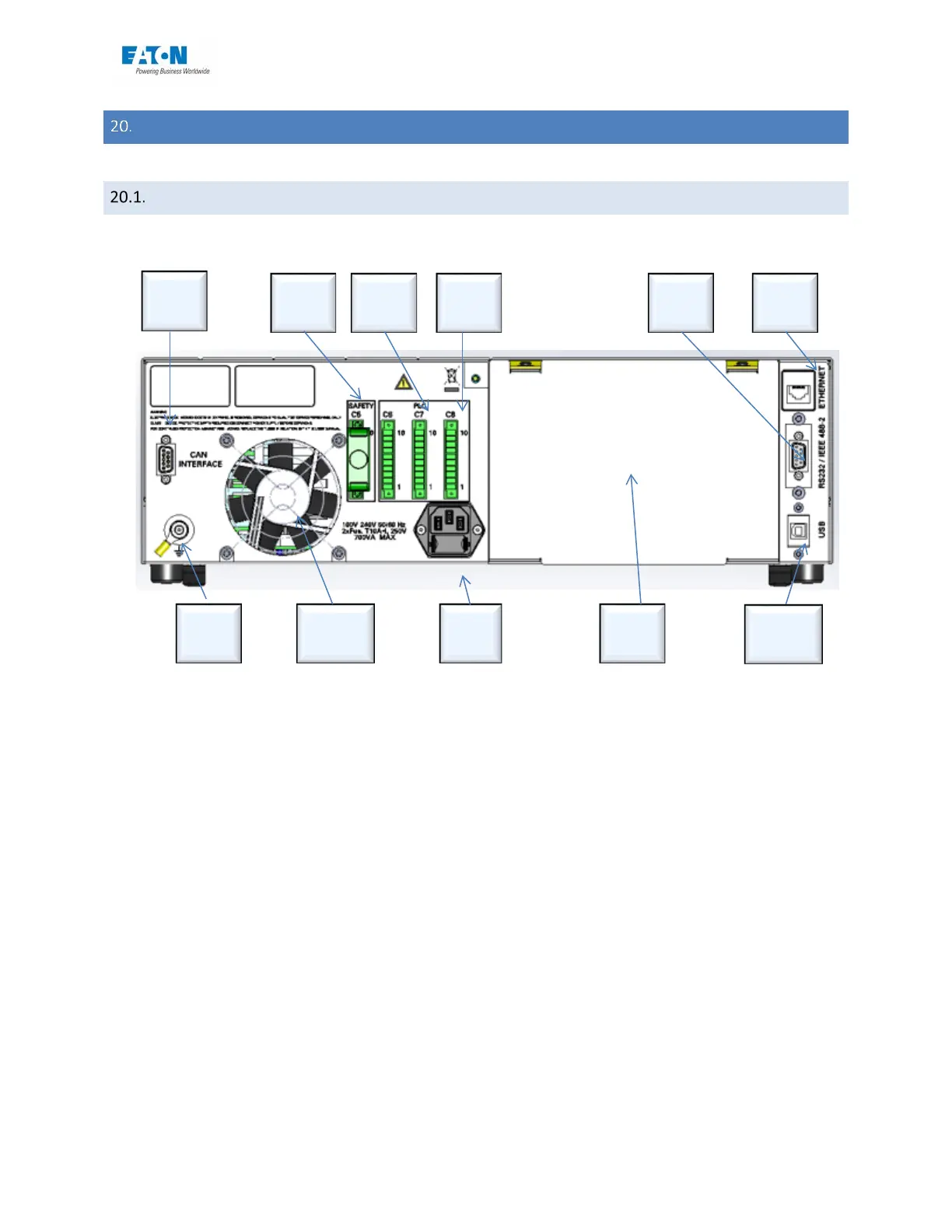

REAR PANEL DESCRIPTION
The rear face carries the following elements:
 Z1 Mains supply sockets with fuses incorporated
 Z2 Ground connection
 Z3 Exit area of the measurement cables in the case of the rear face outlet option.
 Z4 24-point ribbon connector for the IEEE-488-2 interface
 Z5 10-pole terminal block for the safety loop.
 Z6 10-pole terminal block for the PLC command.
 Z7 10-pole terminal block for the PLC command.
 Z8 SUB-D 9-point connector for the control CAN bus of an external matrix
 Z9 RJ45 base for the Ethernet connection.
 Z10 Mini USB base for the USB connection.
 Z11 Fan
Z1
Z9 Z4
Z10
Z6
Z7 Z5
Z2
Z3
Z8
Z11
