User manual SEFELEC 5x Series 132 v1.06
14.1.1. MEGOHMMETER STEP AND OTHER MEASUREMENT FUNCTIONS:
The Megohmmeter step allows us to perform a measurement of the insulation resistance with a

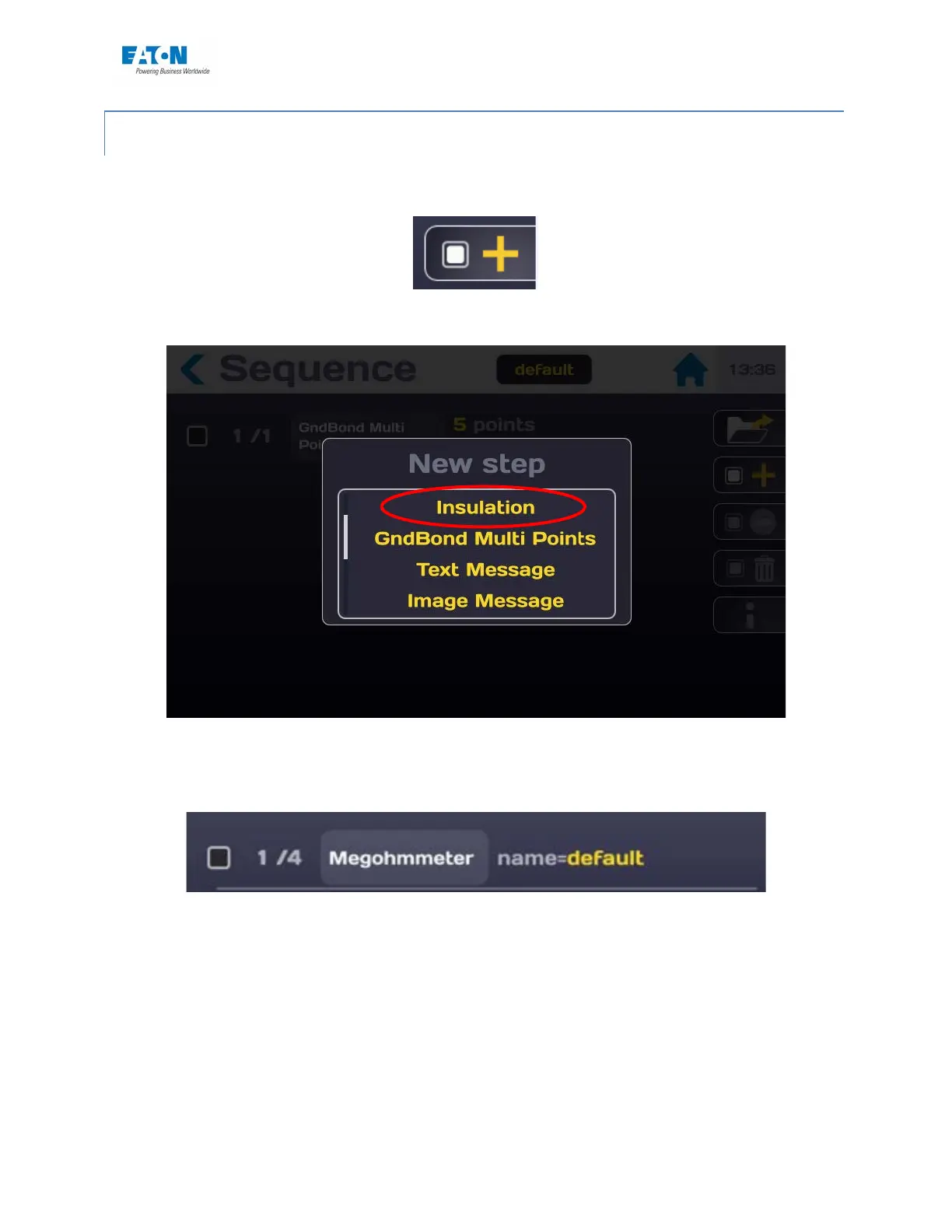

chosen setting file. To view the drop-down list of the steps press the icon:
Choose the Megohmmeter function from the list of steps:
It is displayed as follows:
See the general rules of the sequence mode in paragraph 11-1.
Select the settings file required for this test step by pressing the area in yellow. If the file does
not exist, create it by going into the Megohmmeter function from the Home menu.
Proceed in the same way for the other measurement functions
