Eaton SEFELEC 56-D User Manual

User manual SEFELEC 5x Series 146 v1.06

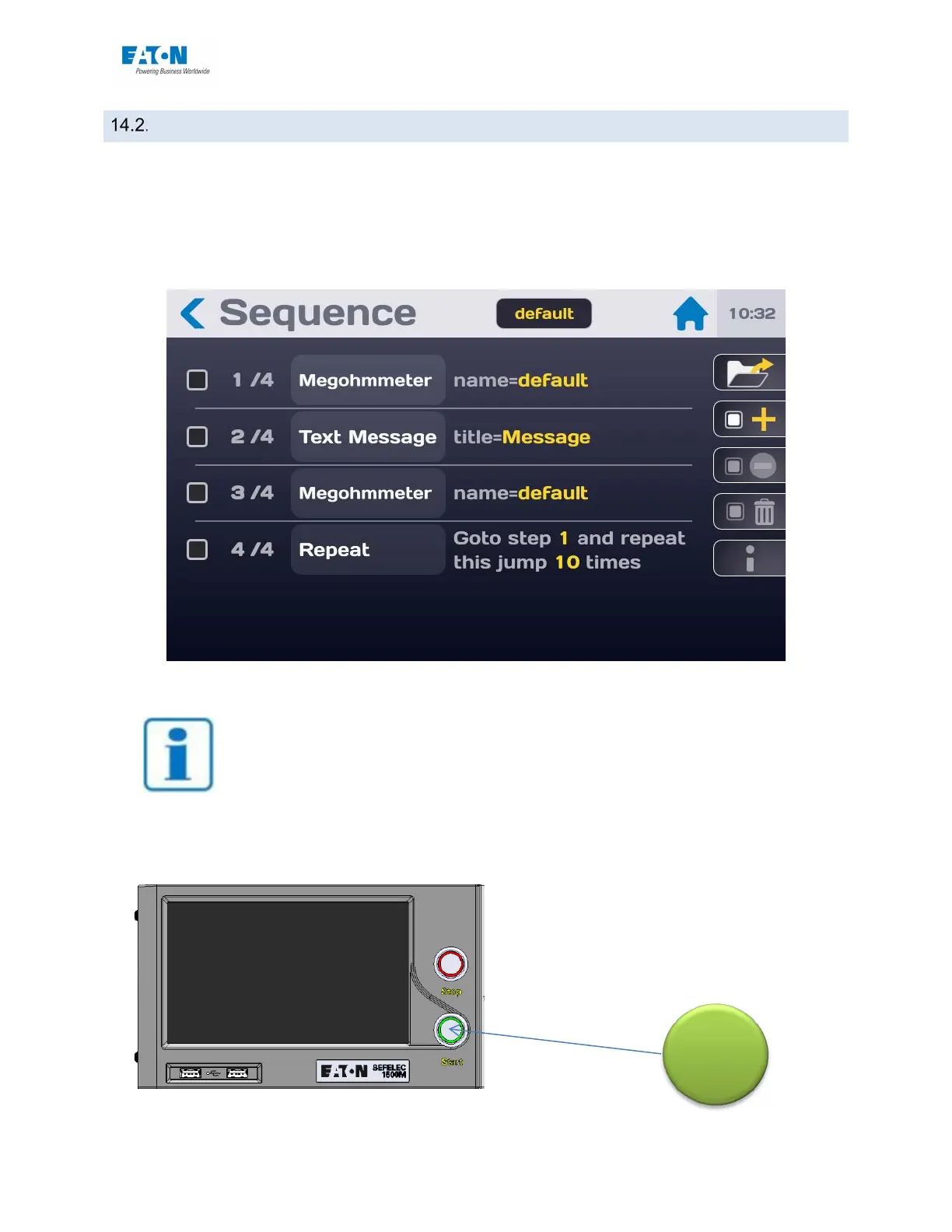

EXECUTION OF A SEQUENCE
Either a "default" sequence name calling a Megohmmeter function with a set of settings called
"default" settings followed by a text message and a call to a Megohmmeter function with a set of
settings called "default" settings and a looping of 10 times.
This corresponds to the following sequence:
When the Start button on the front of the device is illuminated in green, it is possible to start the
sequence
NOTE
Press the Start push button. For safety reasons, it is necessary to press the
button for > 1 second for the device to switch into measurement mode.
If the
button is pressed for too short a time a message will be displayed momentarily
on the LCD screen.
START

Eaton SEFELEC 56-D Specifications

General

Brand	Eaton
Model	SEFELEC 56-D
Category	Test Equipment
Language	English
