28

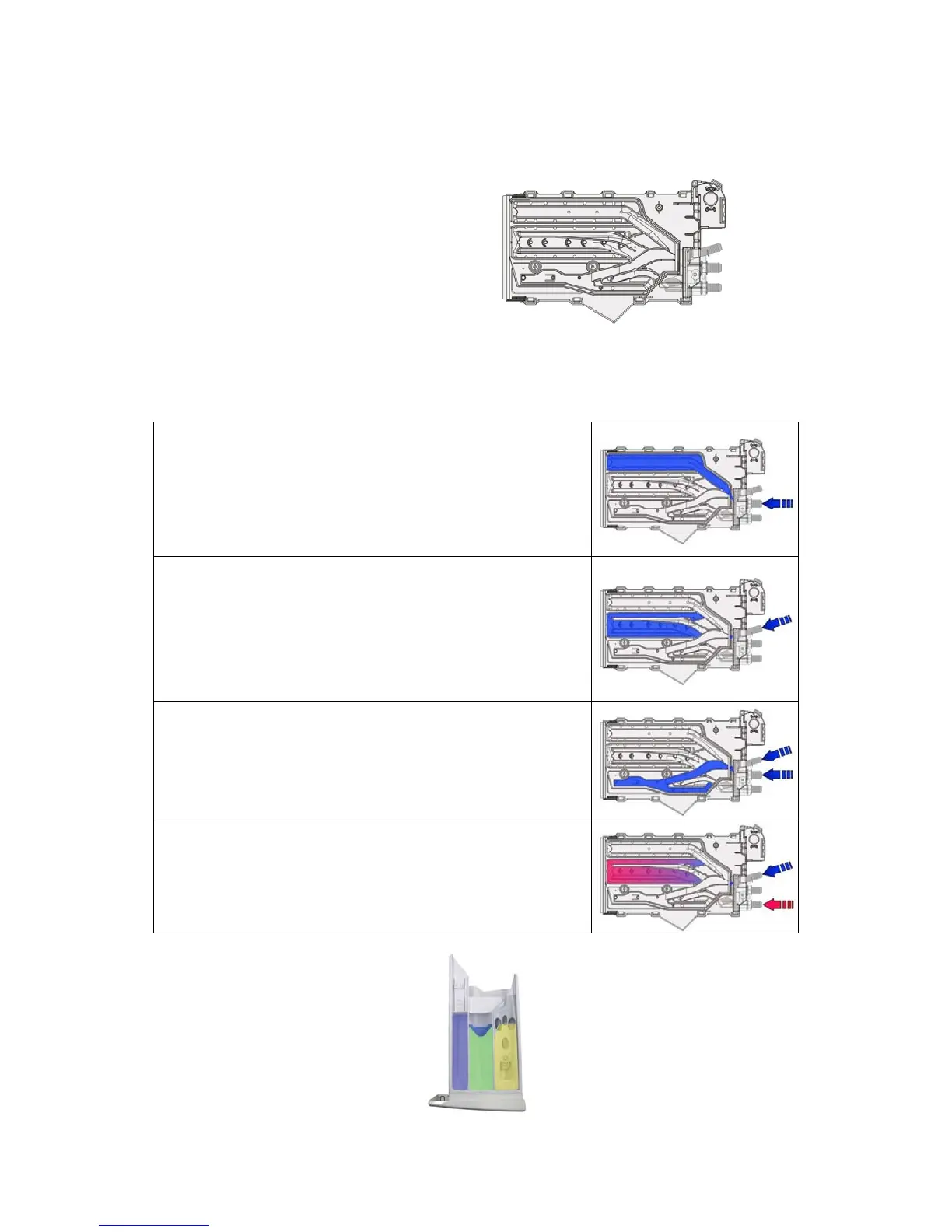

10.1 Detergent container
The water in the detergent c is filled through one solenoid valve for cold water (with one inlet, and 3 outlets)
and one for the hot water (with one inlet and one outlet);
Upper part of detergent cointainer
10.1.1 Operating principle
Water fill to pre-wash compartment
(pre-wash solenoid)
The detergent in compartment “a” is loaded at the start of the
pre-wash phase.
Water fill to wash compartment
(wash solenoid)
Compartment “b” is used to contain the detergent loaded at
the start of washing.
Water fill to conditioner compartment
(pre-wash and wash solenoid valves)
Compartment “c” is used for the conditioner, which is loaded at
the start of the final rinse. The pre-wash and wash solenoid
valves are activated simultaneously.
Hot water filling
(hot water solenoid)
The hot water solenoid valve is activated to fill water into the
washing compartment “b” together with the cold water.
