Electrolux WE170P Service Manual

Technical Support - DMM 73/80 599 74 98-60 Rev.00
12.4.5 Tub suspension springs
 Left spring

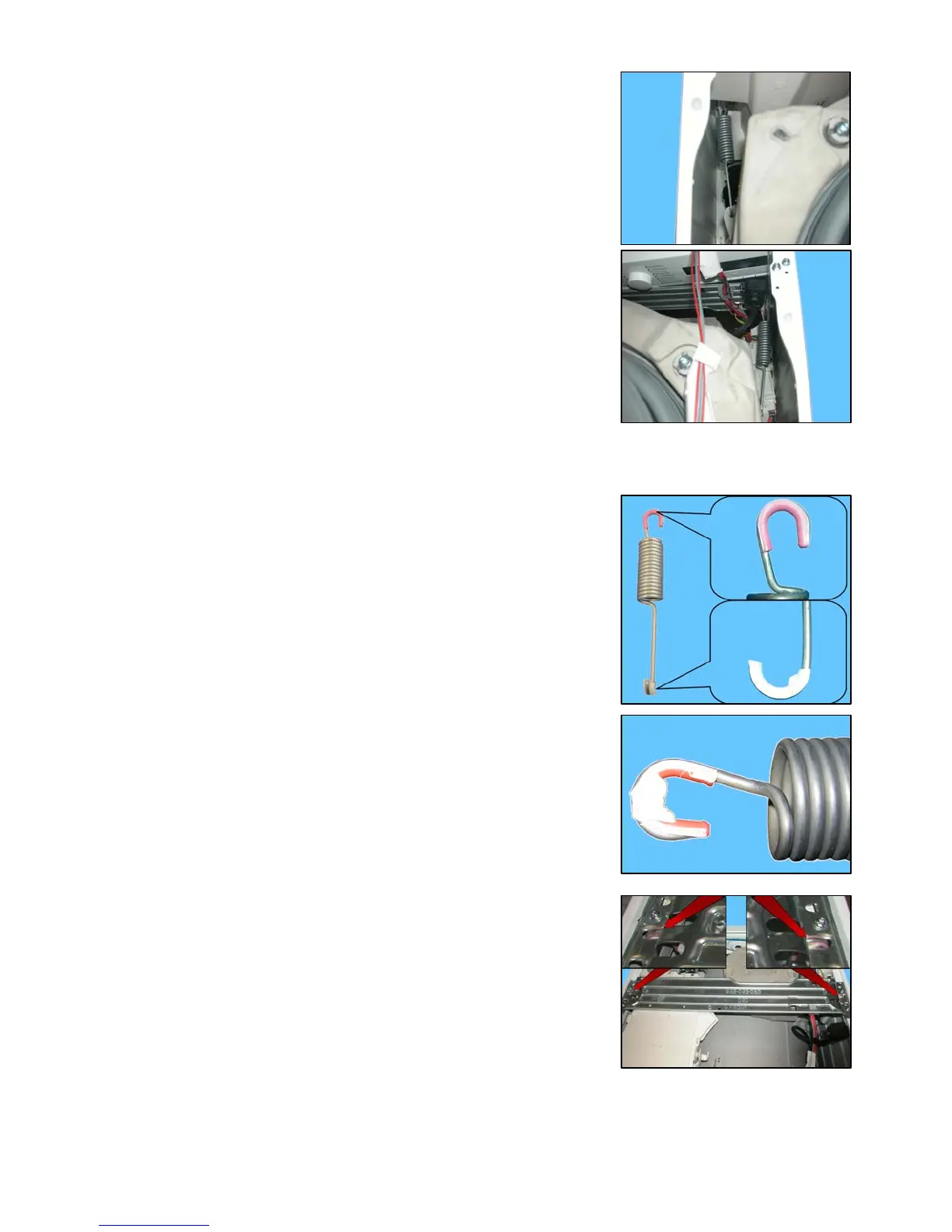

Attach the spring as shown in the figure: the shortest leg towards the
crosspiece, whereas the longest leg towards the welded tub.
 Right spring
The instructions provided for the left spring also apply to the right spring.
When reattaching the springs (after repair work which required their removal), make sure that the bushings shown in
the figure are featured on both ends.
Pay attention to the differences between the bushings (see enlarged details).
Spare bushings are available
Apply some grease on either end of the spring.
Attachment position of springs to top crosspiece.
