Electrolux WE170P Service Manual

Technical Support - DMM 61/80 599 74 98-60 Rev.00
Remove the control panel and position it as shown in the figure, making sure
you introduce a protection to prevent scratching it.

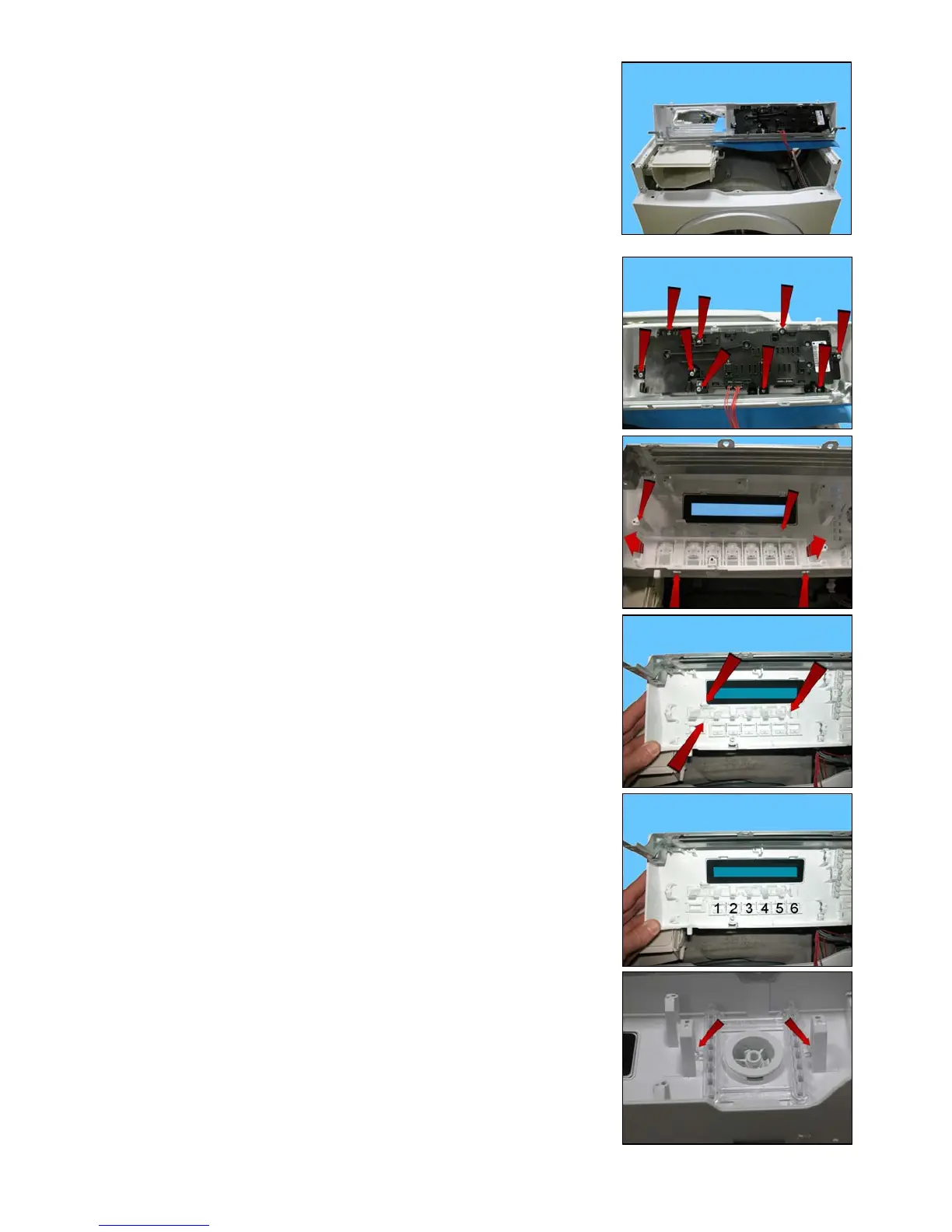

12.2.4 Display board/light diffuser/button springs/buttons assembly
Remove the worktop.
Remove the control panel.
Remove the screws and release the hooks which secure the board assembly
to the control panel.
The dial and the dial cover remain fixed to the control panel.
 Buttons spring
Disconnect it from the control panel and remove it from the two side pins.
 Light diffuser
Unhook the three hooks that fasten it to the control panel.
 Buttons
The buttons have a number printed on them. See the figure for numbers.
 Selector light diffuser
To remove, unhook the hooks that fasten it to the control panel.

Electrolux WE170P Specifications

General

Door hinge	Left
Water fill	Cold, Hot
Drum volume	67 L
Control type	Buttons, Rotary
Display type	LCD
Loading type	Front-load
Drum material	Stainless steel
Product color	Gray
Built-in display	Yes
Appliance placement	Freestanding
Dispenser tray type	3-way
Drying capacity	- kg
Cycle time (max)	210 min
Washing capacity	8 kg
AquaStop function	No
Spin-drying class	-
Cycle time washing	70 min
Maximum spin speed	- RPM
Minimum spin speed	1400 RPM
Noise level (spin)	75 dB
Noise level (wash)	49 dB
Noise level (drying)	- dB
Number of washing programs	16
Cycle time (quick washing program)	20 min
Connected load	2000 W
AC input voltage	230 - 240 V
AC input frequency	50 - 60 Hz
Energy efficiency scale	A to G
Water consumption per cycle	47 L
Water consumption washing per cycle	65 L
Energy consumption washing per cycle	0.7 kWh
Water consumption washing & drying per cycle	- L
Energy consumption washing & drying per cycle	- kWh

Weight and Dimensions

Depth	624 mm
Width	597 mm
Height	850 mm
Weight	80.5 g
Package depth	701 mm
Package width	630 mm
Package height	900 mm
Package weight	82 g
Depth with door open	1066 mm
