Technical Support - DMM 78/80 599 74 98-60 Rev.00
12.6.7 Welded tub assembly
Remove the worktop.
Remove the control panel.
Remove the front panel.
Remove the detergent tray.
Remove the upper counterweight.
Remove the front counterweight.
Remove the back panel.
To remove the washing unit assembly, disconnect:
All the tub pipes, the wiring connectors that connect the heating element, the NTC probe, remove the belt and the
motor (to lighten the tub).
Lay the appliance on its back (making sure you place a polystyrene or cardboard layer on the floor to prevent
damaging the cabinet).
Take the tub out of the washing machine.

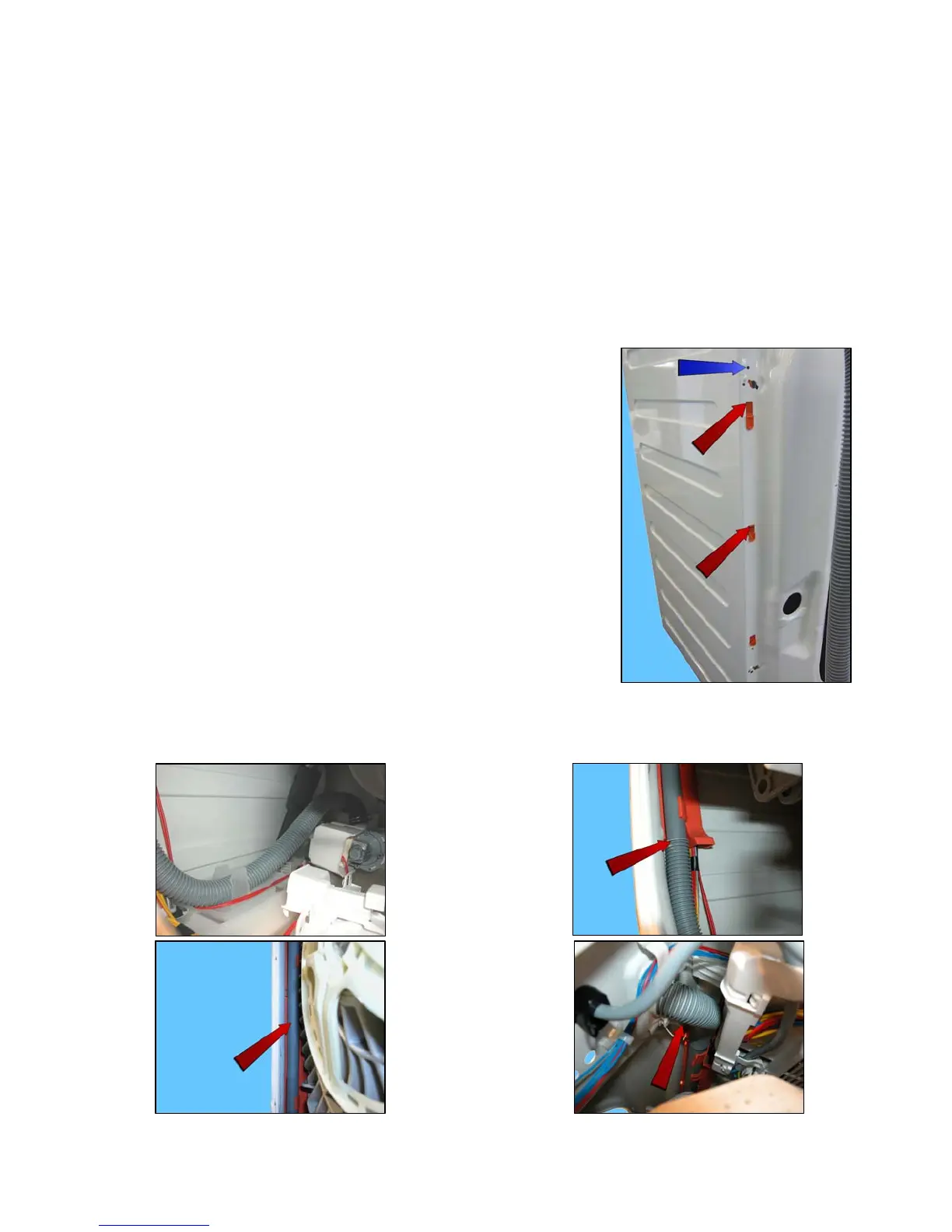

12.6.8 Drain pipe/cabling support
When fixing the drain pipe/cabling support make sure that the two stops
(indicated by the red arrows) fit into their housings, locking the support to
the unit.
If the fixing is not stable and there is a risk of it coming out of its position,
fasten the support to the unit with a screw (6.5x 3.5 mm) screwed into the
hole indicated by the blue arrow.
12.6.9 Main drain pipe
Arrange the drain pipe as shown in the figures.
1
2
3
4
