Electrolux WE170P Service Manual

35
 When replacing any of the components, please refer to the code shown in the
list of spare parts relating to the appliance being repaired.

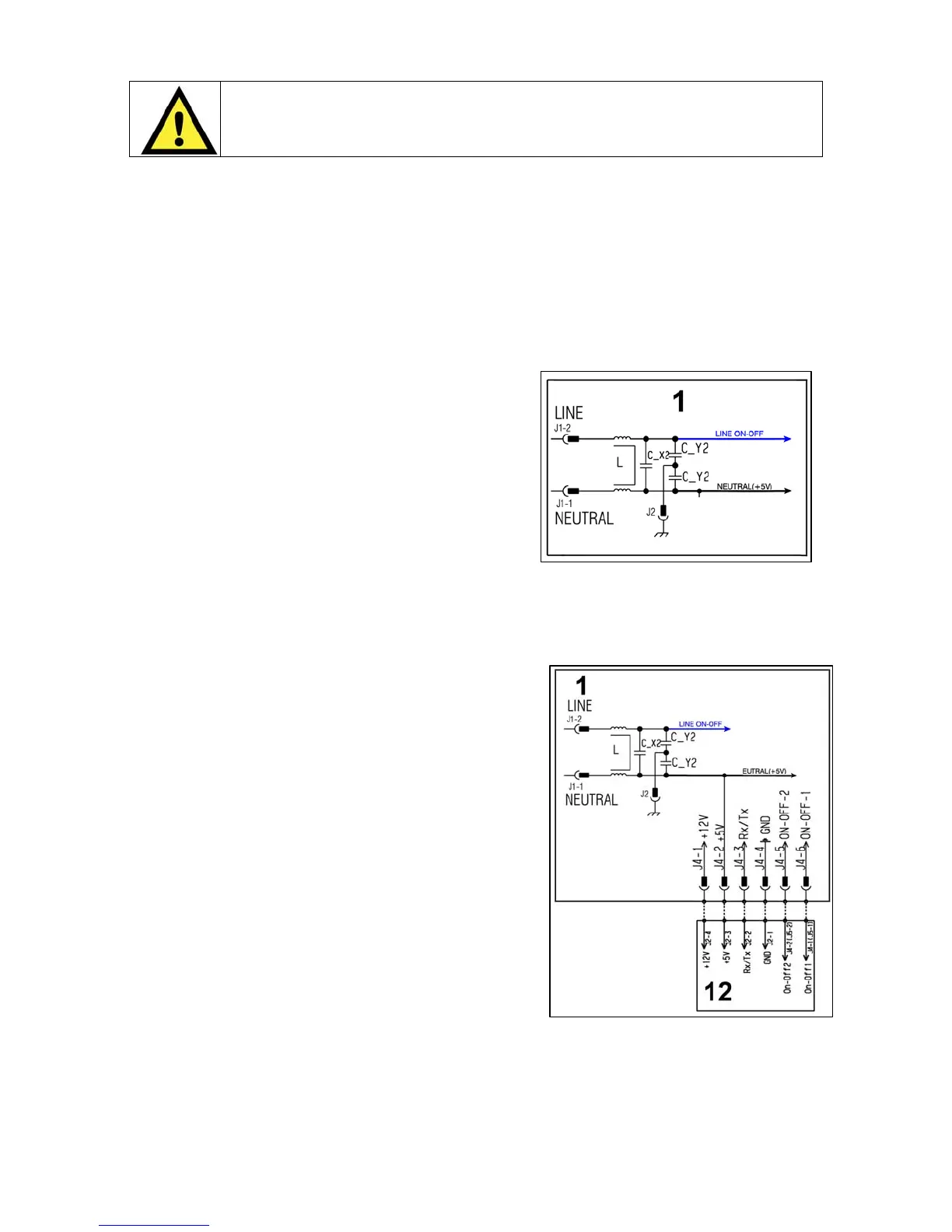

10.8 Anti-disturbance filter
10.8.1 General characteristics
This device is connected to the electricity power line input of the appliance and avoids the emission of
radio frequency disturbances in the power network. It is incorporated into the main board.
1. Main circuit board
10.9 Display board
The main circuit board (1) supplies the power supply voltage
to the control/display board (12).
It is possible to select the programmes by turning the
selector. The options can be selected by pressing/touching
the buttons/keys and the START/PAUSE button is used to
start the machine or pause it.
The buzzer - where featured - is powered by the display
board.
1. Main circuit board
12. Display board

Electrolux WE170P Specifications

General

Door hinge	Left
Water fill	Cold, Hot
Drum volume	67 L
Control type	Buttons, Rotary
Display type	LCD
Loading type	Front-load
Drum material	Stainless steel
Product color	Gray
Built-in display	Yes
Appliance placement	Freestanding
Dispenser tray type	3-way
Drying capacity	- kg
Cycle time (max)	210 min
Washing capacity	8 kg
AquaStop function	No
Spin-drying class	-
Cycle time washing	70 min
Maximum spin speed	- RPM
Minimum spin speed	1400 RPM
Noise level (spin)	75 dB
Noise level (wash)	49 dB
Noise level (drying)	- dB
Number of washing programs	16
Cycle time (quick washing program)	20 min
Connected load	2000 W
AC input voltage	230 - 240 V
AC input frequency	50 - 60 Hz
Energy efficiency scale	A to G
Water consumption per cycle	47 L
Water consumption washing per cycle	65 L
Energy consumption washing per cycle	0.7 kWh
Water consumption washing & drying per cycle	- L
Energy consumption washing & drying per cycle	- kWh

Weight and Dimensions

Depth	624 mm
Width	597 mm
Height	850 mm
Weight	80.5 g
Package depth	701 mm
Package width	630 mm
Package height	900 mm
Package weight	82 g
Depth with door open	1066 mm
