Electrolux WE170P Service Manual

Technical Support - DMM 75/80 599 74 98-60 Rev.00
12.5 Accessing the rear part
12.5.1 Back panel
Loosen the screws that fix it to the cabinet.
12.6 From the back panel, you can access
1. Belt
2. Plastic pulley
3. Inverter
4. Motor
5. Heating element
6. Rear shock absorber
7. Welded tub assembly
8. Drain pipe/cabling support
9. Main drain pipe

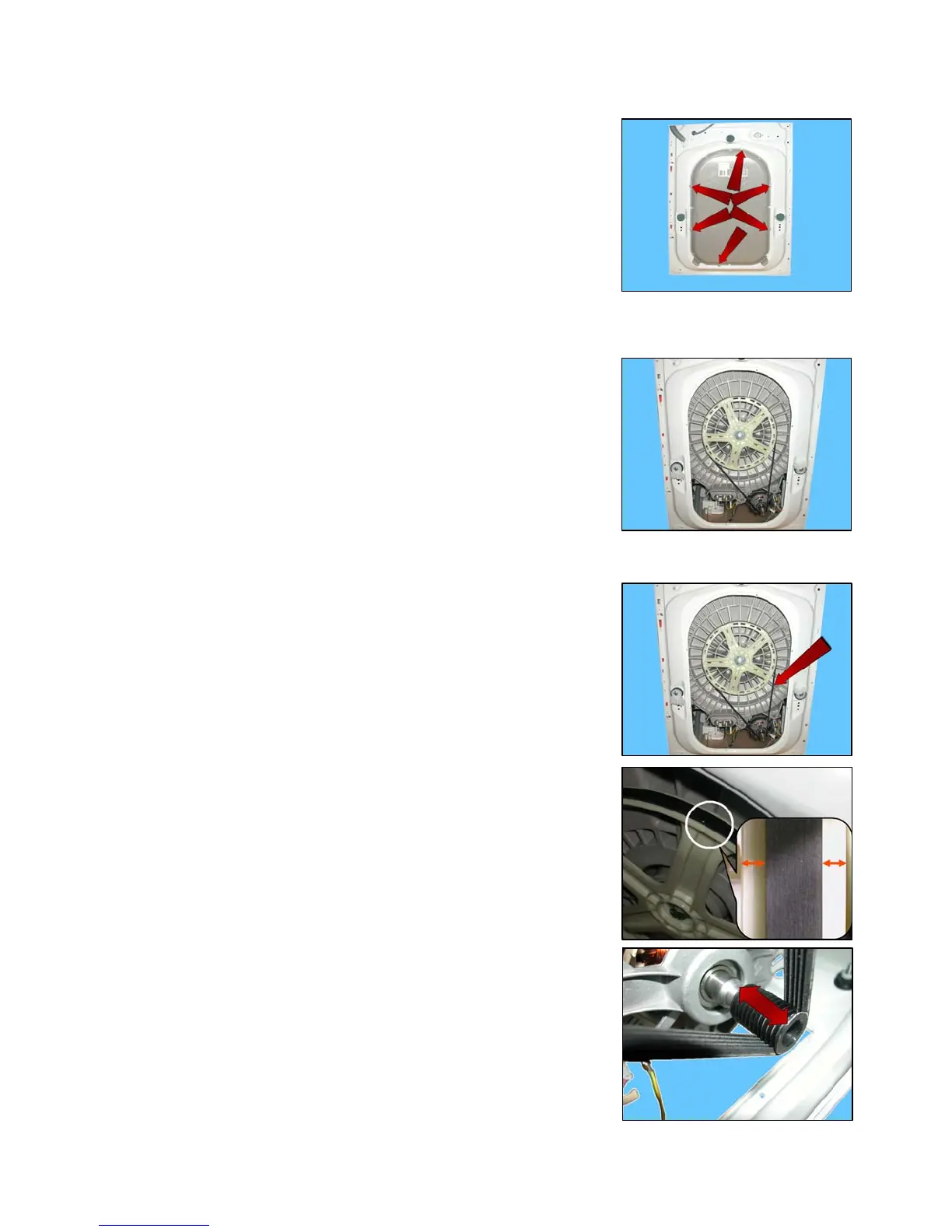

12.6.1 Belt
Remove the back panel.
Take the belt, turning the pulley, and remove it.
When reassembling:
Position the belt and align it with the centre of the pulley ( 273 mm) as
shown in the figure.
Turning the pulley, check that the belt positions itself and remains in the
central part of the pulley.
If necessary, adjust the position of the belt on the drive pulley, so that it is
correctly positioned.
1
2
3
4
5
6
7
8
9
10
