Electrolux WE170P Service Manual

45

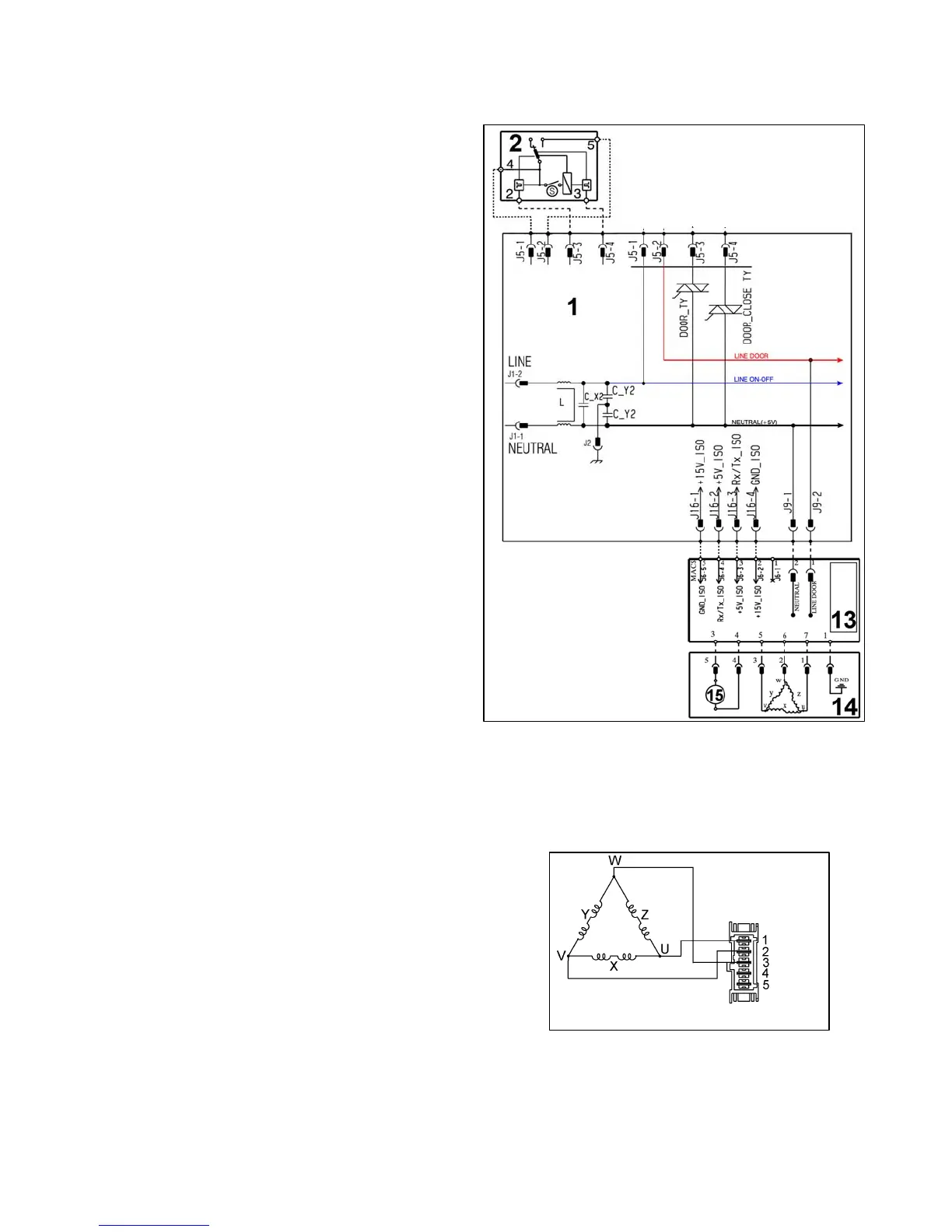

10.15 Three-phase asynchronous motor - Inverter
10.15.1 General characteristics
1. Main circuit board
2. Door safety interlock (with drum light micro-switch)
13. Inverter
14. Motor
X-Y-X = Motor windings
10.15.2 Power supply to motor
Three-phase power is fed by the inverter (13), which sends through the connectors 5-6-7 the three phases
to connectors 1-2-3 on the motor (nodes U-W-V), where the windings (Y-X-Z-) are connected.
The phase shift between the phases is 120° and peak voltage is 310 V.
It is possible to get an idea of the efficiency of
the motor by measuring the resistance of the
coils:
Coil y ohm 5.8
 ±7% (contacts 2-3)
Coil x ohm 5.8
 ±7% (contacts 1-2)
Coil z ohm 5.8
 ±7% (contacts 1-3)

Electrolux WE170P Specifications

General

Door hinge	Left
Water fill	Cold, Hot
Drum volume	67 L
Control type	Buttons, Rotary
Display type	LCD
Loading type	Front-load
Drum material	Stainless steel
Product color	Gray
Built-in display	Yes
Appliance placement	Freestanding
Dispenser tray type	3-way
Drying capacity	- kg
Cycle time (max)	210 min
Washing capacity	8 kg
AquaStop function	No
Spin-drying class	-
Cycle time washing	70 min
Maximum spin speed	- RPM
Minimum spin speed	1400 RPM
Noise level (spin)	75 dB
Noise level (wash)	49 dB
Noise level (drying)	- dB
Number of washing programs	16
Cycle time (quick washing program)	20 min
Connected load	2000 W
AC input voltage	230 - 240 V
AC input frequency	50 - 60 Hz
Energy efficiency scale	A to G
Water consumption per cycle	47 L
Water consumption washing per cycle	65 L
Energy consumption washing per cycle	0.7 kWh
Water consumption washing & drying per cycle	- L
Energy consumption washing & drying per cycle	- kWh

Weight and Dimensions

Depth	624 mm
Width	597 mm
Height	850 mm
Weight	80.5 g
Package depth	701 mm
Package width	630 mm
Package height	900 mm
Package weight	82 g
Depth with door open	1066 mm
