Electrolux WE170P Service Manual

Technical Support - DMM 71/80 599 74 98-60 Rev.00

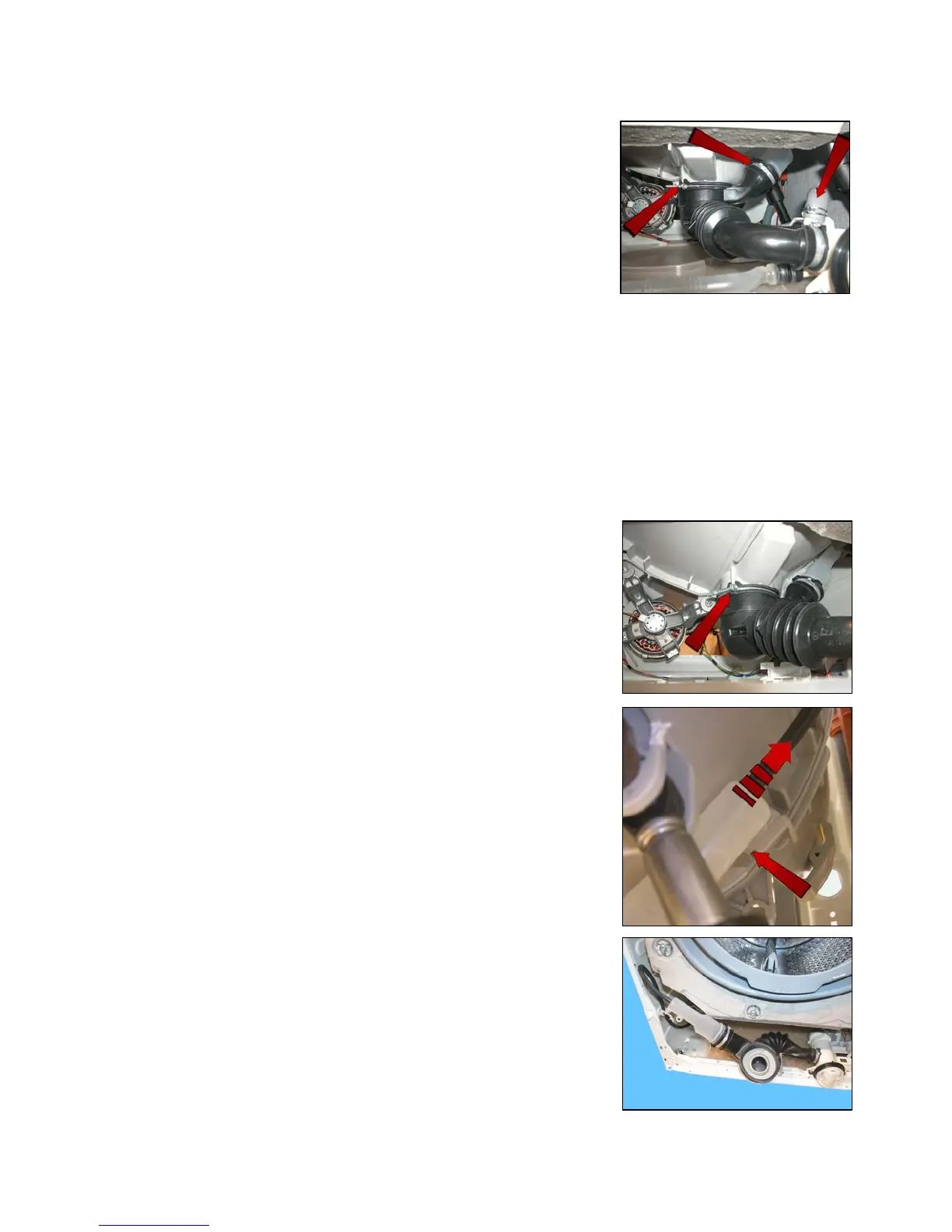

12.4.3 Drain water circuit
 Tub drain pipe
Remove the worktop.
Remove the control panel.
Remove the iron ring securing the bellow seal to the front panel.
Unfasten the screws securing the door safety interlock.
Remove the front panel.
Pull out the main drain pipe (1).
Loosen the screw of the clamp securing the tub drain pipe to the tub (2).
Pull out the pipe from the analogue pressure switch connecting the
pressure chamber.
Release the pressure chamber.
Pull out the tub drain pipe and pull out the pressure chamber (3).
Where clamps are present, you will need to open/break them. When reassembling, use clamps with the same
characteristics.
12.4.4 Pressure chamber
Remove the worktop.
Remove the control panel.
Remove the iron ring securing the bellow seal to the front panel.
Unfasten the screws securing the door safety interlock.
Remove the front panel.
Pull out the pipe from the analogue pressure switch and hooks securing it
to the welded tub.
Unfasten the screw in the clamp that fixes the drain pipe to the welded tub
and remove it from its position, pulling it out.
Push the hook (1) while at the same time lifting the chamber (2) from the
support securing it to the tub.
Turn the chamber under the tub and pull it out.
1
1
1
2
3
2
1

Electrolux WE170P Specifications

General

Door hinge	Left
Water fill	Cold, Hot
Drum volume	67 L
Control type	Buttons, Rotary
Display type	LCD
Loading type	Front-load
Drum material	Stainless steel
Product color	Gray
Built-in display	Yes
Appliance placement	Freestanding
Dispenser tray type	3-way
Drying capacity	- kg
Cycle time (max)	210 min
Washing capacity	8 kg
AquaStop function	No
Spin-drying class	-
Cycle time washing	70 min
Maximum spin speed	- RPM
Minimum spin speed	1400 RPM
Noise level (spin)	75 dB
Noise level (wash)	49 dB
Noise level (drying)	- dB
Number of washing programs	16
Cycle time (quick washing program)	20 min
Connected load	2000 W
AC input voltage	230 - 240 V
AC input frequency	50 - 60 Hz
Energy efficiency scale	A to G
Water consumption per cycle	47 L
Water consumption washing per cycle	65 L
Energy consumption washing per cycle	0.7 kWh
Water consumption washing & drying per cycle	- L
Energy consumption washing & drying per cycle	- kWh

Weight and Dimensions

Depth	624 mm
Width	597 mm
Height	850 mm
Weight	80.5 g
Package depth	701 mm
Package width	630 mm
Package height	900 mm
Package weight	82 g
Depth with door open	1066 mm
