Electrolux WE170P Service Manual

Technical Support - DMM 66/80 599 74 98-60 Rev.00

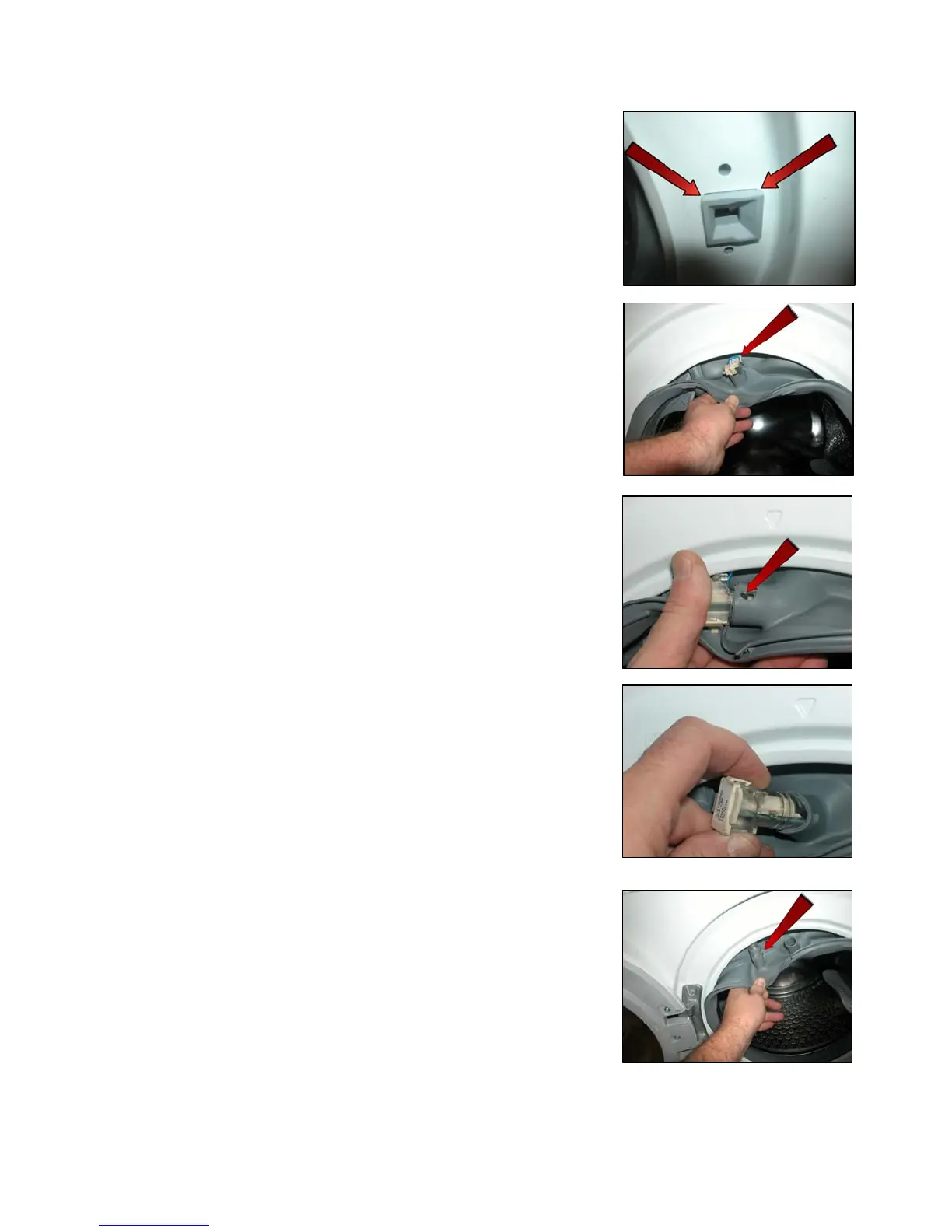

To reassemble the door safety interlock, repeat the same tasks in reverse order.
Before tightening the screws to secure the door safety interlock to the front
panel, make sure the flange is positioned properly on the outside as
indicated by the arrows.
Tighten the screws at a torque of 2.5 Nm.
12.3.3 Drum light
Remove the iron ring securing the bellow seal to the unit.
Remove the part of the bellow seal concerned from the unit.
Remove the wiring from the lamp holder.
Take out the hook securing it to the bellow seal.
Take the lamp out of its seat.
12.3.4 Bellow seal
Remove the iron ring securing the bellow seal to the unit.
Release the bellows seal from the front panel.
Take the drum light out of its seat.
Take the seal out of the welded tub
(take care as the seal is held in position by a snap ring).
When reassembling the seal.
Lubricate with liquid soap the part where the tub is inserted.
Make sure the references are aligned.
Reassemble the snap ring between the door bellow seal and the tub.
Reassemble the iron ring between the door bellow seal and the cabinet.

Electrolux WE170P Specifications

General

Door hinge	Left
Water fill	Cold, Hot
Drum volume	67 L
Control type	Buttons, Rotary
Display type	LCD
Loading type	Front-load
Drum material	Stainless steel
Product color	Gray
Built-in display	Yes
Appliance placement	Freestanding
Dispenser tray type	3-way
Drying capacity	- kg
Cycle time (max)	210 min
Washing capacity	8 kg
AquaStop function	No
Spin-drying class	-
Cycle time washing	70 min
Maximum spin speed	- RPM
Minimum spin speed	1400 RPM
Noise level (spin)	75 dB
Noise level (wash)	49 dB
Noise level (drying)	- dB
Number of washing programs	16
Cycle time (quick washing program)	20 min
Connected load	2000 W
AC input voltage	230 - 240 V
AC input frequency	50 - 60 Hz
Energy efficiency scale	A to G
Water consumption per cycle	47 L
Water consumption washing per cycle	65 L
Energy consumption washing per cycle	0.7 kWh
Water consumption washing & drying per cycle	- L
Energy consumption washing & drying per cycle	- kWh

Weight and Dimensions

Depth	624 mm
Width	597 mm
Height	850 mm
Weight	80.5 g
Package depth	701 mm
Package width	630 mm
Package height	900 mm
Package weight	82 g
Depth with door open	1066 mm
