Electrolux WE170P Service Manual

8
3 Control panel
3.1 General characteristics

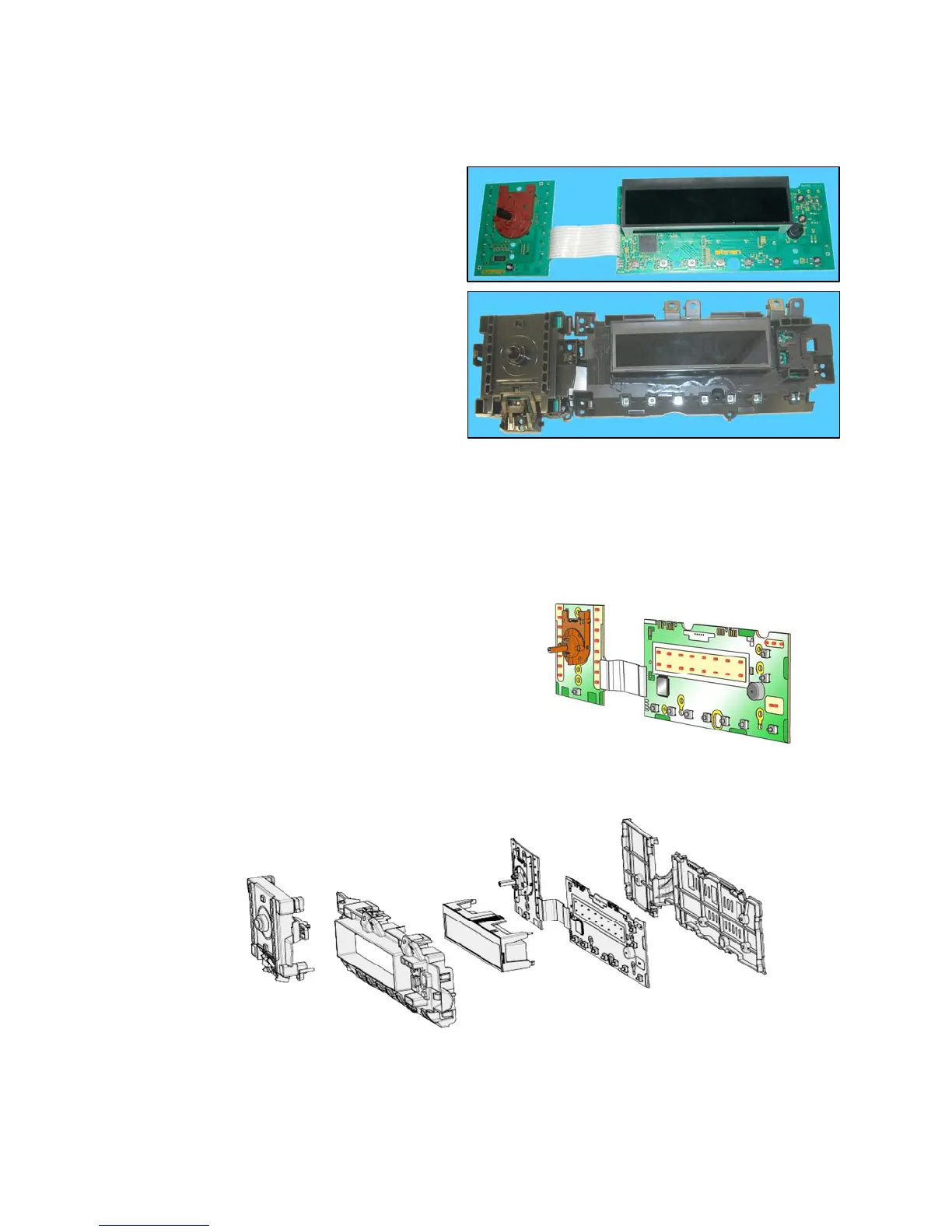

 The control/display circuit board, inserted in
a plastic box, secured to the control panel
(the figure illustrates: the display board with
the side socket in which the selector is
fixed, connected together by a flat cable,
and the display board assembly).
 The main circuit board is positioned at the rear of the appliance, receives commands from the display
board, powers the electrical components as well as communicating with the motor control board
(Inverter).
Positioning of LEDs and buttons
 Display board assembly, exploded view
1. Selector board protection
2. Display board protection
3. LCD display
4. Display board and selector board
5. Rear protection
1
2
3
4
5

Electrolux WE170P Specifications

General

Door hinge	Left
Water fill	Cold, Hot
Drum volume	67 L
Control type	Buttons, Rotary
Display type	LCD
Loading type	Front-load
Drum material	Stainless steel
Product color	Gray
Built-in display	Yes
Appliance placement	Freestanding
Dispenser tray type	3-way
Drying capacity	- kg
Cycle time (max)	210 min
Washing capacity	8 kg
AquaStop function	No
Spin-drying class	-
Cycle time washing	70 min
Maximum spin speed	- RPM
Minimum spin speed	1400 RPM
Noise level (spin)	75 dB
Noise level (wash)	49 dB
Noise level (drying)	- dB
Number of washing programs	16
Cycle time (quick washing program)	20 min
Connected load	2000 W
AC input voltage	230 - 240 V
AC input frequency	50 - 60 Hz
Energy efficiency scale	A to G
Water consumption per cycle	47 L
Water consumption washing per cycle	65 L
Energy consumption washing per cycle	0.7 kWh
Water consumption washing & drying per cycle	- L
Energy consumption washing & drying per cycle	- kWh

Weight and Dimensions

Depth	624 mm
Width	597 mm
Height	850 mm
Weight	80.5 g
Package depth	701 mm
Package width	630 mm
Package height	900 mm
Package weight	82 g
Depth with door open	1066 mm
