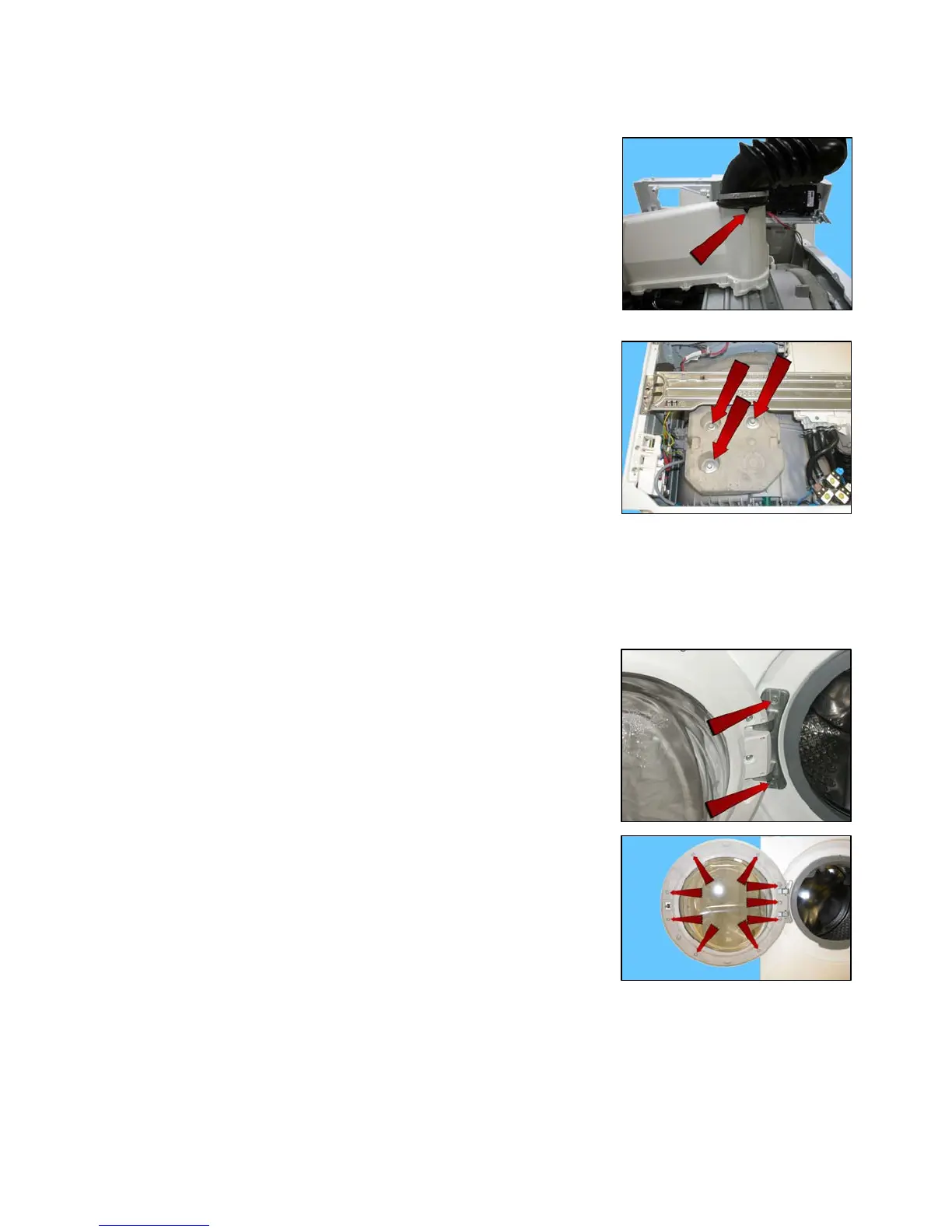

12.2.7 Detergent fill pipe
Remove the worktop.
Remove the control panel.
Remove the detergent tray.
Pull out the pipe from the detergent container after breaking/loosening the
clamp between the detergent container and the detergent loading pipe.
When reassembling, use a new clamp with the same characteristics.
The size of the clamp to use is 65.5 mm.
When introducing the pipe into the container, make sure the two references
are aligned.
12.2.8 Upper counterweight
Remove the worktop.
Remove the three screws that secure it to the welded tub.
When reassembling:
If the tub assembly is new, tighten the screws at a torque of 20 Nm.
If the tub assembly is not new, align with the existing thread and tighten the
screws at a torque of 15 Nm.
12.3 Accessing the front part
From the front it is possible to access the following components:
1. Door and Door Hinge
2. Door safety interlock
3. Drum light
4. Bellow seal
5. Blade
6. Front panel
12.3.1 Door hinge - Door
To replace the hinge, loosen the screws securing it to the cabinet.
To access the door, loosen the screws joining the two front and rear door
frames together.

Electrolux WE170P Specifications

General

Door hinge	Left
Water fill	Cold, Hot
Drum volume	67 L
Control type	Buttons, Rotary
Display type	LCD
Loading type	Front-load
Drum material	Stainless steel
Product color	Gray
Built-in display	Yes
Appliance placement	Freestanding
Dispenser tray type	3-way
Drying capacity	- kg
Cycle time (max)	210 min
Washing capacity	8 kg
AquaStop function	No
Spin-drying class	-
Cycle time washing	70 min
Maximum spin speed	- RPM
Minimum spin speed	1400 RPM
Noise level (spin)	75 dB
Noise level (wash)	49 dB
Noise level (drying)	- dB
Number of washing programs	16
Cycle time (quick washing program)	20 min
Connected load	2000 W
AC input voltage	230 - 240 V
AC input frequency	50 - 60 Hz
Energy efficiency scale	A to G
Water consumption per cycle	47 L
Water consumption washing per cycle	65 L
Energy consumption washing per cycle	0.7 kWh
Water consumption washing & drying per cycle	- L
Energy consumption washing & drying per cycle	- kWh

Weight and Dimensions

Depth	624 mm
Width	597 mm
Height	850 mm
Weight	80.5 g
Package depth	701 mm
Package width	630 mm
Package height	900 mm
Package weight	82 g
Depth with door open	1066 mm
