Electrolux WE170P Service Manual

9

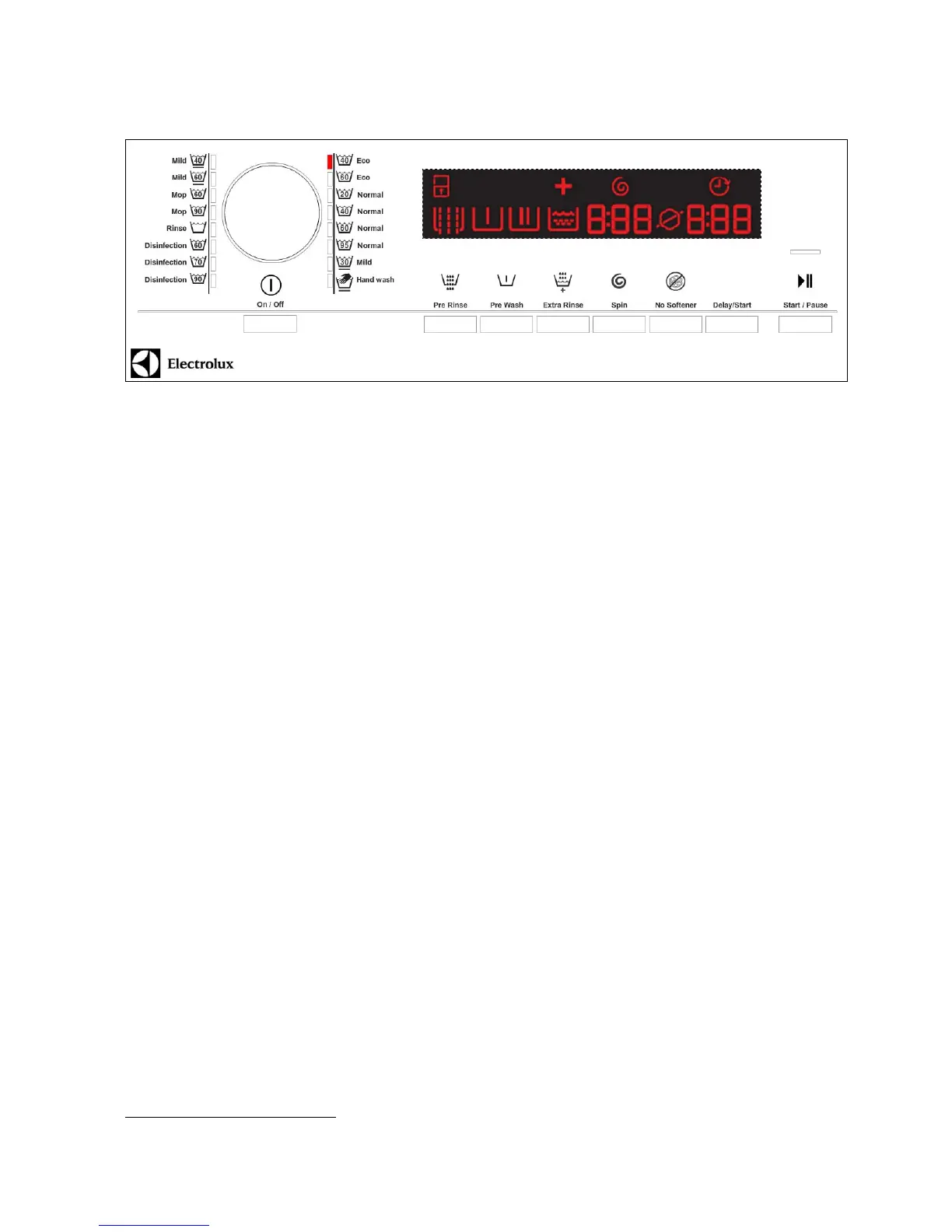

3.2 General Characteristics and Control Panel
Application pictures
1
:
The main characteristics are:
 Hi-fi selector with 16 LEDs (positions) associated;
 On/Off mechanical tact-switch button always on board;
 7 function buttons:
o Pre rinse button;
o Pre wash button;
o 2 option buttons;
o Spin time button;
o Delay start button;
o Start/pause button with 1 associated LED;
 Small LCD custom display, negative red;
 All the LEDs are red.
3.3 Programme selector knob
Refer to “Functionalities” chapter for a detailed description of Hi-fi selector usage.
3.4 Pushbuttons
3.4.1 On/off button
Refer to “Functionalities” chapter for a detailed description of On/Off usage.
3.4.2 Spin time button
The spin time is initially set to default value for that program. Each time the related button is pressed, the
time value is decreased by following pre-defined steps: 6m, 4m, 2m, 45s, 30s , 15s, 10s, 5s; once reached
the minimum allowed time (5 seconds) it restarts from the maximum time (configurable also on selector).
3.4.3 Option buttons
The four option buttons without associated LED are used to select:
 Pre Rinse
 Pre Wash
 Extra Rinse
 No Softner
1
Remark: the pictures are only demonstrative, not in the final graphical release.

Electrolux WE170P Specifications

General

Door hinge	Left
Water fill	Cold, Hot
Drum volume	67 L
Control type	Buttons, Rotary
Display type	LCD
Loading type	Front-load
Drum material	Stainless steel
Product color	Gray
Built-in display	Yes
Appliance placement	Freestanding
Dispenser tray type	3-way
Drying capacity	- kg
Cycle time (max)	210 min
Washing capacity	8 kg
AquaStop function	No
Spin-drying class	-
Cycle time washing	70 min
Maximum spin speed	- RPM
Minimum spin speed	1400 RPM
Noise level (spin)	75 dB
Noise level (wash)	49 dB
Noise level (drying)	- dB
Number of washing programs	16
Cycle time (quick washing program)	20 min
Connected load	2000 W
AC input voltage	230 - 240 V
AC input frequency	50 - 60 Hz
Energy efficiency scale	A to G
Water consumption per cycle	47 L
Water consumption washing per cycle	65 L
Energy consumption washing per cycle	0.7 kWh
Water consumption washing & drying per cycle	- L
Energy consumption washing & drying per cycle	- kWh

Weight and Dimensions

Depth	624 mm
Width	597 mm
Height	850 mm
Weight	80.5 g
Package depth	701 mm
Package width	630 mm
Package height	900 mm
Package weight	82 g
Depth with door open	1066 mm
