Electrolux WE170P Service Manual

Technical Support - DMM 77/80 599 74 98-60 Rev.00

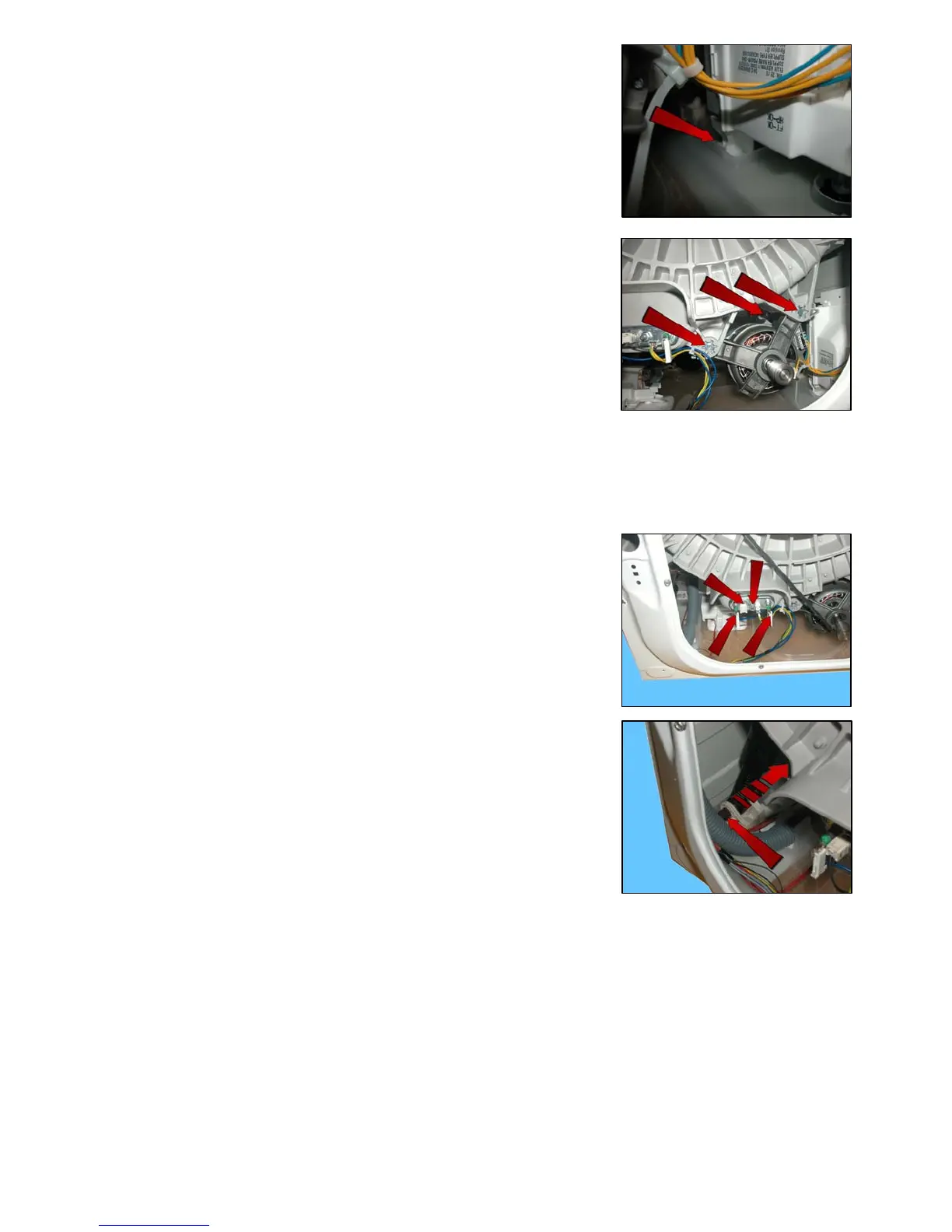

When repositioning the inverter in its seat, pay attention that the hook is
inserted in its position in the crosspiece.
12.6.4 Motor
Remove the back panel.
Remove the belt.
Disconnect the connectors: for the power supply and earthing.
Loosen the two front fastening screws (1) and the rear ones (2).
When reassembling, restore the connections.
If the clamp securing the wiring to the motor breaks, replace it with a new one.
Tighten the screws at a torque of 5 Nm.
12.6.5 Heating element
Remove the back panel.
Disconnect the connectors of the heating element (1) and NTC probe (2).
Loosen the nut (3) and pull it out.
Tighten the nut at a torque of 4 Nm.
12.6.6 Rear shock absorber
Remove the back panel.
To take the pins out of their seats, push the locking tooth and at the same time
remove it with pliers.
Perform the same operations for the other pin.
Take the shock absorber out.
1
1
2
1
1
2
3

Electrolux WE170P Specifications

General

Door hinge	Left
Water fill	Cold, Hot
Drum volume	67 L
Control type	Buttons, Rotary
Display type	LCD
Loading type	Front-load
Drum material	Stainless steel
Product color	Gray
Built-in display	Yes
Appliance placement	Freestanding
Dispenser tray type	3-way
Drying capacity	- kg
Cycle time (max)	210 min
Washing capacity	8 kg
AquaStop function	No
Spin-drying class	-
Cycle time washing	70 min
Maximum spin speed	- RPM
Minimum spin speed	1400 RPM
Noise level (spin)	75 dB
Noise level (wash)	49 dB
Noise level (drying)	- dB
Number of washing programs	16
Cycle time (quick washing program)	20 min
Connected load	2000 W
AC input voltage	230 - 240 V
AC input frequency	50 - 60 Hz
Energy efficiency scale	A to G
Water consumption per cycle	47 L
Water consumption washing per cycle	65 L
Energy consumption washing per cycle	0.7 kWh
Water consumption washing & drying per cycle	- L
Energy consumption washing & drying per cycle	- kWh

Weight and Dimensions

Depth	624 mm
Width	597 mm
Height	850 mm
Weight	80.5 g
Package depth	701 mm
Package width	630 mm
Package height	900 mm
Package weight	82 g
Depth with door open	1066 mm
