Preparing
18
Projection Distance and Lens Shift Maximum Values
The size of the projection increases as the projector is moved away from the screen. Use the following table
to setup the projector so that it projects at the optimum size. The values given here are for your reference only.
You can also adjust the position by projecting using lens shift.
s
p.33
The maximum lens shift adjustment values are shown in the following table.

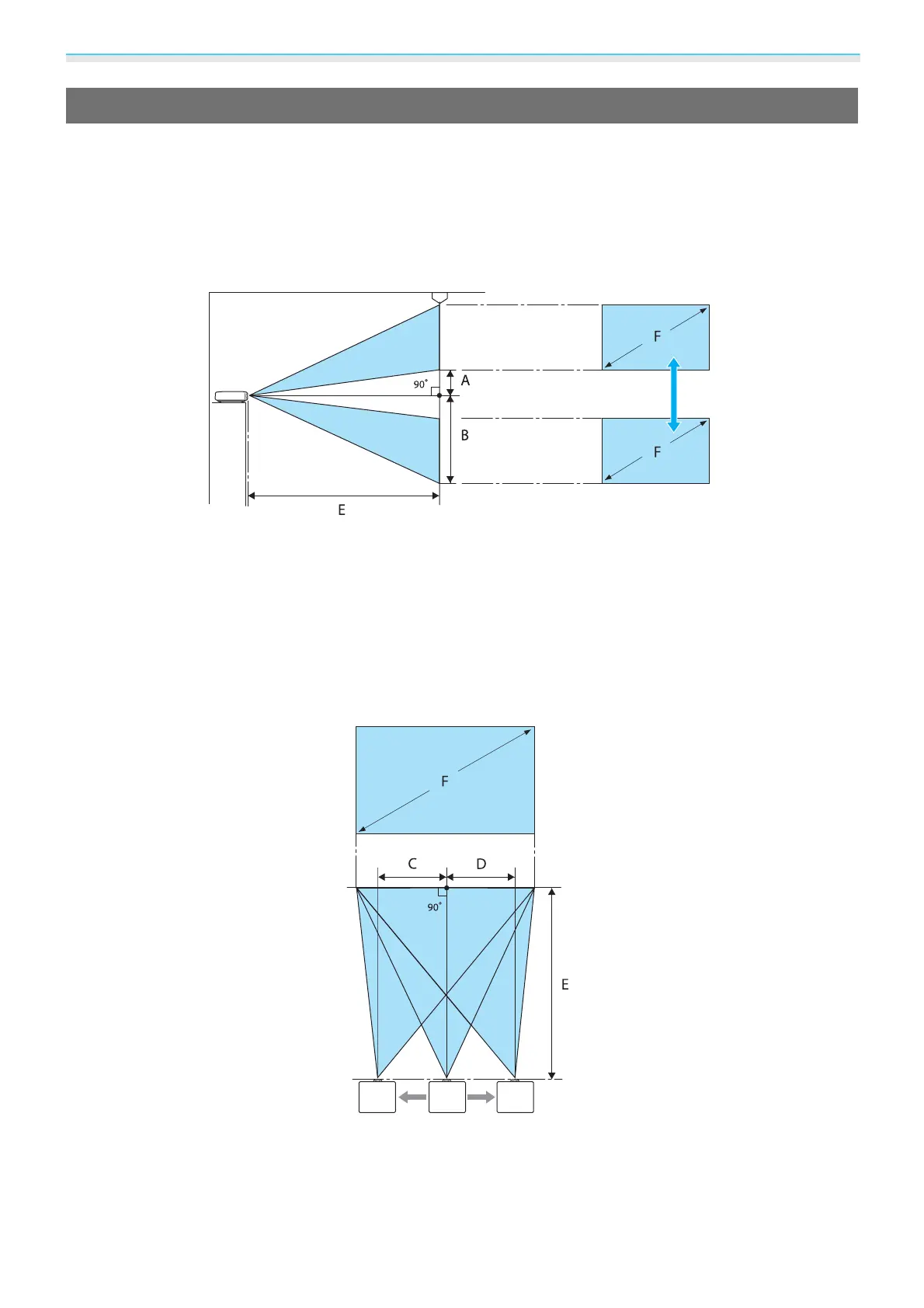

When adjusting the projection position vertically in lens shift
A : Distance from the center of the lens to the bottom edge of the projected image (when lens shift is raised
to its highest level)
B : Distance from the center of the lens to the bottom edge of the projected image (when lens shift is lowered
to its lowest level)
E : Projection distance from the projector to the screen
F : Size of the projected image
When adjusting the projection position horizontally in lens shift
C : Lens center movement distance when the projector is moved (when lens shift is set to maximum right)
D : Lens center movement distance when the projector is moved (when lens shift is set to maximum left)
E : Projection distance from the projector to the screen
F : Size of the projected image
