Preparing
7
Name Function
g
Air exhaust vent
Exhaust vent for air used to cool the projector internally.
Caution
While projecting, do not put your face or hands near the air exhaust vent,
and do not place objects that may become warped or damaged by heat near
the vent. Hot air from the air exhaust vent could cause burns, warping, or
accidents to occur.

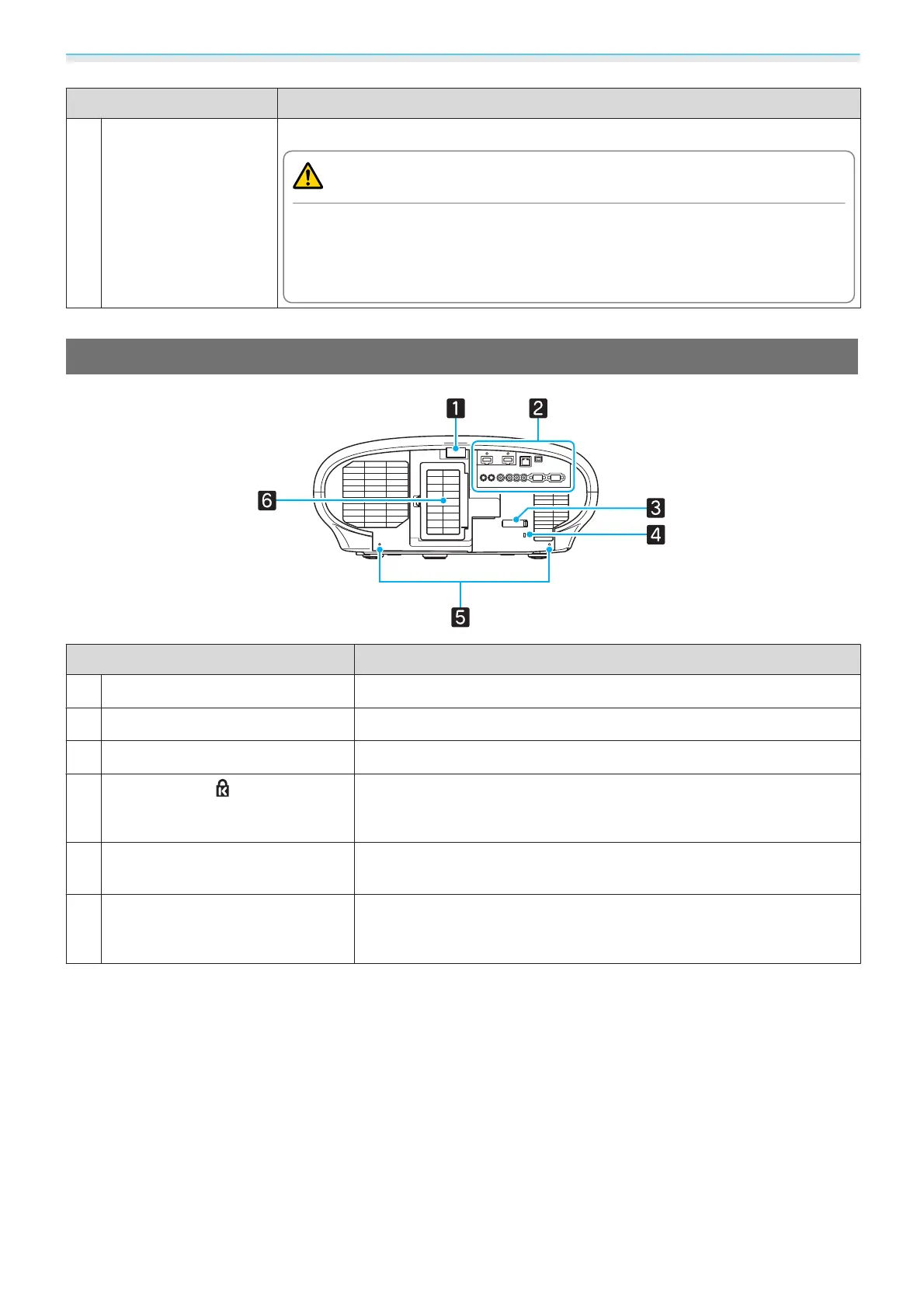

Rear
Name Function
a
Remote receiver
Receives signals from the remote control. s p.25
b
Interface panel
Provides ports and so on for connecting external equipment. s p.8
c
Cable clamp
Secures the cables. s p.24
d
Security slot ( )
The security slot compatible with the MicroSaver security system man-
ufactured by Kensington. For more details, visit the homepage of Ken-
sington at http://www.kensington.com/.
e
Screw holes to fix the cable cov-
er
Screw holes to fix the cable cover in place. s p.20
f
Air intake vent/Air filter cover
Intake vent for air used to cool the projector internally.
When cleaning or replacing the air filter, open this cover and remove
the air filter.
s p.113
